17051332203 by: HARTING Technology Group

Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle,

Part Details for 17051332203 by HARTING Technology Group

Overview of 17051332203 by HARTING Technology Group

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for 17051332203

Part # Distributor Description Stock Price Buy
DISTI # 01C3681
Newark Hard Metric Connector, Plug, 133 Position, Product Range:Har-Bus Hm Series, No. Of Contacts:133Contacts, Pitch Spacing:2Mm, Gender:Header, Contact Termination Type:Through Hole, No. Of Rows:7Rows, Row Pitch:2Mm Rohs Compliant: Yes |Harting 17051332203 Min Qty: 13 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 10 $9.5000
  • 25 $8.6400
  • 50 $8.1800
  • 100 $7.9700
  • 250 $7.1500
  • 500 $6.7400
  • 1,000 $5.9100
$5.9100 / $9.5000 Buy Now
DISTI # 1195-5273-ND
DigiKey CONN HEADER 133POS 2MM PRESS-FIT Min Qty: 1 Lead time: 8 Weeks Container: Tube Temporarily Out of Stock
  • 1 $9.5900
  • 13 $8.6346
  • 26 $8.1339
  • 52 $7.9254
  • 104 $7.7169
  • 260 $6.8826
  • 507 $6.4655
  • 1,001 $5.7147
$5.7147 / $9.5900 Buy Now
DISTI # 617-17-05-133-2203
Mouser Electronics Hard Metric Connectors 133P MALE MODULE CMPCT PCI TYPE B19 RoHS: Compliant 78
  • 1 $9.0000
  • 10 $8.1200
  • 26 $7.7100
  • 104 $6.9500
  • 260 $6.2000
  • 507 $5.8200
  • 1,001 $5.1600
$5.1600 / $9.0000 Buy Now
DISTI # 70736317
RS Backplane Connectors, Wt 6.40 g, 133 Contacts, Har-bus HM Series | HARTING 17051332203 RoHS: Not Compliant Min Qty: 13 Package Multiple: 1 Lead time: 7 Weeks, 0 Days Container: Bulk 0
  • 13 $9.5700
  • 65 $8.8100
  • 130 $7.6600
  • 260 $6.7000
  • 650 $5.7400
$5.7400 / $9.5700 RFQ
Future Electronics 133 (95 + 38 Ground) Position Header, Male Pins Connector 0.079 (2.00mm) Throug RoHS: Compliant pbFree: Yes Min Qty: 13 Package Multiple: 13 Container: Tube 0
Tube
  • 13 $6.2600
  • 39 $6.2100
  • 65 $6.1800
  • 195 $6.1300
  • 325 $6.0800
$6.0800 / $6.2600 Buy Now
DISTI # HRT17051332203
Heilind Electronics HAR-BUS HM MEL., TYP B19, AFS 2, TUBE Americas - 0 in Stock
  • 13 $8.2600
  • 26 $6.8833
  • 65 $6.6613
  • 130 $6.5556
  • 247 $6.4531
$6.4531 / $8.2600 Buy Now
Bristol Electronics   13
RFQ
Quest Components BOARD CONNECTOR, 133 CONTACT(S), 7 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, PRESS FIT TERMINAL, RECEPTACLE 10
  • 1 $8.8620
  • 2 $7.3850
  • 4 $6.4988
$6.4988 / $8.8620 Buy Now
Quest Components BOARD CONNECTOR, 133 CONTACT(S), 7 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, PRESS FIT TERMINAL, RECEPTACLE 2
  • 1 $12.6000
$12.6000 Buy Now
DISTI # 17051332203
TTI Hard Metric Connectors 133P MALE MODULE CMPCT PCI TYPE B19 RoHS: Compliant pbFree: Pb-Free Min Qty: 1 Package Multiple: 1 Container: Bulk Americas - 86
In Stock
  • 1 $8.1500
  • 13 $7.4500
  • 25 $7.3000
  • 50 $7.1600
  • 100 $7.0200
  • 507 $6.8800
$6.8800 / $8.1500 Buy Now
DISTI # 17051332203
TME har-bus HM Mel., Typ B19, AFS 2, Tube Min Qty: 13 0
  • 13 $7.0900
$7.0900 RFQ
Powell Electronics Hard Metric Connectors 133P MALE MODULE CMPCT PCI TYPE B19 Min Qty: 1 1
  • 1 $5.1600
  • 500 $4.9000
$4.9000 / $5.1600 Buy Now
DISTI # 3262482
element14 Asia-Pacific BACKPLANE CONNECTOR, HEADER, 133POS, 2MM RoHS: Compliant Min Qty: 1 Container: Each 0
  • 1 $8.2581
  • 26 $8.1106
  • 39 $7.8968
  • 78 $7.4913
  • 156 $6.7097
$6.7097 / $8.2581 Buy Now
DISTI # 3262482
Farnell BACKPLANE CONNECTOR, HEADER, 133POS, 2MM RoHS: Compliant Min Qty: 1 Lead time: 10 Weeks, 3 Days Container: Each 0
  • 1 $10.3816
  • 10 $7.0625
  • 100 $6.9252
  • 250 $6.7755
  • 500 $6.6383
  • 1,000 $6.5010
$6.5010 / $10.3816 Buy Now

Part Details for 17051332203

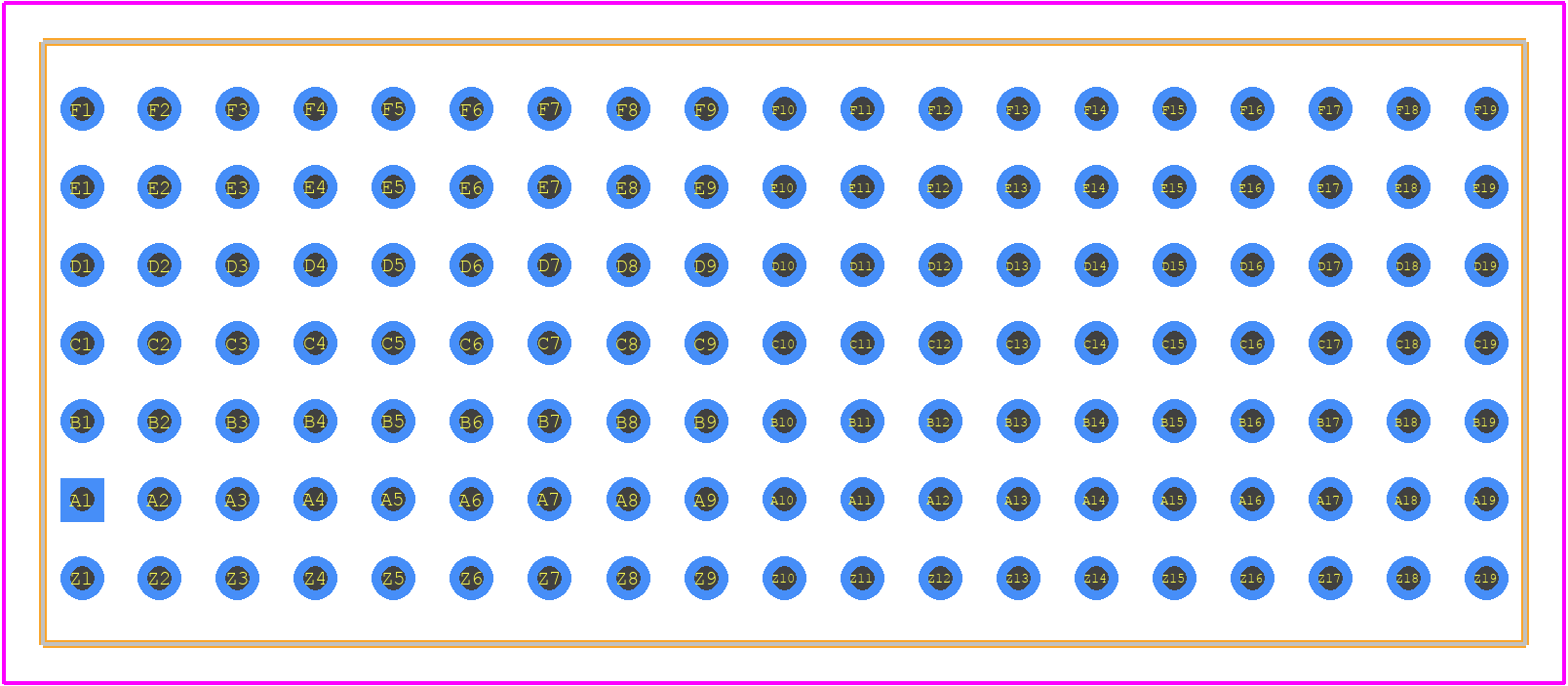

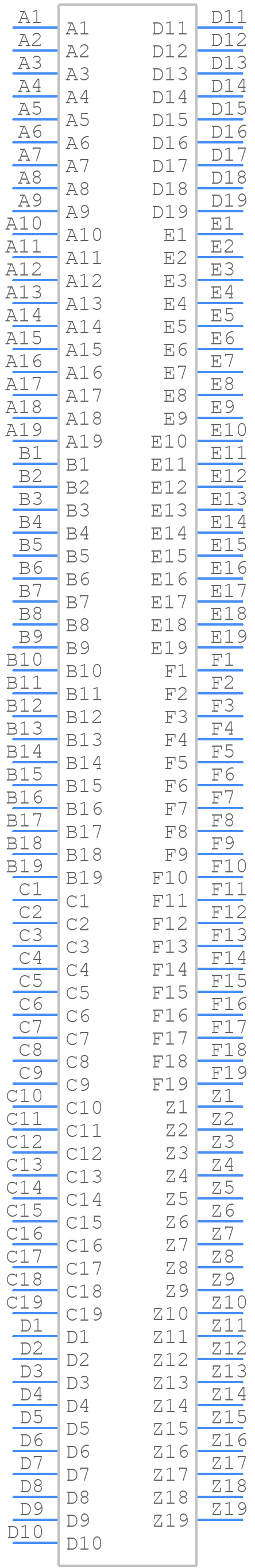

17051332203 CAD Models

17051332203 Part Data Attributes:

17051332203 HARTING Technology Group
Buy Now Datasheet
Compare Parts:
17051332203 HARTING Technology Group Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer HARTING ELECTRONICS GMBH & CO KG
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer HARTING
Additional Feature 38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Body Breadth 0.606 inch
Body Depth 0.528 inch
Body Length 1.496 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination GOLD OVER NICKEL
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 750VAC V
Durability 250 Cycles
Filter Feature NO
IEC Conformance NO
Insertion Force-Max .7506 N
Insulation Resistance 10000000000 Ω
Insulator Material GLASS FILLED POLYETHYLENE
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.079 inch
Mating Contact Row Spacing 0.079 inch
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 7
Number of Rows Loaded 7
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2 mm
Rated Current (Signal) 1 A
Reference Standard UL
Terminal Length 0.146 inch
Terminal Pitch 2 mm
Termination Type PRESS FIT
Total Number of Contacts 133
UL Flammability Code 94V-0
Withdrawl Force-Min .139 N
