5650889-5 by:

ASSY,PIN,EUROCARD,TYPE R,LEAD-

Part Details for 5650889-5 by TE Connectivity

Overview of 5650889-5 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Electronic Manufacturing Entertainment and Gaming

Price & Stock for 5650889-5

Part # Distributor Description Stock Price Buy
DISTI # 42K7354
Newark Din 41612 Pcb Connector, Plug, 96 Way, Product Range:-, No. Of Contacts:96Contacts, Gender:Plug, Pitch Spacing:2.54Mm, No. Of Rows:3 Row, Rows Loaded:A + B + C, Contact Plating:Gold Plated Contacts, Contact Material:Copper Alloy Rohs Compliant: Yes |Amp Te Connectivity 5650889-5 Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 27
  • 1 $1.0900
  • 10 $1.0900
  • 25 $1.0900
  • 50 $1.0900
  • 100 $1.0900
  • 250 $1.0900
$1.0900 Buy Now
DISTI # A32857-ND
DigiKey CONN DIN PLUG 96POS PCB GOLD Min Qty: 1 Lead time: 15 Weeks Container: Bulk 4104
In Stock
  • 1 $6.5800
  • 30 $5.6123
  • 120 $5.1597
  • 1,020 $4.2847
$4.2847 / $6.5800 Buy Now
DISTI # 5650889-5
Avnet Americas Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole - Bulk (Alt: 5650889-5) RoHS: Compliant Min Qty: 30 Package Multiple: 1 Lead time: 10 Weeks, 2 Days Container: Bulk 30
  • 30 $4.2423
  • 40 $4.1228
  • 70 $4.0033
  • 150 $3.8838
  • 300 $3.7643
  • 1,500 $3.6448
  • 3,000 $3.5253
$3.5253 / $4.2423 Buy Now
DISTI # 42K7354
Avnet Americas Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole - Bulk (Alt: 42K7354) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 5 Days Container: Bulk 27 Partner Stock
  • 1 $7.4700
  • 10 $6.4700
  • 25 $6.0900
  • 50 $5.7100
  • 100 $5.6400
$5.6400 / $7.4700 Buy Now
DISTI # 571-5650889-5
Mouser Electronics DIN 41612 Connectors PLUG 96P VERT TYPE R RoHS: Compliant 625
  • 1 $6.3800
  • 10 $6.1700
  • 30 $5.2600
  • 120 $4.9900
  • 270 $4.9300
  • 510 $4.8800
  • 1,020 $4.2900
$4.2900 / $6.3800 Buy Now
DISTI # V99:2348_11637239
Arrow Electronics Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole Box RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 1831 Americas - 2
  • 0 $2.7396
  • 1 $0.6929
$0.6929 / $2.7396 Buy Now
Future Electronics 96 Position 2.54 mm Plug Vertical Through Hole Eurocard Type R Connector RoHS: Compliant pbFree: Yes Min Qty: 150 Package Multiple: 150 Lead time: 12 Weeks Container: Box 0
Box
  • 150 $3.9400
  • 300 $3.8700
  • 450 $3.8200
  • 600 $3.7700
$3.7700 / $3.9400 Buy Now
Future Electronics 96 Position 2.54 mm Plug Vertical Through Hole Eurocard Type R Connector RoHS: Compliant pbFree: Yes Min Qty: 600 Package Multiple: 150 Lead time: 12 Weeks Container: Box 0
Box
  • 150 $3.9400
  • 300 $3.8700
  • 450 $3.8200
  • 600 $3.7700
$3.7700 / $3.9400 Buy Now
Future Electronics 96 Position 2.54 mm Plug Vertical Through Hole Eurocard Type R Connector RoHS: Compliant pbFree: Yes Min Qty: 600 Package Multiple: 600 Lead time: 12 Weeks Container: Box 0
Box
  • 150 $3.9400
  • 300 $3.8700
  • 450 $3.8200
  • 600 $3.7700
$3.7700 / $3.9400 Buy Now
DISTI # AMP5650889-5
Heilind Electronics ASSYPINEUROCARDTYPE RLEAD- Americas - 0 in Stock
  • 600 $4.4590
  • 1,680 $4.2167
$4.2167 / $4.4590 Buy Now
Onlinecomponents.com ASSY,PIN,EUROCARD,TYPE R,LEAD- RoHS: Compliant 618 In Stock
  • 30 $4.6700
  • 60 $4.6200
  • 120 $4.5000
  • 270 $4.4700
  • 510 $4.3200
  • 1,020 $4.1800
  • 2,520 $4.1600
  • 5,010 $4.1400
$4.1400 / $4.6700 Buy Now
DISTI # 60244181
Verical Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole Box RoHS: Compliant Min Qty: 30 Package Multiple: 30 Date Code: 2127 Americas - 600
  • 30 $6.1854
  • 60 $6.0078
  • 120 $5.7471
  • 270 $5.6085
  • 510 $5.3268
$5.3268 / $6.1854 Buy Now
DISTI # 5650889-5
TTI DIN 41612 Connectors PLUG 96P VERT TYPE R RoHS: Compliant pbFree: Pb-Free Min Qty: 1 Package Multiple: 1 Container: Tube Americas - 1150
In Stock
  • 1 $6.3200
  • 25 $5.9500
$5.9500 / $6.3200 Buy Now
DISTI # AMP5650889-5
Interstate Connecting Components ASSYPINEUROCARDTYPE RLEAD- 0
  • 600 $4.4590
  • 1,680 $4.2167
$4.2167 / $4.4590 Buy Now
DISTI # 5650889-5
Avnet Abacus Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole (Alt: 5650889-5) RoHS: Compliant Min Qty: 300 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 5650889-5
Avnet Abacus Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole (Alt: 5650889-5) RoHS: Compliant Min Qty: 600 Package Multiple: 150 Lead time: 10 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 5650889-5
Avnet Asia Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole (Alt: 5650889-5) RoHS: Compliant Min Qty: 150 Package Multiple: 150 Lead time: 5 Weeks, 4 Days 0
  • 150 $4.8053
  • 300 $4.7386
  • 450 $4.6737
  • 750 $4.6105
  • 1,500 $4.4892
  • 3,750 $4.3741
  • 7,500 $4.2647
$4.2647 / $4.8053 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 9
  • 1 $3.8500
  • 100 $2.8800
  • 1,000 $2.5000
$2.5000 / $3.8500 Buy Now
Master Electronics ASSY,PIN,EUROCARD,TYPE R,LEAD- RoHS: Compliant 618 In Stock
  • 30 $4.6700
  • 60 $4.6200
  • 120 $4.5000
  • 270 $4.4700
  • 510 $4.3200
  • 1,020 $4.1800
  • 2,520 $4.1600
  • 5,010 $4.1400
$4.1400 / $4.6700 Buy Now

Part Details for 5650889-5

5650889-5 CAD Models

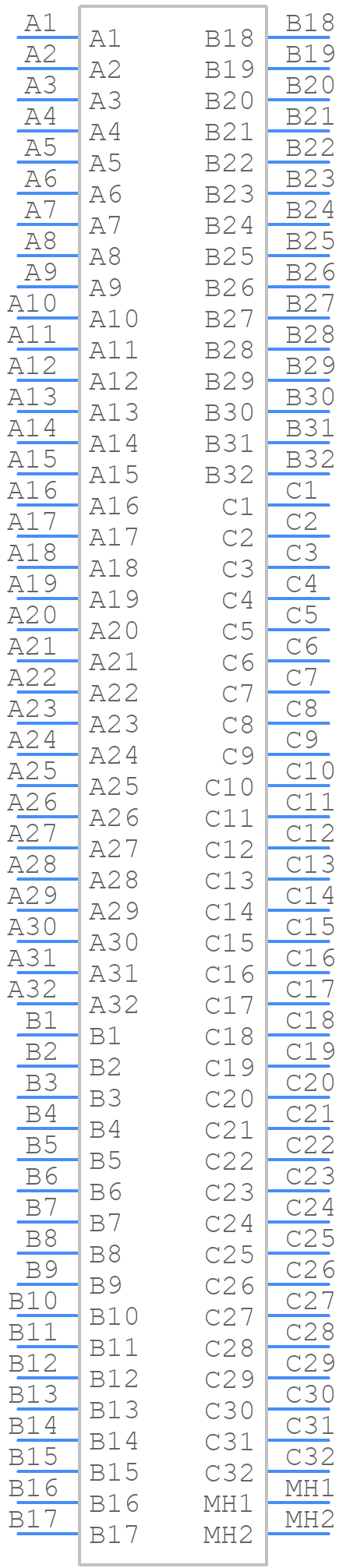

  • Part Symbol

    Part Symbol

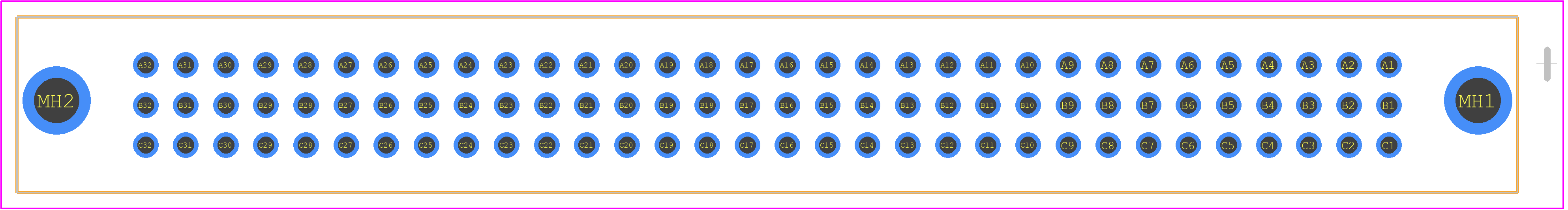

  • Footprint

    footprint

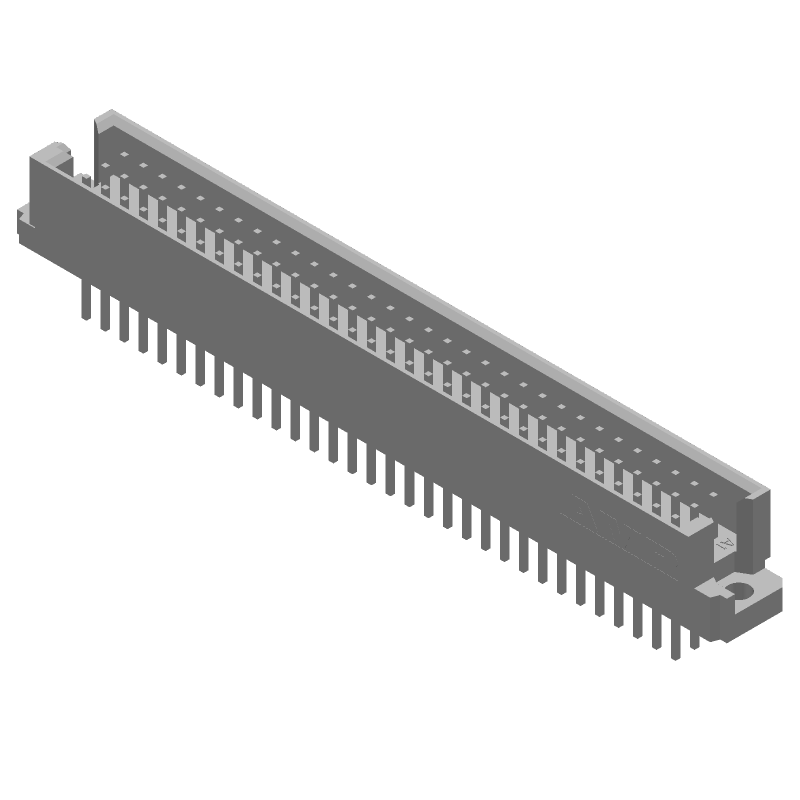

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

5650889-5 Part Data Attributes

Parametric Data
5650889-5 TE Connectivity
Buy Now Datasheet
Compare Parts:
5650889-5 TE Connectivity ASSY,PIN,EUROCARD,TYPE R,LEAD-
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TYCO ELECTRONICS AMP
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 11 Weeks, 5 Days
Samacsys Manufacturer TE Connectivity
Additional Feature STANDARD: DIN 41612, ACTION PIN
Board Mounting Option COMPLIANT BOARDLOCK
Body Breadth 0.437 inch
Body Depth 0.45 inch
Body Length 3.74 inch
Body/Shell Style PLUG
Connector Type BOARD EURO CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination MATTE TIN OVER NICKEL
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Resistance 15 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max .9452 N
Insulation Resistance 10000000000 Ω
Insulator Color GRAY
Insulator Material GLASS FILLED POLYMER
JESD-609 Code e3
MIL Conformance NO
Mains Connector Rating 3A
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Name of Rows Loaded C,B,A
Number Of Connectors ONE
Number Of PCB Rows 3
Number of Ports 1
Number of Rows Loaded 3
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Panel Mount NO
Plating Thickness 30u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3 A
Reference Standard UL
Terminal Length 0.25 inch
Terminal Pitch 2.54 mm
Termination Type PRESS FIT
Total Number of Contacts 96
UL Flammability Code 94V-0
Withdrawl Force-Min .15012 N

Alternate Parts for 5650889-5

This table gives cross-reference parts and alternative options found for 5650889-5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 5650889-5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
70071-420 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle, Amphenol Communications Solutions 5650889-5 vs 70071-420
70070-820 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle, Amphenol Communications Solutions 5650889-5 vs 70070-820
70070-420 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle, Amphenol Communications Solutions 5650889-5 vs 70070-420
1-536067-4 096 EURO TYPE R PIN AP ASSY TE Connectivity 5650889-5 vs 1-536067-4
70071-120 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle, Amphenol Communications Solutions 5650889-5 vs 70071-120
70071-810 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle, Amphenol Communications Solutions 5650889-5 vs 70071-810
536067-5 096 EURO TYP R PIN AP MFBL ASY TE Connectivity 5650889-5 vs 536067-5
70070-220 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle Amphenol FCi 5650889-5 vs 70070-220
70071-520 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle, Amphenol Communications Solutions 5650889-5 vs 70071-520
70070-720 Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle Amphenol FCi 5650889-5 vs 70070-720
