DS92LV1021AMSA/NOPB by:

16 MHz - 40 MHz 10-Bit Serializer 28-SSOP -40 to 85

Part Details for DS92LV1021AMSA/NOPB by Texas Instruments

Overview of DS92LV1021AMSA/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Available Datasheets

Part # Manufacturer Description Datasheet
DS96174CN/NOPB Rochester Electronics LLC DS96174 - Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16
LM611IM/NOPB Rochester Electronics LLC LM611IM - Operational Amplifier, 7000uV Offset-Max, BIPolar

Price & Stock for DS92LV1021AMSA/NOPB

Part # Distributor Description Stock Price Buy
Rochester Electronics DS92LV1021 - 10 Bit Bus LVDS Serializer and Deserializer RoHS: Compliant Status: Obsolete Min Qty: 1 21
  • 1 $4.8100
  • 25 $4.7200
  • 100 $4.5200
  • 500 $4.3300
  • 1,000 $4.0900
$4.0900 / $4.8100 Buy Now
Win Source Electronics IC SERIALIZER 10BIT 28-SSOP 3550
  • 3 $16.9570
  • 8 $13.9140
  • 12 $13.4790
  • 16 $13.0440
  • 20 $12.6090
  • 27 $11.3050
$11.3050 / $16.9570 Buy Now

Part Details for DS92LV1021AMSA/NOPB

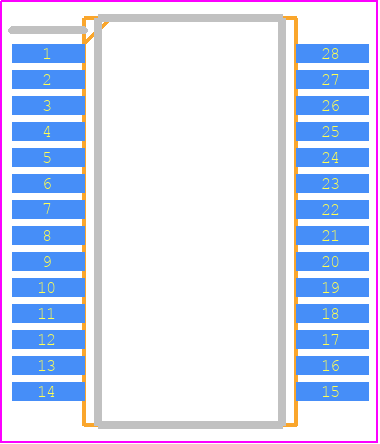

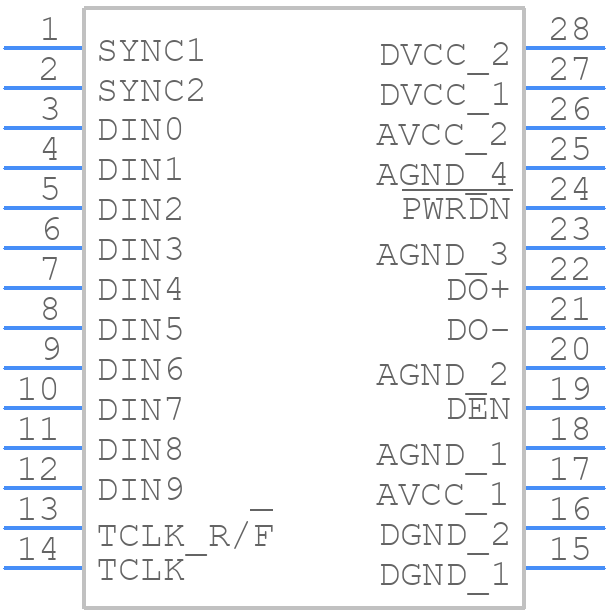

DS92LV1021AMSA/NOPB CAD Models

DS92LV1021AMSA/NOPB Part Data Attributes

DS92LV1021AMSA/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
DS92LV1021AMSA/NOPB Texas Instruments 16 MHz - 40 MHz 10-Bit Serializer 28-SSOP -40 to 85
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SSOP
Package Description SSOP-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Differential Output YES
Driver Number of Bits 1
Input Characteristics STANDARD
Interface IC Type LINE DRIVER
Interface Standard GENERAL PURPOSE
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 10.2 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 28
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP28,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 2 mm
Supply Current-Max 55 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 5.29 mm

Alternate Parts for DS92LV1021AMSA/NOPB

This table gives cross-reference parts and alternative options found for DS92LV1021AMSA/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS92LV1021AMSA/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
MAX9205EAI/V+ Line Driver, 10 Func, 10 Driver, CMOS, PDSO28, ROHS COMPLIANT, SSOP-28 Maxim Integrated Products DS92LV1021AMSA/NOPB vs MAX9205EAI/V+
DS92LV1021TMSA 16 MHz - 40 MHz 10-Bit Serializer 28-SSOP Texas Instruments DS92LV1021AMSA/NOPB vs DS92LV1021TMSA
SN65LV1021DBR 10:1 LVDS Serdes Transmitter 100-400 Mbps 28-SSOP -40 to 85 Texas Instruments DS92LV1021AMSA/NOPB vs SN65LV1021DBR
MAX9205EAI Line Driver, 1 Func, 1 Driver, CMOS, PDSO28, 5.30 MM, 0.65 MM PITCH, SSOP-28 Maxim Integrated Products DS92LV1021AMSA/NOPB vs MAX9205EAI
DS92LV1021TMSAX LINE DRIVER, PDSO28, SSOP-28 Texas Instruments DS92LV1021AMSA/NOPB vs DS92LV1021TMSAX
MAX9205EAI-T Line Driver, 1 Func, 1 Driver, CMOS, PDSO28, 5.30 MM, 0.65 MM PITCH, SSOP-28 Maxim Integrated Products DS92LV1021AMSA/NOPB vs MAX9205EAI-T
SN65LV1021DB 10:1 LVDS Serdes Transmitter 100-400 Mbps 28-SSOP -40 to 85 Texas Instruments DS92LV1021AMSA/NOPB vs SN65LV1021DB
MAX9205EAI/V+T 10-Bit Bus LVDS Serializers, 28-SSOP-5.3_MM, 28 Pins, -40 to 85C Analog Devices Inc DS92LV1021AMSA/NOPB vs MAX9205EAI/V+T
MAX9205EAI/V+T Line Driver, CMOS, PDSO28, Maxim Integrated Products DS92LV1021AMSA/NOPB vs MAX9205EAI/V+T
SN65LV1023DB 10:1 LVDS Serdes Transmitter 300-660 Mbps 28-SSOP -40 to 85 Texas Instruments DS92LV1021AMSA/NOPB vs SN65LV1023DB
Part Number Description Manufacturer Compare
DS92LV1021TMSAX/NOPB 16 MHz - 40 MHz 10-Bit Serializer 28-SSOP Texas Instruments DS92LV1021AMSA/NOPB vs DS92LV1021TMSAX/NOPB
SN65LV1021DBG4 10:1 LVDS Serdes Transmitter 100-400 Mbps 28-SSOP -40 to 85 Texas Instruments DS92LV1021AMSA/NOPB vs SN65LV1021DBG4
SN65LV1023DBR LINE DRIVER, PDSO28, GREEN, PLASTIC, SSOP-28 Texas Instruments DS92LV1021AMSA/NOPB vs SN65LV1023DBR
DS92LV1021TMSAX LINE DRIVER, PDSO28, SSOP-28 Texas Instruments DS92LV1021AMSA/NOPB vs DS92LV1021TMSAX
SN65LV1023DB 10:1 LVDS Serdes Transmitter 300-660 Mbps 28-SSOP -40 to 85 Texas Instruments DS92LV1021AMSA/NOPB vs SN65LV1023DB
SN65LV1021DBRG4 10:1 LVDS Serdes Transmitter 100-400 Mbps 28-SSOP -40 to 85 Texas Instruments DS92LV1021AMSA/NOPB vs SN65LV1021DBRG4
DS92LV1021TMSA/NOPB 16 MHz - 40 MHz 10-Bit Serializer 28-SSOP Texas Instruments DS92LV1021AMSA/NOPB vs DS92LV1021TMSA/NOPB
DS92LV1021TMSA 16 MHz - 40 MHz 10-Bit Serializer 28-SSOP Texas Instruments DS92LV1021AMSA/NOPB vs DS92LV1021TMSA
SN65LV1021DB 10:1 LVDS Serdes Transmitter 100-400 Mbps 28-SSOP -40 to 85 Texas Instruments DS92LV1021AMSA/NOPB vs SN65LV1021DB
