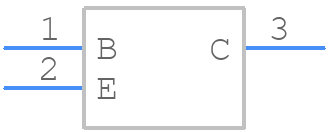

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC817 by NXP Semiconductors
Overview of BC817 by NXP Semiconductors
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for BC817
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 76176 |
|
RFQ | ||
|
|
Bristol Electronics | 12000 |
|
RFQ | ||
|
|
Quest Components | Bipolar Junction Transistor, NPN Type, TO-236AA | 9600 |
|
$0.0400 / $0.2000 | Buy Now |
|
|
ComSIT USA | 45 V, 500 MA NPN GENERAL-PURPOSE TRANSISTOR Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB RoHS: Compliant | Europe - 1680 |
|
RFQ | |
|
|
Win Source Electronics | TRANS 2NPN 45V 0.5A 6TSOP / Trans GP BJT NPN 45V 0.5A 345mW Automotive 3-Pin SOT-23 | 1355679 |
|
$0.0120 / $0.0150 | Buy Now |
Part Details for BC817
BC817 CAD Models
BC817 Part Data Attributes
|
|
BC817
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
BC817
NXP Semiconductors
TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, PLASTIC PACKAGE-3, BIP General Purpose Small Signal
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOT-23 | |
| Package Description | PLASTIC PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | NXP | |
| Collector Current-Max (IC) | 0.5 A | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz | |
| VCEsat-Max | 0.7 V |
