Capacitors / Aluminum Electrolytic Capacitors / ECA1EHG470
Datasheets
ECA1EHG470 by: Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for ECA1EHG470 by Panasonic Electronic Components

Overview of ECA1EHG470 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for ECA1EHG470

Part # Distributor Description Stock Price Buy
DISTI # 17T5002
Newark Aluminum Electrolytic Capacitor, 47Uf, 20%, 25V, Radial, Capacitance:47Μf, Voltage(Dc):25V, Capacitance Tolerance:± 20%, Capacitor Terminals:Radial Leaded, Lifetime @ Temperature:1000 Hours @ 105°C, Polarity:Polar, Lead Spacing:2Mm Rohs Compliant: Yes |Panasonic ECA1EHG470 Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 18463
  • 1 $0.0720
  • 10 $0.0720
  • 25 $0.0720
  • 50 $0.0720
  • 100 $0.0660
$0.0660 / $0.0720 Buy Now
DISTI # 62W6125
Newark Aluminium Electrolytic Capacitor, Aec-Q200 Nhg Series, 47 - F, - 20%, 25 V, 5 Mm, Radial Leaded Rohs Compliant: Yes |Panasonic ECA1EHG470 Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $0.1490
  • 250 $0.1330
  • 500 $0.1190
  • 1,000 $0.1070
  • 5,000 $0.0740
$0.0740 / $0.1490 Buy Now
DISTI # ECA-1EHG470
Avnet Americas Aluminum Electrolytic Capacitor, 47 uF, 25 V, ± 20%, 1000 hours @ 105°C, Radial Leaded - Bulk (Alt: ECA-1EHG470) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 21 Weeks, 0 Days Container: Bulk 0
  • 200 $0.0441
  • 400 $0.0432
  • 800 $0.0426
  • 1,200 $0.0413
  • 1,600 $0.0404
  • 2,000 $0.0397
  • 20,000 $0.0389
$0.0389 / $0.0441 Buy Now
DISTI # 17T5002
Avnet Americas Aluminum Electrolytic Capacitor, 47 uF, 25 V, ± 20%, 1000 hours @ 105°C, Radial Leaded - Bulk (Alt: 17T5002) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 0 Days Container: Bulk 1591 Partner Stock
  • 1 $0.2250
  • 10 $0.1230
  • 25 $0.1060
  • 50 $0.0880
  • 100 $0.0700
$0.0700 / $0.2250 Buy Now
Future Electronics 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C RoHS: Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 200 Lead time: 24 Weeks Container: Bag 0
Bag
  • 200 $0.0614
  • 1,000 $0.0579
  • 4,000 $0.0550
  • 10,000 $0.0532
  • 25,000 $0.0498
$0.0498 / $0.0614 Buy Now
Quest Components Capacitor, Aluminium, 47uf, 25V, 20±% 8303
  • 1 $0.1200
  • 668 $0.0540
  • 3,705 $0.0390
$0.0390 / $0.1200 Buy Now
Quest Components Capacitor, Aluminium, 47uf, 25V, 20±% (Also Known As: ECA-1EHG470) 8303
  • 1 $0.1200
  • 668 $0.0540
  • 3,705 $0.0390
$0.0390 / $0.1200 Buy Now
DISTI # ECA1EHG470
TME Capacitor: electrolytic, THT, 47uF, 25VDC, Ø5x11mm, Pitch: 2mm, ±20% Min Qty: 10 0
  • 10 $0.1250
  • 50 $0.1020
  • 100 $0.0950
  • 200 $0.0860
  • 400 $0.0830
$0.0830 / $0.1250 RFQ
Chip 1 Exchange INSTOCK 19744
RFQ
DISTI # ECA1EHG470
Avnet Abacus Aluminum Electrolytic Capacitor, 47 uF, 25 V, � 20%, 1000 hours @ 105�C, Radial Leaded (Alt: ECA1EHG470) RoHS: Compliant Min Qty: 6000 Package Multiple: 200 Lead time: 24 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for ECA1EHG470

ECA1EHG470 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

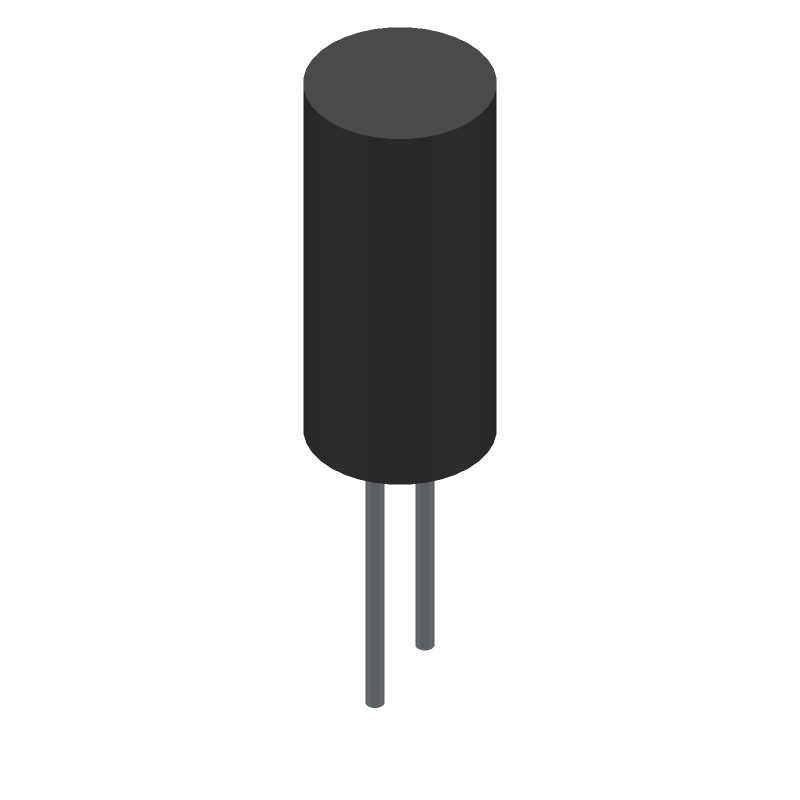

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ECA1EHG470 Part Data Attributes:

Parametric Data
ECA1EHG470 Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ECA1EHG470 Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description RADIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Factory Lead Time 19 Weeks
Samacsys Manufacturer Panasonic
Capacitance 47 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 5 mm
Dielectric Material ALUMINUM (WET)
JESD-609 Code e3
Leakage Current 0.01175 mA
Length 11 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape CYLINDRICAL PACKAGE
Package Style Radial
Packing Method BULK
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 25 V
Reference Standard AEC-Q200
Ripple Current 91 mA
Surface Mount NO
Tan Delta 0.16
Terminal Finish TIN
Terminal Pitch 2 mm
Terminal Shape WIRE

Alternate Parts for ECA1EHG470

This table gives cross-reference parts and alternative options found for ECA1EHG470. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ECA1EHG470, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
RXK470M1EBK-0511S Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED Surge Components Inc ECA1EHG470 vs RXK470M1EBK-0511S
EKMG250ETE470ME11D Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, LEAD FREE Chemi-Con ECA1EHG470 vs EKMG250ETE470ME11D
8470LDM0511LEN1E Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF Fenghua (HK) Electronics Ltd ECA1EHG470 vs 8470LDM0511LEN1E
NRWY470M25V5X11TBF1F CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25V, 47uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT NIC Components Corp ECA1EHG470 vs NRWY470M25V5X11TBF1F
8470LDM0511LEN7E Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF Fenghua (HK) Electronics Ltd ECA1EHG470 vs 8470LDM0511LEN7E
8470LDM0511LEN00 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF Fenghua (HK) Electronics Ltd ECA1EHG470 vs 8470LDM0511LEN00
8470LDM0511LEN1F Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF Fenghua (HK) Electronics Ltd ECA1EHG470 vs 8470LDM0511LEN1F
8470LDM0511LE01J Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF Fenghua (HK) Electronics Ltd ECA1EHG470 vs 8470LDM0511LE01J
8470LDM0511LE040 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF Fenghua (HK) Electronics Ltd ECA1EHG470 vs 8470LDM0511LE040
NRWA470M25V5X11TBSTF Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT NIC Components Corp ECA1EHG470 vs NRWA470M25V5X11TBSTF
