Relays / Power/Signal Relays / HE3621A0510
Datasheets
HE3621A0510 by:

Power/Signal Relay, 1 Form A, SPST, Momentary, 0.01A (Coil), 5VDC (Coil), 50mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, Random, Through Hole-Straight Mount,

Part Details for HE3621A0510 by Littelfuse Inc

Overview of HE3621A0510 by Littelfuse Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for HE3621A0510

Part # Distributor Description Stock Price Buy
DISTI # 05M4138
Newark Relay, Reed, Spst-No, 200V, 0.5A, Tht, Contact Configuration:Spst-No, Coil Voltage:5Vdc, Product Range:He3600 Series, Relay Mounting:Through Hole, Coil Resistance:500Ohm, Switching Current Max:500Ma, Switching Voltage Max:200V Rohs Compliant: Yes |Littelfuse HE3621A0510 Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 6659
  • 1 $1.1700
  • 25 $1.1700
  • 100 $1.1700
$1.1700 Buy Now
DISTI # HE207-ND
DigiKey RELAY REED SPST 500MA 5V Min Qty: 1 Lead time: 13 Weeks Container: Tube 10836
In Stock
  • 1 $2.2300
  • 10 $2.0930
  • 25 $1.8604
  • 50 $1.7674
  • 100 $1.7131
$1.7131 / $2.2300 Buy Now
DISTI # 934-HE3621A0510
Mouser Electronics Reed Relays REED RELAY RoHS: Compliant 9662
  • 1 $2.2000
  • 10 $2.1000
  • 25 $1.6500
  • 100 $1.5400
  • 250 $1.5000
  • 500 $1.4400
  • 700 $1.3400
  • 2,800 $1.3200
$1.3200 / $2.2000 Buy Now
DISTI # 72244599
RS Reed Relay, HE3600 Series, Through Hole, SPST-NO, 5V, 500mA, PC Pin | Littelfuse HE3621A0510 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 752
  • 1 $2.2300
  • 10 $2.1200
  • 25 $2.0100
  • 50 $1.9000
  • 100 $1.7800
$1.7800 / $2.2300 Buy Now
Future Electronics HE3600 Series Subminiature SIP 0.5 A SPST-NO 5 Vdc PCB Mount Reed Relay RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Container: Tube 5947
Tube
  • 1 $1.4800
  • 50 $1.4400
  • 200 $1.4000
  • 750 $1.3700
  • 2,500 $1.3000
$1.3000 / $1.4800 Buy Now
Future Electronics HE3600 Series Subminiature SIP 0.5 A SPST-NO 5 Vdc PCB Mount Reed Relay RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Container: Tube 3475
Tube
  • 1 $1.4800
  • 50 $1.4400
  • 200 $1.4000
  • 750 $1.3700
  • 2,500 $1.3000
$1.3000 / $1.4800 Buy Now
Future Electronics HE3600 Series Subminiature SIP 0.5 A SPST-NO 5 Vdc PCB Mount Reed Relay RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Container: Tube 1230
Tube
  • 1 $0.6450
  • 50 $0.6250
  • 200 $0.5950
  • 500 $0.5800
  • 2,000 $0.5350
$0.5350 / $0.6450 Buy Now
Bristol Electronics   35
RFQ
Quest Components RELAY REED SIP SPST 5V W/DIODE 2
  • 1 $2.2295
  • 3 $1.7836
$1.7836 / $2.2295 Buy Now
DISTI # HE3621A0510
TTI Reed Relays REED RELAY RoHS: Compliant Min Qty: 25 Package Multiple: 25 Container: Tube Americas - 90250
In Stock
  • 25 $1.1500
  • 50 $1.1300
  • 100 $1.1000
  • 150 $1.0600
  • 250 $1.0400
  • 500 $1.0100
  • 2,000 $0.9900
$0.9900 / $1.1500 Buy Now
DISTI # HE3621A0510
TME Relay: reed switch, SPST-NO, Ucoil: 5VDC, 500mA, max.200VDC, 10W Min Qty: 1 143
  • 1 $2.9800
  • 5 $2.0000
  • 25 $1.9300
  • 100 $1.8700
  • 500 $1.8000
$1.8000 / $2.9800 Buy Now
CHIPMALL.COM LIMITED RELAY REED SPST 500MA 5V 250
  • 1 $1.2058
  • 100 $1.1093
$1.1093 / $1.2058 Buy Now
CHIPMALL.COM LIMITED   1051
  • 1 $0.8049
  • 100 $0.7523
$0.7523 / $0.8049 Buy Now
Chips Pulse Industry Limited Purchase Online, Ship Immediately 1261
  • 1 $0.7232
  • 100 $0.6759
$0.6759 / $0.7232 Buy Now
DISTI # 9561927
element14 Asia-Pacific RELAY, REED, SPST-NO, 200V, 0.5A, THT RoHS: Compliant Min Qty: 1 Container: Each 13832
  • 1 $2.3044
  • 10 $2.1576
  • 25 $1.7393
  • 100 $1.6219
  • 250 $1.5925
$1.5925 / $2.3044 Buy Now
DISTI # 2118369
Farnell   RoHS: Compliant Min Qty: 1 Lead time: 8 Weeks, 2 Days Container: Each 6659
  • 1 $3.3218
  • 10 $3.1470
  • 25 $2.6974
  • 50 $2.6225
  • 100 $2.5351
  • 500 $2.1604
  • 1,000 $2.0231
  • 2,500 $1.9856
$1.9856 / $3.3218 Buy Now
DISTI # 9561927
Farnell RELAY, REED, SPST-NO, 200V, 0.5A, THT RoHS: Compliant Min Qty: 1 Lead time: 14 Weeks, 1 Days Container: Each 7063
  • 1 $2.0730
  • 10 $1.9481
  • 25 $1.7233
  • 50 $1.6484
  • 100 $1.5985
$1.5985 / $2.0730 Buy Now
New Advantage Corporation Flash, 1MX16, 70ns, PDSO48 RoHS: Compliant Min Qty: 1 Package Multiple: 25 39525
  • 75 $2.0400
  • 39,525 $1.9100
$1.9100 / $2.0400 Buy Now
Ozdisan Elektronik RELAY REED 500mA 5VDC SPST-NO (1 Form A) 0
  • 1 $3.5775
  • 700 $3.2523
$3.2523 / $3.5775 RFQ

Part Details for HE3621A0510

HE3621A0510 CAD Models

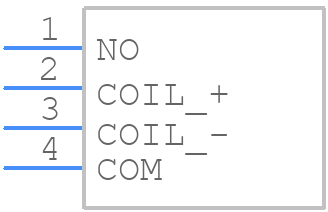

  • Part Symbol

    Part Symbol

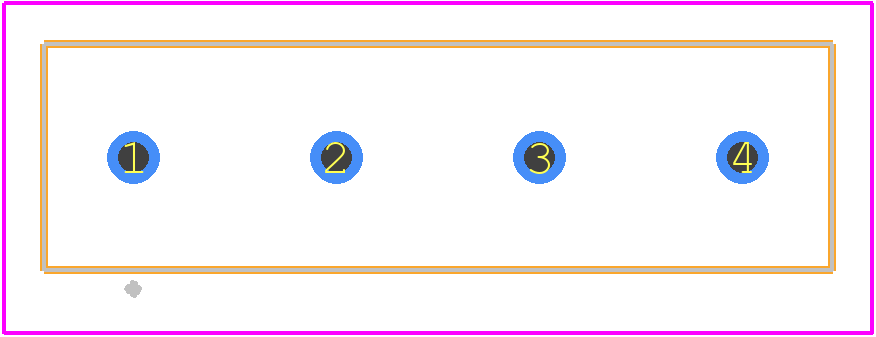

  • Footprint

    footprint

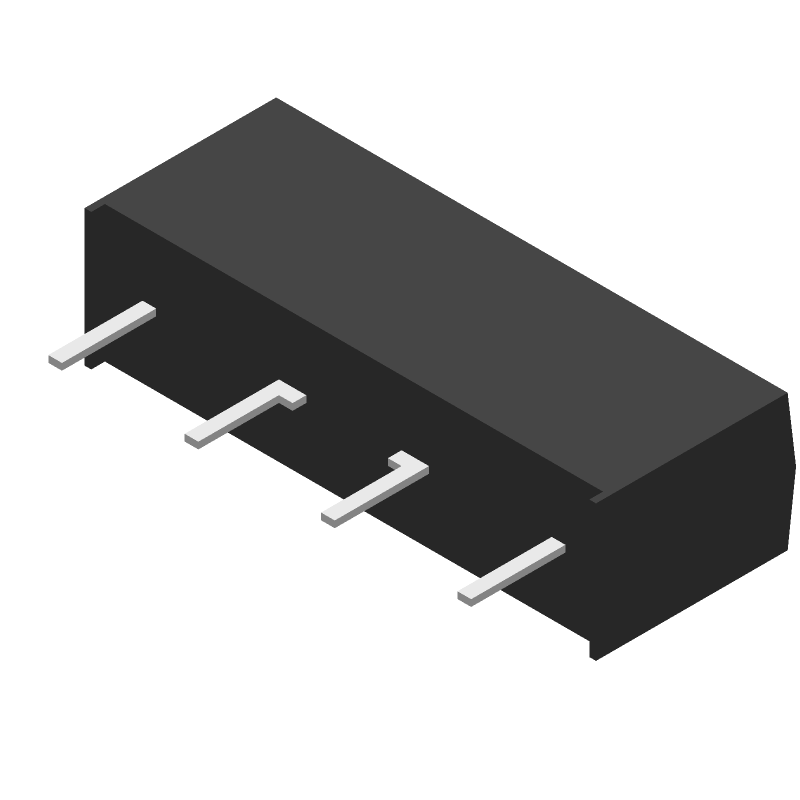

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

HE3621A0510 Part Data Attributes

Parametric Data
HE3621A0510 Littelfuse Inc
Buy Now Datasheet
Compare Parts:
HE3621A0510 Littelfuse Inc Power/Signal Relay, 1 Form A, SPST, Momentary, 0.01A (Coil), 5VDC (Coil), 50mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, Random, Through Hole-Straight Mount,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer LITTELFUSE INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.49.00.50
Samacsys Manufacturer LITTELFUSE
Additional Feature WITH COIL SUPPRESSED DIODE
Body Breadth 5.08 mm
Body Height 7.62 mm
Body Length or Diameter 19.05 mm
Coil Current(DC)-Max 0.01 A
Coil Operate Voltage(DC) 3.75 V
Coil Power 50 mW
Coil Release Voltage(DC) 0.5 V
Coil Resistance 500 Ω
Coil Voltage(DC)-Max 14 V
Coil Voltage-Nom 5 V
Coil/Input Supply Type DC
Contact Current(DC)-Max 0.5 A
Contact (DC) Max Power Rating R Load 10W@200VDC
Contact (DC) Max Rating R Load .5A@200VDC
Contact Resistance 150 mΩ
Contact Voltage(DC)-Max 200 V
Contact/Output Supply Type DC
Input Switching Control Type Random
Insulation Resistance 10000000000 Ω
Mounting Feature THROUGH HOLE-STRAIGHT
Number of Terminals 6
Operate Time 1 ms
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Physical Dimension 19.05mm x 5.08mm x 7.62mm
Reference Standard UL
Relay Action MOMENTARY
Relay Form 1 FORM A
Relay Function SPST
Relay Type POWER/SIGNAL RELAY
Release Time 1 ms
Sealing HERMETICALLY SEALED
Surface Mount NO
Terminal Length 0.002999745999491999 inch
Termination Type SOLDER
