Power Circuits / Linear Regulator ICs / LM2931ADT50R
Datasheets
LM2931ADT50R by:

Very low drop voltage regulators with inhibit function

Part Details for LM2931ADT50R by STMicroelectronics

Overview of LM2931ADT50R by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for LM2931ADT50R

Part # Distributor Description Stock Price Buy
DISTI # 51AC9146
Newark To 251 Dpak Au/Low Drop Volt Reg, Output Type:Fixed, Input Voltage Min:26V, Input Voltage Max:40V, Fixed Output Voltage Nom.:5V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:100Ma, Dropout Voltage Rohs Compliant: Yes |Stmicroelectronics LM2931ADT50R Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3914
  • 1 $1.1900
  • 10 $1.0700
  • 25 $1.0300
  • 50 $0.9540
  • 100 $0.8800
  • 250 $0.8350
  • 500 $0.7540
  • 1,000 $0.5960
$0.5960 / $1.1900 Buy Now
DISTI # 56P8101
Newark Linear Vr |Stmicroelectronics LM2931ADT50R Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 497-1564-1-ND
DigiKey IC REG LINEAR 5V 100MA DPAK Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 9195
In Stock
  • 1 $1.3300
  • 10 $1.1900
  • 25 $1.1292
  • 100 $0.9276
  • 250 $0.8671
  • 500 $0.7663
  • 1,000 $0.6049
  • 2,500 $0.5646
  • 5,000 $0.5364
  • 12,500 $0.5162
$0.5162 / $1.3300 Buy Now
DISTI # LM2931ADT50R
Avnet Americas LDO Regulator Pos 5V 0.1A 3-Pin(2+Tab) DPAK T/R - Tape and Reel (Alt: LM2931ADT50R) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.5097
  • 5,000 $0.4992
  • 10,000 $0.4887
$0.4887 / $0.5097 Buy Now
DISTI # 511-LM2931ADT50R
Mouser Electronics LDO Voltage Regulators 5.0V 100mA Positive RoHS: Compliant 17931
  • 1 $1.0600
  • 10 $0.9580
  • 25 $0.9190
  • 100 $0.7870
  • 250 $0.7350
  • 500 $0.6760
  • 1,000 $0.5540
  • 2,500 $0.5350
  • 5,000 $0.5240
$0.5240 / $1.0600 Buy Now
DISTI # V72:2272_06553357
Arrow Electronics LDO Regulator Pos 5V 0.1A 3-Pin(2+Tab) DPAK T/R Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2310 Container: Cut Strips Americas - 1620
  • 1 $1.0701
  • 10 $0.9735
  • 25 $0.9332
  • 100 $0.7971
  • 250 $0.7157
  • 500 $0.6835
  • 1,000 $0.5126
$0.5126 / $1.0701 Buy Now
DISTI # V79:2366_25933401
Arrow Electronics LDO Regulator Pos 5V 0.1A 3-Pin(2+Tab) DPAK T/R Min Qty: 1 Package Multiple: 1 Date Code: 1838 Americas - 20
  • 1 $0.5015
  • 10 $0.4855
  • 25 $0.4782
  • 100 $0.4503
  • 250 $0.4308
  • 500 $0.4223
  • 1,000 $0.3795
  • 2,500 $0.3750
  • 5,000 $0.3663
  • 12,500 $0.3620
$0.3620 / $0.5015 Buy Now
STMicroelectronics Very low drop voltage regulators with inhibit function RoHS: Compliant Min Qty: 1 17931
  • 1 $1.0400
  • 10 $0.9400
  • 25 $0.9000
  • 100 $0.7700
  • 250 $0.7200
  • 500 $0.6600
$0.6600 / $1.0400 Buy Now
Future Electronics LM2931 Series 100 mA 5 V Fixed Output SMT VLDO Voltage Regulator - TO-252 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Container: Reel 0
Reel
  • 2,500 $0.5050
$0.5050 Buy Now
Future Electronics LM2931 Series 100 mA 5 V Fixed Output SMT VLDO Voltage Regulator - TO-252 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Container: Reel 0
Reel
  • 2,500 $0.5050
$0.5050 Buy Now
Future Electronics LM2931 Series 100 mA 5 V Fixed Output SMT VLDO Voltage Regulator - TO-252 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Container: Reel 0
Reel
  • 2,500 $0.5450
  • 5,000 $0.5350
  • 7,500 $0.5300
  • 12,500 $0.5250
  • 25,000 $0.5050
$0.5050 / $0.5450 Buy Now
DISTI # 69787404
Verical LDO Regulator Pos 5V 0.1A 3-Pin(2+Tab) DPAK T/R Min Qty: 14 Package Multiple: 1 Date Code: 2310 Americas - 1620
  • 14 $0.9735
  • 25 $0.9332
  • 100 $0.7971
  • 250 $0.7157
  • 500 $0.6835
  • 1,000 $0.5126
$0.5126 / $0.9735 Buy Now
Bristol Electronics   Min Qty: 4 35
  • 4 $1.5000
  • 15 $0.9750
$0.9750 / $1.5000 Buy Now
Quest Components FIXED POSITIVE LDO REGULATOR, 5V, 0.6V DROPOUT, BIPOLAR, PSSO2 28
  • 1 $2.0000
  • 4 $1.6000
  • 14 $1.0000
$1.0000 / $2.0000 Buy Now
DISTI # LM2931ADT50R
Avnet Americas LDO Regulator Pos 5V 0.1A 3-Pin(2+Tab) DPAK T/R - Tape and Reel (Alt: LM2931ADT50R) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.5097
  • 5,000 $0.4992
  • 10,000 $0.4887
$0.4887 / $0.5097 Buy Now
DISTI # LM2931ADT50R
TME IC: voltage regulator, LDO,linear,fixed, 5V, 0.1A, DPAK, SMD, Ch: 1 Min Qty: 1 0
  • 1 $0.9130
  • 5 $0.6940
  • 25 $0.5670
  • 100 $0.5040
  • 500 $0.4550
$0.4550 / $0.9130 RFQ
DISTI # LM2931ADT50R
Avnet Americas LDO Regulator Pos 5V 0.1A 3-Pin(2+Tab) DPAK T/R - Tape and Reel (Alt: LM2931ADT50R) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.5097
  • 5,000 $0.4992
  • 10,000 $0.4887
$0.4887 / $0.5097 Buy Now
ComSIT USA VERY LOW DROP VOLTAGE REGULATOR WITH INHIBIT FUNCTION Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSSO2 RoHS: Compliant Europe - 5000
RFQ
DISTI # LM2931ADT50R
Avnet Silica LDO Regulator Pos 5V 0.1A 3-Pin(2+Tab) DPAK T/R (Alt: LM2931ADT50R) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 1 Weeks, 6 Days Silica - 0
Buy Now
Chip1Cloud VERY LOW DROP VOLTAGE REGULATORS 8300
RFQ
DISTI # LM2931ADT50R
EBV Elektronik LDO Regulator Pos 5V 0.1A 3-Pin(2+Tab) DPAK T/R (Alt: LM2931ADT50R) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 1 Weeks, 6 Days EBV - 0
Buy Now
DISTI # 2849794RL
element14 Asia-Pacific TO 251 DPAK AU/LOW DROP VOLT REG RoHS: Compliant Min Qty: 100 Container: Reel 3914
  • 100 $0.7839
  • 500 $0.7158
  • 1,000 $0.5722
  • 2,500 $0.5553
  • 5,000 $0.5392
$0.5392 / $0.7839 Buy Now
DISTI # 2849794
element14 Asia-Pacific TO 251 DPAK AU/LOW DROP VOLT REG RoHS: Compliant Min Qty: 1 Container: Cut Tape 3914
  • 1 $1.1209
  • 10 $0.9744
  • 100 $0.7839
  • 500 $0.7158
  • 1,000 $0.5722
  • 2,500 $0.5553
  • 5,000 $0.5392
$0.5392 / $1.1209 Buy Now
DISTI # 2849794
Farnell TO 251 DPAK AU/LOW DROP VOLT REG RoHS: Compliant Min Qty: 1 Lead time: 38 Weeks, 1 Days Container: Cut Tape 3914
  • 1 $1.2390
  • 10 $0.9392
  • 50 $0.8730
  • 100 $0.8056
  • 250 $0.7631
  • 500 $0.6894
  • 1,000 $0.5458
  • 2,500 $0.5296
$0.5296 / $1.2390 Buy Now
DISTI # 2849794RL
Farnell TO 251 DPAK AU/LOW DROP VOLT REG RoHS: Compliant Min Qty: 100 Lead time: 38 Weeks, 1 Days Container: Reel 3914
  • 100 $0.8056
  • 250 $0.7631
  • 500 $0.6894
  • 1,000 $0.5458
  • 2,500 $0.5296
$0.5296 / $0.8056 Buy Now
LCSC 75dB(120Hz) 100mA null 5V Positive electrode 26V DPAK Linear Voltage Regulators (LDO) ROHS 20
  • 1 $0.9181
  • 10 $0.8445
  • 30 $0.7987
  • 100 $0.7511
  • 500 $0.7303
  • 1,000 $0.7208
$0.7208 / $0.9181 Buy Now
Perfect Parts Corporation   28087
RFQ

Part Details for LM2931ADT50R

LM2931ADT50R CAD Models

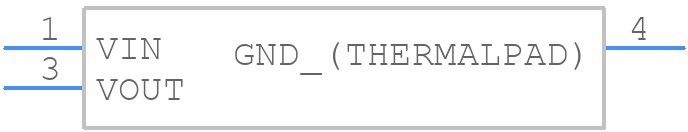

  • Part Symbol

    Part Symbol

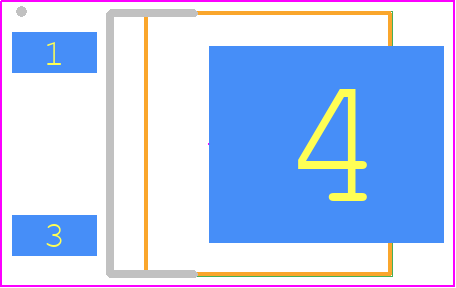

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM2931ADT50R Part Data Attributes

Parametric Data
LM2931ADT50R STMicroelectronics
Buy Now Datasheet
Compare Parts:
LM2931ADT50R STMicroelectronics Very low drop voltage regulators with inhibit function
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code TO-252
Package Description DPAK-3
Pin Count 3
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 12 Weeks
Samacsys Manufacturer STMicroelectronics
Adjustability FIXED
Dropout Voltage1-Max 0.6 V
Dropout Voltage1-Nom 0.25 V
Input Voltage Absolute-Max 40 V
Input Voltage-Max 26 V
Input Voltage-Min 6 V
JESD-30 Code R-PSSO-G2
JESD-609 Code e3
Length 6.5 mm
Line Regulation-Max 0.03%
Load Regulation-Max 0.05%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 2
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.1 A
Output Voltage1-Max 5.25 V
Output Voltage1-Min 4.75 V
Output Voltage1-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Code TO-252
Package Equivalence Code SMSIP3H,.41TB
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 2.63 mm
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 2.28 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 5%
Width 6.1 mm

Alternate Parts for LM2931ADT50R

This table gives cross-reference parts and alternative options found for LM2931ADT50R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2931ADT50R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
LM2931S-5.0/NOPB IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.6 V DROPOUT, PSSO3, TO-263, 3 PIN, Fixed Positive Single Output LDO Regulator National Semiconductor Corporation LM2931ADT50R vs LM2931S-5.0/NOPB
TLV2217-33KTPR 3.3V FIXED POSITIVE LDO REGULATOR, 0.5V DROPOUT, PSSO2, PLASTIC, TO-252AC, FM-3 Texas Instruments LM2931ADT50R vs TLV2217-33KTPR
LM2931ADT-5.0RK 5V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PSSO2, PLASTIC, DPAK-3 Motorola Mobility LLC LM2931ADT50R vs LM2931ADT-5.0RK
LM2931D2T-5.0R4 5V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PSSO2, D2PAK-3 onsemi LM2931ADT50R vs LM2931D2T-5.0R4
LP2950CDT-5.0RK 5V FIXED POSITIVE LDO REGULATOR, 0.45V DROPOUT, PSSO2, PLASTIC, DPAK-3 Motorola Mobility LLC LM2931ADT50R vs LP2950CDT-5.0RK
LM2931ADT-5.0RKG LDO Regulator, 100 mA, Ultra-High PSRR Vout: 5.0 V; ±3.8%, DPAK (SINGLE GAUGE) TO-252, 2500-REEL onsemi LM2931ADT50R vs LM2931ADT-5.0RKG
LM2931D2T-5.0G LDO Regulator, 100 mA, Ultra-High PSRR Vout: 5.0 V; ±5.0%, 3 LEAD D2PAK, 50-TUBE onsemi LM2931ADT50R vs LM2931D2T-5.0G
LM2931SX-5.0 Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSSO3 National Semiconductor Corporation LM2931ADT50R vs LM2931SX-5.0
LP2950ACDT-5.0 5V FIXED POSITIVE LDO REGULATOR, 0.45V DROPOUT, PSSO2, PLASTIC, DPAK-3 Motorola Mobility LLC LM2931ADT50R vs LP2950ACDT-5.0
SPX2954T-5.0 Fixed Positive LDO Regulator, 5V, 0.5V Dropout, PSSO3, TO-263, 3 PIN Sipex Corporation LM2931ADT50R vs SPX2954T-5.0
