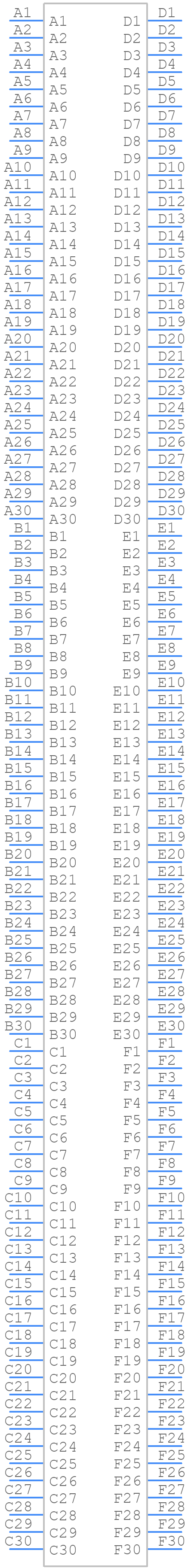

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SEAF-30-05.0-S-06-2-A-K-TR by Samtec Inc
Overview of SEAF-30-05.0-S-06-2-A-K-TR by Samtec Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 crosses)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Smart Cities
Transportation and Logistics
Automotive
Motor control systems
Robotics and Drones
Price & Stock for SEAF-30-05.0-S-06-2-A-K-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67P4058
|
Newark | .050" Searay High-Speed High-Density Open-Pin-Field Array Socket Rohs Compliant: Yes |Samtec SEAF-30-05.0-S-06-2-A-K-TR Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 342 |
|
$11.3600 | Buy Now |
|
DISTI #
45AJ7732
|
Newark | Conn, Array Female, 180Pos, 1.27Mm Rohs Compliant: Yes |Samtec SEAF-30-05.0-S-06-2-A-K-TR Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$12.2900 / $18.2200 | Buy Now |
|
DISTI #
SAM14335CT-ND
|
DigiKey | CONN HD ARRAY RCPT 180P SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
375 In Stock |
|
$10.4125 / $15.9600 | Buy Now |
|
DISTI #
SEAF-30-05.0-S-06-
|
Avnet Americas | Conn Open Pin Field Array SKT 180 POS 1.27mm Solder ST SMD T/R - Tape and Reel (Alt: SEAF-30-05.0-S-06-) RoHS: Compliant Min Qty: 375 Package Multiple: 375 Lead time: 1 Weeks, 0 Days Container: Reel | 342 Factory Stock |
|
$11.7000 / $15.9600 | Buy Now |
|
DISTI #
200-SEAF3005.0S062AK
|
Mouser Electronics | Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket RoHS: Compliant | 437 |
|
$8.5100 / $15.9600 | Buy Now |
|
|
Onlinecomponents.com | This open pin field array socket features a 1.27 mm x 1.27 mm pitch grid with up to 500 total I/Os. The rugged Edge Rate® contact system is signal integrity optimized with solder charged terminations for ease of processing. SEAF is a 28+ Gbps performance RoHS: Compliant |
65 In Stock 1092 Factory Stock |
|
$7.3000 / $15.9600 | Buy Now |
|
DISTI #
65018871
|
Verical | Conn Open Pin Field Array SKT 180 POS 1.27mm Solder ST Top Entry SMD SEARAY™ T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 | Americas - 65 |
|
$16.1261 / $19.6794 | Buy Now |
|
DISTI #
SEAF-30-05.0-S-06-
|
Avnet Americas | Conn Open Pin Field Array SKT 180 POS 1.27mm Solder ST SMD T/R - Tape and Reel (Alt: SEAF-30-05.0-S-06-) RoHS: Compliant Min Qty: 375 Package Multiple: 375 Lead time: 1 Weeks, 0 Days Container: Reel | 342 Factory Stock |
|
$11.7000 / $15.9600 | Buy Now |
|
|
Powell Electronics | .050 SEARAY Min Qty: 1 | 430 |
|
$11.7000 / $15.9600 | Buy Now |
|
DISTI #
000000000002534515
|
Sager | Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Socket Min Qty: 1 | 1092 |
|
$9.9500 / $15.9600 | Buy Now |
Part Details for SEAF-30-05.0-S-06-2-A-K-TR
SEAF-30-05.0-S-06-2-A-K-TR CAD Models
SEAF-30-05.0-S-06-2-A-K-TR Part Data Attributes:
|
|
SEAF-30-05.0-S-06-2-A-K-TR
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
SEAF-30-05.0-S-06-2-A-K-TR
Samtec Inc
Board Stacking Connector, 180 Contact(s), 6 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | ROHS COMPLIANT | |
| Board Mounting Option | PEG | |
| Body Breadth | 0.321 inch | |
| Body Depth | 0.199 inch | |
| Body Length | 1.729 inch | |
| Body/Shell Style | SOCKET | |
| Connector Type | BOARD STACKING CONNECTOR | |
| Contact Finish Mating | GOLD (30) OVER NICKEL (50) | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Material | COPPER ALLOY | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 5.5 mΩ | |
| Contact Style | CENTRONIC | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | LIF N | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.05 inch | |
| Mating Contact Row Spacing | 0.05 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 6 | |
| Number of Rows Loaded | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 1.27 mm | |
| Plating Thickness | 30u inch | |
| Rated Current (Signal) | 2.7 A | |
| Reference Standard | UL | |
| Terminal Pitch | 1.27 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 180 | |
| Withdrawl Force-Min | LIF N |
