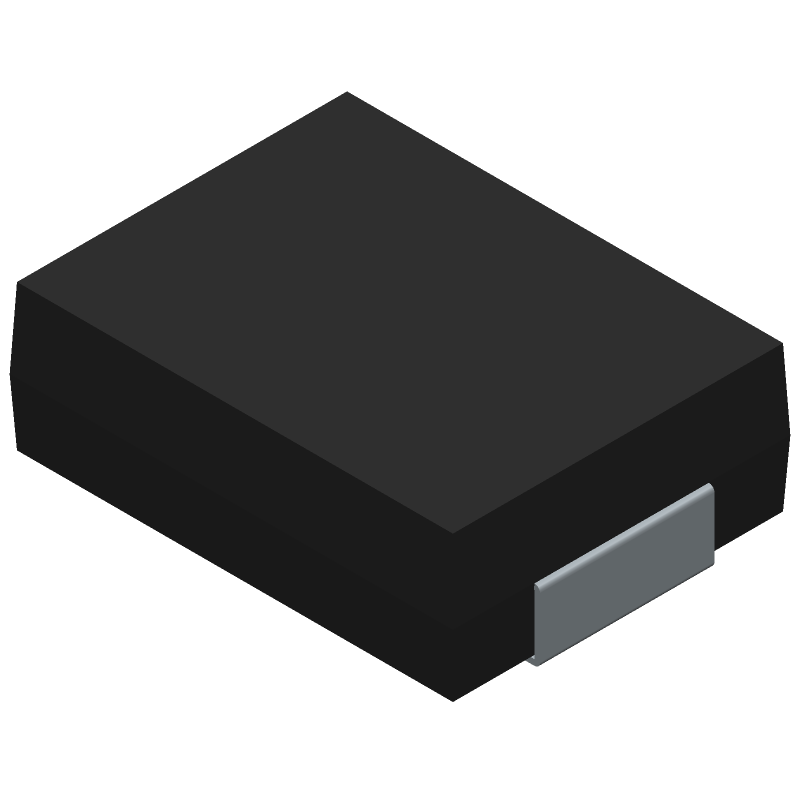

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SM15T30CA by STMicroelectronics
Overview of SM15T30CA by STMicroelectronics
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (10 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for SM15T30CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34M8597
|
Newark | Diode, Tvs, 30V, 1.5Kw, Product Range:Transil Sm15T Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:25.6V, Clamping Voltage Max:53.5V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Minimum Breakdown Voltage:28.5V Rohs Compliant: Yes |Stmicroelectronics SM15T30CA Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4345 |
|
$0.4400 / $0.8740 | Buy Now |
|
DISTI #
94W9515
|
Newark | Transient Voltage Suppressor, Tvs, Transil Sm15T Series, Bidirectional, 25.6 V, Do-214Ab, 2, 28.5 V Rohs Compliant: Yes |Stmicroelectronics SM15T30CA Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.3310 / $0.3950 | Buy Now |
|
DISTI #
57P0412
|
Newark | Transient Voltage Suppressor, Tvs, Transil Sm15T Series, Bidirectional, 25.6 V, Do-214Ab, 2, 28.5 V |Stmicroelectronics SM15T30CA Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4950 | Buy Now |
|
DISTI #
497-12773-1-ND
|
DigiKey | TVS DIODE 25.6VWM 53.5VC SMC Min Qty: 1 Lead time: 21 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2111 In Stock |
|
$0.3365 / $0.9000 | Buy Now |
|
DISTI #
SM15T30CA
|
Avnet Americas | Diode TVS Single Bi-Dir 25.6V 1.5KW 2-Pin SMC T/R - Tape and Reel (Alt: SM15T30CA) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 21 Weeks, 0 Days Container: Reel | 0 |
|
$0.3600 / $0.3755 | Buy Now |
|
DISTI #
511-SM15T30CA
|
Mouser Electronics | ESD Suppressors / TVS Diodes 1500W 30V Bidirect RoHS: Compliant | 1091 |
|
$0.3370 / $0.8900 | Buy Now |
|
DISTI #
V72:2272_17700825
|
Arrow Electronics | Diode TVS Single Bi-Dir 25.6V 1.5KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1620 Container: Cut Strips | Americas - 2 |
|
$0.0622 / $0.2377 | Buy Now |
|
|
STMicroelectronics | 1500 W, 25.6 V TVS in SMC RoHS: Compliant Min Qty: 1 | 1091 |
|
$0.4700 / $0.8700 | Buy Now |
|
|
Future Electronics | SM15T Series 1500 W 30 V Bi Directional Transient Voltage Suppressor - DO-214AB RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 21 Weeks Container: Reel | 70000Reel |
|
$0.3300 / $0.3550 | Buy Now |
|
|
Future Electronics | SM15T Series 1500 W 30 V Bi Directional Transient Voltage Suppressor - DO-214AB RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 21 Weeks Container: Reel | 5000Reel |
|
$0.3300 / $0.3550 | Buy Now |
Part Details for SM15T30CA
SM15T30CA CAD Models
SM15T30CA Part Data Attributes:
|
|
SM15T30CA
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SM15T30CA
STMicroelectronics
1500 W, 25.6 V TVS in SMC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AB | |
| Package Description | ROHS COMPLIANT, PLASTIC, SMC, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Breakdown Voltage-Max | 31.5 V | |
| Breakdown Voltage-Min | 28.5 V | |
| Breakdown Voltage-Nom | 30 V | |
| Clamping Voltage-Max | 53.5 V | |
| Configuration | SINGLE | |
| Diode Capacitance-Min | 1450 pF | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 6.3 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 25 V | |
| Reverse Current-Max | 5 µA | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
