TPS61240TDRVRQ1 by: Texas Instruments

2.3-V to 5.5-V input range, 3.5-MHz fixed frequency 450-mA boost converter, AEC-Q100 qualified 6-WSON -40 to 105

Part Details for TPS61240TDRVRQ1 by Texas Instruments

Overview of TPS61240TDRVRQ1 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Internet of Things (IoT) Smart Cities Energy and Power Systems Transportation and Logistics Renewable Energy Telecommunications Communication and Networking Automotive

Price & Stock for TPS61240TDRVRQ1

Part # Distributor Description Stock Price Buy
DISTI # 296-TPS61240TDRVRQ1CT-ND
DigiKey IC REG BOOST 5V 500MA 6WSON Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 4382
In Stock
  • 1 $2.2300
  • 10 $2.0020
  • 25 $1.8888
  • 100 $1.6092
  • 250 $1.5110
  • 500 $1.3221
  • 1,000 $1.0955
  • 3,000 $1.0199
  • 6,000 $0.9821
$0.9821 / $2.2300 Buy Now
DISTI # 595-TPS61240TDRVRQ1
Mouser Electronics Switching Voltage Regulators 2.3-V to 5.5-V input range, 3.5-MHz fixed frequency 450-mA boost converter, AEC-Q100 qualified 6-WSON -40 to 105 RoHS: Compliant 10680
  • 1 $2.2300
  • 10 $1.8900
  • 100 $1.6100
  • 250 $1.5200
  • 500 $1.3300
  • 1,000 $1.1000
  • 3,000 $1.0100
$1.0100 / $2.2300 Buy Now
Ameya Holding Limited   100822
RFQ
LCSC boost converterType Fixed 2.3V5.5V 5V 500mA WSON-6-EP(2x2) DC-DC Converters ROHS 2705
  • 1 $2.0498
  • 10 $1.8648
  • 30 $1.7484
  • 100 $1.6231
  • 500 $1.5694
  • 1,000 $1.5470
$1.5470 / $2.0498 Buy Now
Win Source Electronics IC REG BOOST 5V 500MA 6WSON / 3.5-MHz High Efficiency Step-Up Converter 153467
  • 26 $1.9790
  • 62 $1.6240
  • 96 $1.5730
  • 132 $1.5220
  • 170 $1.4710
  • 228 $1.3190
$1.3190 / $1.9790 Buy Now

Part Details for TPS61240TDRVRQ1

TPS61240TDRVRQ1 CAD Models

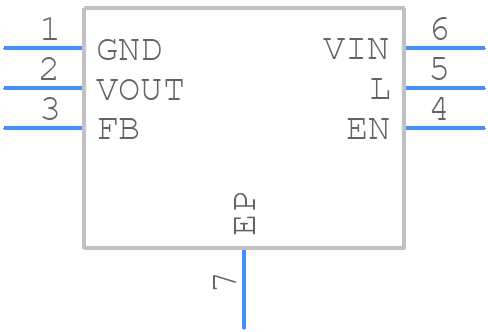

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

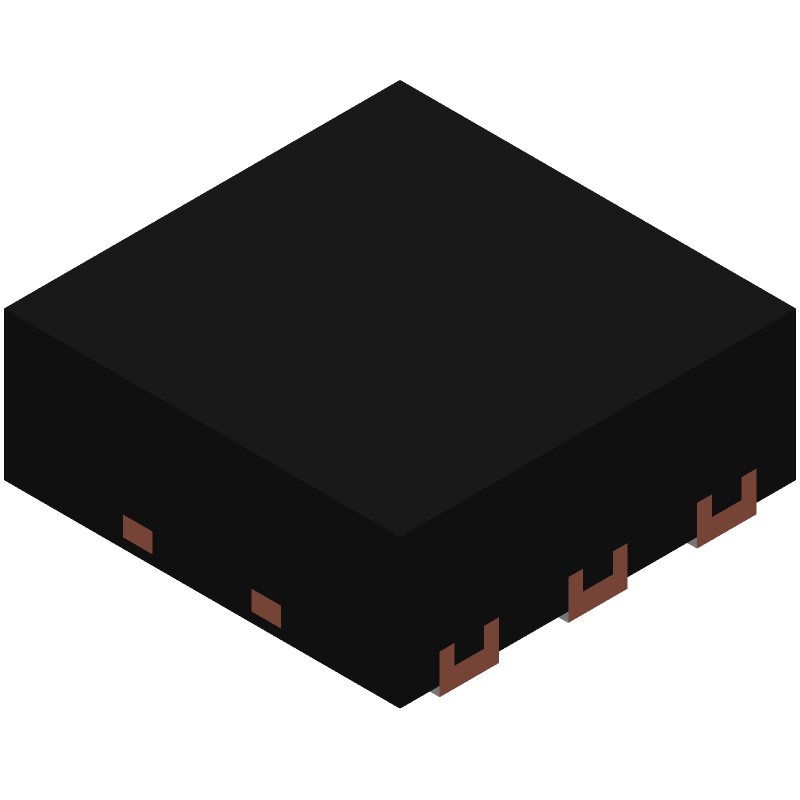

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPS61240TDRVRQ1 Part Data Attributes:

Parametric Data
TPS61240TDRVRQ1 Texas Instruments
Buy Now Datasheet
Compare Parts:
TPS61240TDRVRQ1 Texas Instruments 2.3-V to 5.5-V input range, 3.5-MHz fixed frequency 450-mA boost converter, AEC-Q100 qualified 6-WSON -40 to 105
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description WSON-6
Reach Compliance Code compliant
ECCN Code EAR99
Date Of Intro 2017-03-04
Samacsys Manufacturer Texas Instruments
Additional Feature ALSO OPERATES IN PFM MODE
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 5.5 V
Input Voltage-Min 2.3 V
Input Voltage-Nom 3.6 V
JESD-30 Code S-PDSO-N6
JESD-609 Code e4
Length 2 mm
Moisture Sensitivity Level 2
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Output Voltage-Max 5 V
Output Voltage-Min 5 V
Output Voltage-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Screening Level AEC-Q100
Seated Height-Max 0.8 mm
Surface Mount YES
Switcher Configuration BOOST
Switching Frequency-Max 3500 kHz
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 2 mm
