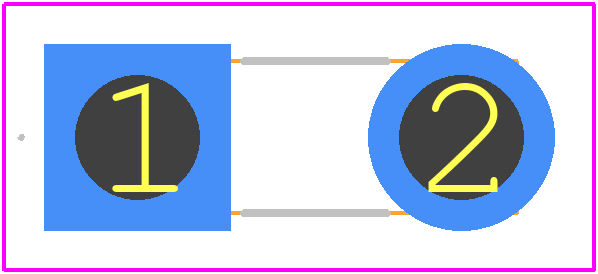

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 029707.5WXNV by Littelfuse Inc
Results Overview of 029707.5WXNV by Littelfuse Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
029707.5WXNV Information
029707.5WXNV by Littelfuse Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for 029707.5WXNV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
95F2012
|
Newark | Fuse, Blade, 7.5A, 32V, Fast Acting, Blow Characteristic:Fast Acting, Fuse Current:7.5A, Voltage Rating Vdc:32V, Product Range:Mini 297 Series, Body Material:Plastic, Colour Code:Brown, Fuse Size:8.8Mm X 10.9Mm X 3.8Mm Rohs Compliant: Yes |Littelfuse 029707.5WXNV RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 4656 |
|
$0.1710 / $0.3500 | Buy Now |
|
DISTI #
71005363
|
RS | FUSE, AUTOMOTIVE BLADE, 7.5A 32 VDC, BROWN PA66, MINI SERIES Min Qty: 1 Package Multiple: 1 Container: Bulk | 156 |
|
$0.2490 / $0.3110 | Buy Now |
|
|
Bristol Electronics | Min Qty: 9 | 420 |
|
$0.1800 / $0.6000 | Buy Now |
|
|
Bristol Electronics | Min Qty: 9 | 76 |
|
$0.3000 / $0.6000 | Buy Now |
|
|
Bristol Electronics | 6 |
|
RFQ | ||
|
DISTI #
029707.5WXNV
|
TME | Fuse: fuse, 7.5A, 32VDC, automotive, 10.9mm, Mini, MINI Min Qty: 1 | 2267 |
|
$0.1610 / $0.3200 | Buy Now |
|
DISTI #
FUSE6632
|
Rutronik | 7.5A 32V fast AUTO MINI brown RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Bulk |
Stock DE - 9000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.1488 / $0.1604 | Buy Now |
|
DISTI #
46254
|
Waytek, Inc. | 7.5 Amp Mini Automotive Fuse Brown 32V Min Qty: 50 Package Multiple: 3000 Lead time: 7 Weeks, 2 Days | 24109 |
|
$0.0860 / $0.1293 | Buy Now |
|
|
Chip Stock | Fuse,AutomotiveBlade,7.5A32VDC,BrownPA66,MINISeries|Littelfuse029707.5WXNV | 15500 |
|
RFQ | |
|
|
LCSC | 32V 1kA32V Blade Fuse 7.5A Fuses RoHS | 15960 |
|
$0.0484 / $0.0983 | Buy Now |
Part Details for 029707.5WXNV
029707.5WXNV CAD Models
029707.5WXNV Part Data Attributes
|
|
029707.5WXNV
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
029707.5WXNV
Littelfuse Inc
Electric Fuse, Fast Blow, 7.5A, 32VDC, 1000A (IR), Inline/holder, MINI, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Blow Characteristic | FAST | |
| Body Breadth | 3.8 mm | |
| Body Height | 8.8 mm | |
| Body Length or Diameter | 10.9 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| Fuse Size | MINI | |
| JESD-609 Code | e4 | |
| Joule Integral-Nom | 82 J | |
| Mounting Feature | INLINE/HOLDER | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | BULK | |
| Rated Breaking Capacity | 1000 A | |
| Rated Current | 7.5 A | |
| Rated Voltage(DC) | 32 V | |
| Reference Standard | UL | |
| Surface Mount | NO | |
| Terminal Finish | Silver (Ag) | |
| Terminal Shape | TAB/BLADE | |
| Trip Time or Delay | 0.03 s |
Alternate Parts for 029707.5WXNV
This table gives cross-reference parts and alternative options found for 029707.5WXNV. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 029707.5WXNV, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 029707.5LXN | Littelfuse Inc | Check for Price | Electric Fuse, 7.5A, 32VDC, Inline/holder, ROHS COMPLIANT | 029707.5WXNV vs 029707.5LXN |
