0324020.MXP by: Littelfuse Inc

Electric Fuse, Fast Blow, 20A, 250VAC, 125VDC, 1000A (IR), Through Hole, 3AB, ROHS COMPLIANT

Part Details for 0324020.MXP by Littelfuse Inc

Results Overview of 0324020.MXP by Littelfuse Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

0324020.MXP Information

0324020.MXP by Littelfuse Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.

Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.

Price & Stock for 0324020.MXP

Part # Distributor Description Stock Price Buy
DISTI # 42K9812
Newark Cartridge Fuse, Fast Acting, 20A, 250V, Blow Characteristic:Fast Acting, Fuse Current:20A, Voltage Rating Vac:250V, Fuse Size Metric:6.3Mm X 32Mm, Fuse Size Imperial:1/4" X 1-1/4", Product Range:324 Series, Fuse Size Code:3Ab Rohs Compliant: Yes |Littelfuse 0324020.MXP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 70
  • 1 $1.7200
  • 25 $1.5800
  • 100 $1.4600
  • 250 $1.4200
  • 500 $1.3100
  • 1,000 $1.2100
  • 2,500 $1.1800
  • 5,000 $1.1600
$1.1600 / $1.7200 Buy Now
DISTI # 72244433
RS FUSE, CERAMIC, 324 SERIES, 1/4" X 1-1/4" , FAST BLOW, 250VAC, 125VDC, 20A Min Qty: 1 Package Multiple: 1 Container: Bulk 996
  • 1 $2.8200
  • 5 $2.6700
  • 10 $2.5300
  • 50 $2.3900
  • 100 $2.2500
$2.2500 / $2.8200 Buy Now
Bristol Electronics   Min Qty: 4 48705
  • 4 $1.5600
  • 14 $1.1700
  • 44 $0.9750
  • 155 $0.5850
  • 514 $0.5460
  • 1,375 $0.5148
$0.5148 / $1.5600 Buy Now
Bristol Electronics   Min Qty: 4 35
  • 4 $1.5600
  • 14 $1.1700
$1.1700 / $1.5600 Buy Now
Ameya Holding Limited 324 Series Fast-Acting 20 A 250 V Ø 6.99 x 32.72 mm Axial Ceramic Cartridge Fuse 5000
RFQ
DISTI # 000000000007262612
Sager FUSE 250V FA PT 3AB PB-FREE 20A Min Qty: 1000 0
  • 1,000 $1.4500
$1.4500 Buy Now
DISTI # 0324020.MXP
Chip One Stop Passives RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk 448
  • 1 $0.9930
$0.9930 Buy Now
Chip Stock 324Series-3ABFast-ActingAxialLeadedCeramicBodyFuse,20A,250VAC125VDC,TH,RoHS 3500
RFQ
LCSC Ceramic Tube Fuse 20A Through HoleD7xL32.7mm Fuses RoHS 60
  • 5 $0.4301
  • 50 $0.3404
  • 150 $0.3017
  • 500 $0.2538
  • 2,500 $0.2321
  • 5,000 $0.2197
$0.2197 / $0.4301 Buy Now
Win Source Electronics FUSE CERM 20A 250VAC 125VDC 3AB / 314/324 Series Lead-free 3AB, Fast-acting Fuse 2000
  • 210 $0.2815
  • 500 $0.2310
  • 775 $0.2238
  • 1,070 $0.2166
  • 1,380 $0.2094
  • 1,850 $0.1877
$0.1877 / $0.2815 Buy Now

US Tariff Estimator: 0324020.MXP by Littelfuse Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

0324020.MXP
Littelfuse Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 0324020.MXP

0324020.MXP CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

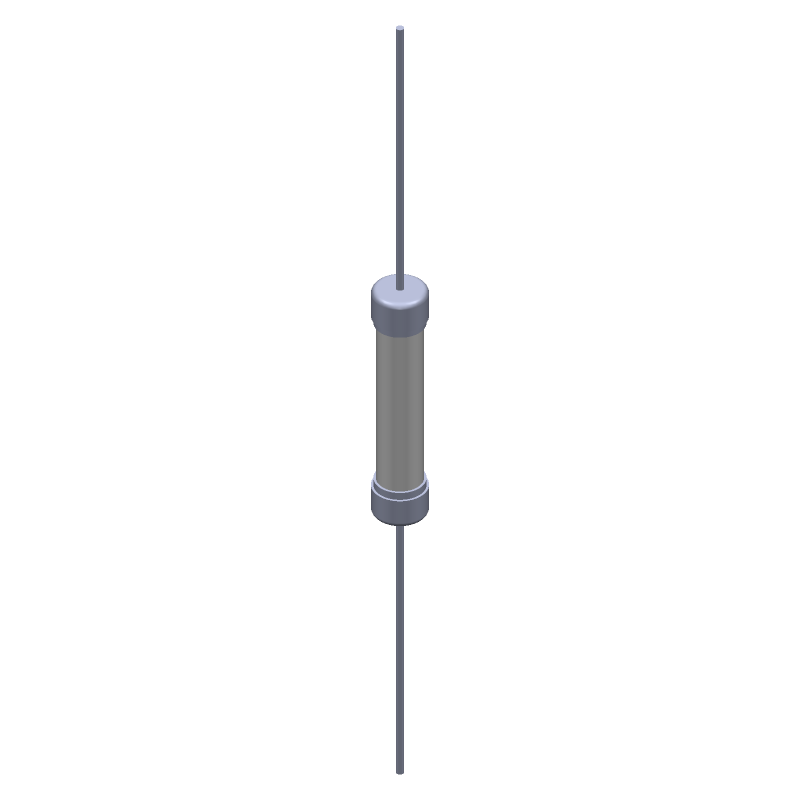

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

0324020.MXP Part Data Attributes

Parametric Data
0324020.MXP Littelfuse Inc
Buy Now Datasheet
Compare Parts:
0324020.MXP Littelfuse Inc Electric Fuse, Fast Blow, 20A, 250VAC, 125VDC, 1000A (IR), Through Hole, 3AB, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.10.00.40
Additional Feature Rated Breaking Capacity At 125 Vdc: 10000 A
Blow Characteristic Fast
Body Height 32.72 Mm
Body Length or Diameter 6.985 Mm
Circuit Protection Type Electric Fuse
Fuse Size 3ab
JESD-609 Code e3
Joule Integral-Nom 631 J
Mounting Feature Through Hole
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Packing Method Bulk
Rated Breaking Capacity 1000 A
Rated Current 20 A
Rated Voltage(AC) 250 V
Rated Voltage(DC) 125 V
Reference Standard Ce; Csa; Cul; Kc; Pse; Tuv; Ul
Surface Mount No
Terminal Finish Matte Tin (Sn)
Terminal Shape Pin Wire
Trip Time or Delay 30 S
