0324040.MXP Information
0324040.MXP by Littelfuse Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for 0324040.MXP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64R7986
|
Newark | Cartridge Fuse, Fast Acting, 40A, 250V, Blow Characteristic:Fast Acting, Fuse Current:40A, Voltage Rating Vac:250V, Fuse Size Metric:6.3Mm X 32Mm, Fuse Size Imperial:1/4" X 1-1/4", Product Range:324 Series Rohs Compliant: Yes |Littelfuse 0324040.MXP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 145 |
|
$3.0100 / $4.4600 | Buy Now |
|
DISTI #
75561214
|
RS | FUSE 250V FA PT 3AB PB-FREE 40A Min Qty: 1000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$9.8200 / $10.6700 | RFQ |
|
DISTI #
000000000007262623
|
Sager | FUSE 250V FA PT 3AB PB-FREE 40A Min Qty: 1000 | 0 |
|
Buy Now | |
|
|
Chip Stock | 324Series-3ABFast-ActingAxialLeadedCeramicBodyFuse,40A,250VAC150VDC,TH,RoHS | 3500 |
|
RFQ | |
|
|
Win Source Electronics | FUSE CERM 40A 250VAC 150VDC 3AB / 40 A 250 V AC 150 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial) | 2000 |
|
$2.2363 / $3.3544 | Buy Now |
US Tariff Estimator: 0324040.MXP by Littelfuse Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 0324040.MXP
0324040.MXP CAD Models
-
Part Symbol
-

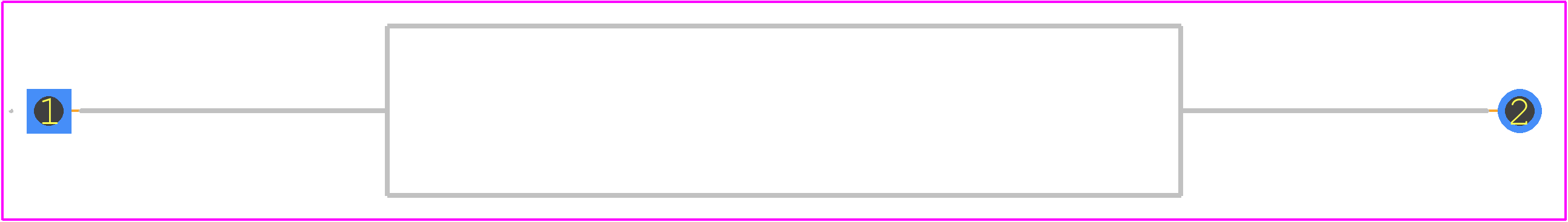

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
0324040.MXP Part Data Attributes
|
|
0324040.MXP
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
0324040.MXP
Littelfuse Inc
Electric Fuse, Fast Blow, 40A, 250VAC, 150VDC, 1000A (IR), Through Hole, 3AB, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.10.00.40 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | RATED BREAKING CAPACITY AT 150 VDC: 400 A | |
| Blow Characteristic | FAST | |
| Body Height | 32.72 mm | |
| Body Length or Diameter | 6.985 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| Fuse Size | 3AB | |
| JESD-609 Code | e3 | |
| Joule Integral-Nom | 22925 J | |
| Mounting Feature | THROUGH HOLE | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Packing Method | BULK | |
| Rated Breaking Capacity | 1000 A | |
| Rated Current | 40 A | |
| Rated Voltage(AC) | 250 V | |
| Rated Voltage(DC) | 150 V | |
| Reference Standard | CE; CUL; UL | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | PIN WIRE | |
| Trip Time or Delay | 30 s |
Alternate Parts for 0324040.MXP
This table gives cross-reference parts and alternative options found for 0324040.MXP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0324040.MXP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 0314040.MXP | Littelfuse Inc | Check for Price | Electric Fuse, Fast Blow, 40A, 250VAC, 150VDC, 1000A (IR), Inline/holder, 3AB, ROHS COMPLIANT | 0324040.MXP vs 0314040.MXP |
| 0324040.VXP | Littelfuse Inc | Check for Price | Electric Fuse, Fast Blow, 40A, 250VAC, 150VDC, 1000A (IR), Through Hole, 3AB, ROHS COMPLIANT | 0324040.MXP vs 0324040.VXP |
| 0314040.HXP | Littelfuse Inc | Check for Price | Electric Fuse, Fast Blow, 40A, 250VAC, 150VDC, 1000A (IR), Inline/holder, 3AB, ROHS COMPLIANT | 0324040.MXP vs 0314040.HXP |
| 0314040.VXP | Littelfuse Inc | Check for Price | Electric Fuse, Fast Blow, 40A, 250VAC, 150VDC, 1000A (IR), Inline/holder, 3AB, ROHS COMPLIANT | 0324040.MXP vs 0314040.VXP |
0324040.MXP Frequently Asked Questions (FAQ)
-
The recommended storage temperature for the 0324040.MXP is -40°C to 125°C.
-
Yes, the 0324040.MXP is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The maximum surge current rating for the 0324040.MXP is 100A for 8.3ms.
-
Yes, the 0324040.MXP is AEC-Q200 qualified and suitable for use in automotive applications.
-
The operating frequency range for the 0324040.MXP is DC to 1GHz.
