0402CS-18NXGRW Information
0402CS-18NXGRW by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
US Tariff Estimator: 0402CS-18NXGRW by Coilcraft Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 0402CS-18NXGRW

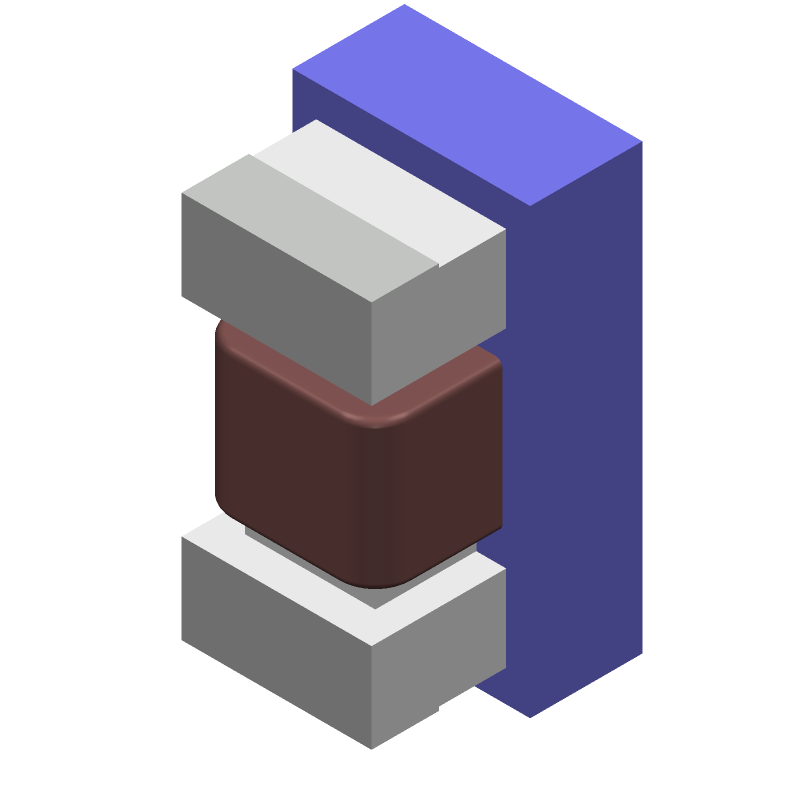

0402CS-18NXGRW CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
0402CS-18NXGRW Part Data Attributes
|
|
0402CS-18NXGRW
Coilcraft Inc
Buy Now
Datasheet
|
Compare Parts:
0402CS-18NXGRW
Coilcraft Inc
General Purpose Inductor, 0.018uH, 2%, 1 Element, Ceramic-Core, SMD, 0402, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COILCRAFT INC | |
| Package Description | CHIP | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | COILCRAFT | |
| Case/Size Code | 0402 | |
| Construction | Rectangular | |
| Core Material | CERAMIC | |
| DC Resistance | 0.23 Ω | |
| Inductance-Nom (L) | 0.018 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 0.66 mm | |
| Package Length | 1.19 mm | |
| Package Style | SMT | |
| Package Width | 0.64 mm | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Rated Current-Max | 0.42 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 3100 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 250 MHz | |
| Tolerance | 2% |
