06035A5R6CAT2A by: Kyocera AVX Components

Capacitor, Ceramic, Chip, General Purpose, 5.6pF, 50V, ±0.25pF, C0G/NP0, 0603 (1608 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel

Part Details for 06035A5R6CAT2A by Kyocera AVX Components

Results Overview of 06035A5R6CAT2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

06035A5R6CAT2A Information

06035A5R6CAT2A by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 06035A5R6CAT2A

Part # Distributor Description Stock Price Buy
DISTI # 95W9197
Newark Smd Multilayer Ceramic Capacitor, 5.6 Pf, 0.25Pf, C0G/Np0, 50 V, 0603 [1608 Metric] Rohs Compliant: Yes |Kyocera Avx 06035A5R6CAT2A RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 5890
  • 10 $0.1380
  • 25 $0.1310
  • 50 $0.1240
  • 100 $0.1170
$0.1170 / $0.1380 Buy Now
DISTI # 28AC6188
Newark Capacitor, Ceramic, 5.6Pf, 50V, C0G/Np0, 0.25Pf, 0603, Full Reel, Ceramic Capacitor Case:0603 [1608 Metric], Capacitance:5.6Pf, Voltage Rating:50V, Capacitance Tolerance: 0.25Pf, Dielectric Characteristic:C0G/Np0, Product Range:- Rohs Compliant: Yes |Kyocera Avx 06035A5R6CAT2A RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 4000
  • 1 $0.0130
$0.0130 Buy Now
DISTI # 66H7623
Newark Capacitor, Ceramic, 5.6Pf, 50V, C0G/Np0, 0.25Pf, 0603, Full Reel, Capacitance:5.6Pf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 0.25Pf, Dielectric Characteristic:C0G/Np0, Product Range:- Rohs Compliant: Yes |Kyocera Avx 06035A5R6CAT2A RoHS: Compliant Min Qty: 18 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 18 $0.1080
$0.1080 Buy Now
DISTI # KGM15ACG1H5R6CT
Avnet Americas - Tape and Reel (Alt: KGM15ACG1H5R6CT) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel 4000
  • 4,000 $0.0110
  • 8,000 $0.0107
  • 16,000 $0.0104
  • 32,000 $0.0101
  • 64,000 $0.0099
$0.0099 / $0.0110 Buy Now
Bristol Electronics   54503
RFQ
DISTI # 06035A5R6CAT2A
TME Capacitor: ceramic, MLCC, 5.6pF, 50V, C0G (NP0), ±0.25pF, SMD, 0603 Min Qty: 1 28360
  • 1 $0.0600
  • 10 $0.0360
  • 100 $0.0180
  • 500 $0.0111
  • 1,000 $0.0086
  • 4,000 $0.0077
  • 8,000 $0.0073
  • 12,000 $0.0071
  • 20,000 $0.0070
  • 40,000 $0.0068
$0.0068 / $0.0600 Buy Now
DISTI # 06035A5R6CAT2A
IBS Electronics MULTILAYER CERAMIC CAPACITOR, 5.6 PF, 50 V, &#xBD, 0.25PF, C0G (NP0), 0603 [1608 METRIC] Min Qty: 4000 Package Multiple: 1 8000
  • 4,000 $0.0085
  • 16,000 $0.0082
  • 60,000 $0.0080
  • 160,000 $0.0078
  • 400,000 $0.0075
$0.0075 / $0.0085 Buy Now
Chip 1 Exchange INSTOCK 3490
RFQ
DISTI # KGM15ACG1H5R6CT
Avnet Abacus - Tape and Reel (Alt: KGM15ACG1H5R6CT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # 06035A5R6CAT2A
Avnet Asia (Alt: 06035A5R6CAT2A) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days 0
RFQ

US Tariff Estimator: 06035A5R6CAT2A by Kyocera AVX Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

06035A5R6CAT2A
Kyocera AVX Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 06035A5R6CAT2A

06035A5R6CAT2A CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

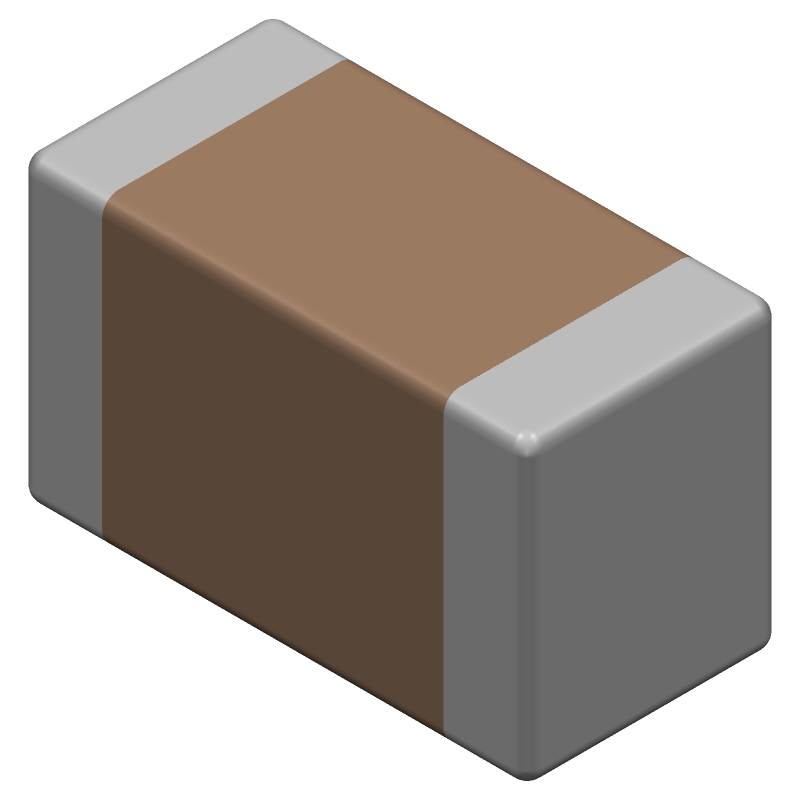

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

06035A5R6CAT2A Part Data Attributes

Parametric Data
06035A5R6CAT2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
06035A5R6CAT2A Kyocera AVX Components Capacitor, Ceramic, Chip, General Purpose, 5.6pF, 50V, ±0.25pF, C0G/NP0, 0603 (1608 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code 0603
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Capacitance 0.0000056 µF
Capacitor Type Ceramic Capacitor
Dielectric Material Ceramic
Height 0.9 Mm
JESD-609 Code e3
Length 1.6 Mm
Mounting Feature Surface Mount
Multilayer Yes
Negative Tolerance 4.4643%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, Paper, 7 Inch
Positive Tolerance 4.4643%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Surface Mount Yes
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel Ppm/°C
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Width 0.81 Mm

Alternate Parts for 06035A5R6CAT2A

This table gives cross-reference parts and alternative options found for 06035A5R6CAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 06035A5R6CAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
KAQ15ACG1H5R6CT Kyocera AVX Components Check for Price Ceramic Capacitor, Ceramic, 50V, 4.46% +Tol, 4.46% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0603, CHIP 06035A5R6CAT2A vs KAQ15ACG1H5R6CT
C0603HQN500-5R6CN6E VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 4.46% +Tol, 4.46% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT 06035A5R6CAT2A vs C0603HQN500-5R6CN6E
0603N5R6C500YH-HS Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 50V, 4.4643% +Tol, 4.4643% -Tol, C0G, -/+30ppm/Cel TC, 0.0000056uF, 0603, 06035A5R6CAT2A vs 0603N5R6C500YH-HS
0603N5R6C500Y Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 50V, 4.4643% +Tol, 4.4643% -Tol, C0G, -/+30ppm/Cel TC, 0.0000056uF, 0603, 06035A5R6CAT2A vs 0603N5R6C500Y
AU035A5R6CAG4A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 4.4643% +Tol, 4.4643% -Tol, C0G, -/+30ppm/Cel TC, 0.0000056uF, 0603, 06035A5R6CAT2A vs AU035A5R6CAG4A
BC035A5R6CZJ3AA3 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 4.4643% +Tol, 4.4643% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0603, CHIP 06035A5R6CAT2A vs BC035A5R6CZJ3AA3
06035A5R6CA77A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 4.46% +Tol, 4.46% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0603, CHIP 06035A5R6CAT2A vs 06035A5R6CA77A
BC035A5R6CZJ1SA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 4.4643% +Tol, 4.4643% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0603, CHIP 06035A5R6CAT2A vs BC035A5R6CZJ1SA2
LD035A5R6CAB9A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 4.46% +Tol, 4.46% -Tol, C0G, 30ppm/Cel TC, 0.0000056uF, Surface Mount, 0603, CHIP 06035A5R6CAT2A vs LD035A5R6CAB9A
0603N5R6C500PHW-HB Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 50V, 4.4643% +Tol, 4.4643% -Tol, C0G, -/+30ppm/Cel TC, 0.0000056uF, 0603, 06035A5R6CAT2A vs 0603N5R6C500PHW-HB
equivalents icon

06035A5R6CAT2A Related Parts

06035A5R6CAT2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 06035A5R6CAT2A capacitor is between 230°C to 250°C for a maximum of 3 seconds.

  • Yes, the 06035A5R6CAT2A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The 06035A5R6CAT2A capacitor is rated for operation up to 125°C, but it's not recommended for use in environments exceeding 150°C without derating the voltage and current ratings.

  • The maximum voltage derating for the 06035A5R6CAT2A capacitor is 80% of the rated voltage at 125°C, and 50% at 150°C.

  • Yes, the 06035A5R6CAT2A capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
