09-50-3021 Information
09-50-3021 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 51730-215STLF | Amphenol Communications Solutions | PwrBlade®, Power Supply Connectors, 3P 24S 3P Right Angle Header. | |
| 86130302113345E1LF | Amphenol Communications Solutions | 8613 M LF CNR | |
| 10153305-30211LF | Amphenol Communications Solutions | PC104+, Board to Board Connectors, 2.00mm Pitch, 4x30P, Press Fit, with CAP, DIP=12.15, Gold Flash |
Price & Stock for 09-50-3021
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AC5662
|
Newark | 156 Kk Term Hsg W/Ramp Nylon 2Ckt Rohs Compliant: Yes |Molex 09-50-3021 (Alternate Part Number: 800753614000 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 90078 |
|
$0.0610 / $0.1040 | Buy Now |
|
DISTI #
38C8765
|
Newark | Connector, Rcpt, 2Pos, 1Row, 3.96Mm, Product Range:Kk 396 2139, Gender:Receptacle, No. Of Positions:2Positions, Pitch Spacing:3.96Mm, For Use With:2478 Series Contacts, Body Material:Pa Polyamide (Nylon), No. Of Contacts:2Contacts Rohs Compliant: Yes |Molex 09-50-3021 (Alternate Part Number: 800753614000 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 28718 |
|
$0.0500 / $0.0590 | Buy Now |
|
DISTI #
0009503021
|
Avnet Americas | Conn Housing Wire to Board Receptacle 2 POS 3.96mm ST Cable Mount Bag - Bulk (Alt: 0009503021) COO: India RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk | 90078 |
|
$0.0382 / $0.0455 | Buy Now |
|
DISTI #
38C8765
|
Avnet Americas | Conn Housing Wire to Board Receptacle 2 POS 3.96mm ST Cable Mount Bag - Bulk (Alt: 38C8765) COO: India RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 31642 Partner Stock |
|
$0.0700 / $0.1020 | Buy Now |
|
|
Bisco Industries | 306 |
|
Buy Now | ||
|
DISTI #
MOL09-50-3021
|
Heilind Electronics | 156 KK TERM HSG W/RAMP NYLON 2CKT | Americas - 92068 in Stock |
|
$0.0429 / $0.0541 | Buy Now |
|
|
Bristol Electronics | Min Qty: 17 | 1350 |
|
$0.0900 / $0.3000 | Buy Now |
|
|
Bristol Electronics | 977 |
|
RFQ | ||
|
DISTI #
MX-2139-2A
|
TME | Connector: wire-board, plug, female, KK 396, PIN: 2, for cable, 1x2 Min Qty: 1 | 5686 |
|
$0.0564 / $0.0900 | Buy Now |
|
|
Powell Electronics | Connector Min Qty: 2858 | 59390 |
|
$0.0413 / $0.0493 | Buy Now |
US Tariff Estimator: 09-50-3021 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 09-50-3021

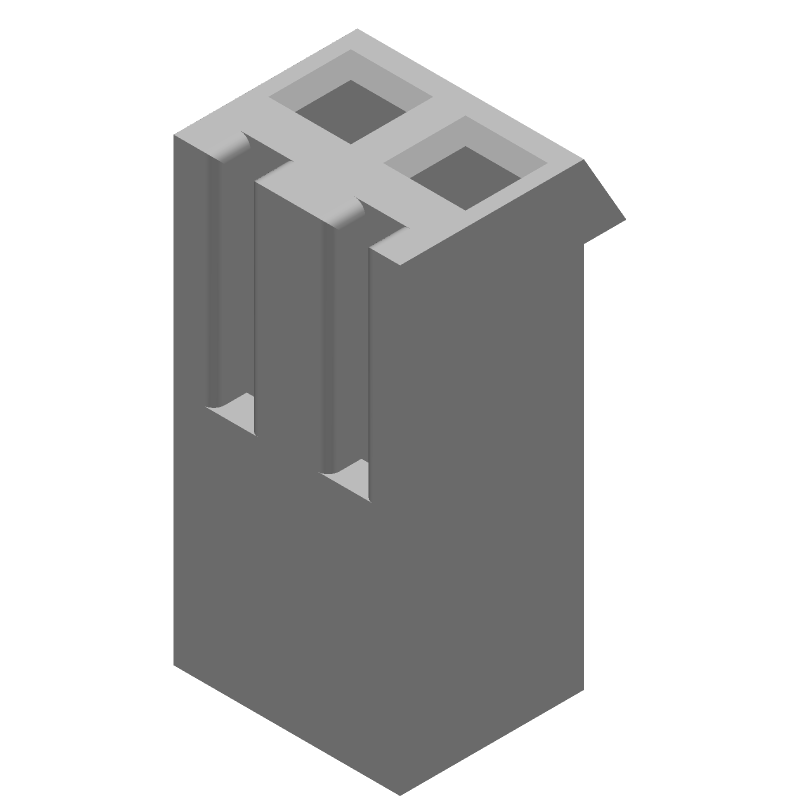

09-50-3021 CAD Models
-
