1-1571983-1 Information

1-1571983-1 by TE Connectivity is a DIP Switch.
DIP Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for 1-1571983-1

Part # Distributor Description Stock Price Buy
DISTI # 2060750RL
Farnell SWITCH, DIP, 8WAY COO: CN RoHS: Compliant Min Qty: 100 Lead time: 22 Weeks, 5 Days Container: Reel 7817
  • 100 $2.6006
$2.6006 Buy Now
DISTI # 2060750
Farnell SWITCH, DIP, 8WAY COO: CN RoHS: Compliant Min Qty: 1 Lead time: 22 Weeks, 5 Days Container: Cut Tape 7817
  • 1 $3.5594
  • 10 $2.9815
  • 25 $2.8370
  • 50 $2.7057
  • 100 $2.6006
$2.6006 / $3.5594 Buy Now
DISTI # 71710105
RS TE, IND DEVICES, SWITCHES, GDH08STR04=DIP SWITCH Min Qty: 2000 Package Multiple: 1 Container: Bulk 0
  • 2,000 $3.7000
  • 4,000 $3.5600
  • 8,000 $3.4400
$3.4400 / $3.7000 RFQ
Powell Electronics DIP GD Min Qty: 1 22
  • 1 $8.4060
  • 2,000 $5.8842
  • 5,000 $4.7074
  • 10,000 $4.1582
  • 25,000 $3.7659
$3.7659 / $8.4060 Buy Now
DISTI # 1-1571983-1
Avnet Asia (Alt: 1-1571983-1) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 20 Weeks, 0 Days 0
  • 2,000 $2.3215
  • 4,000 $2.2892
  • 6,000 $2.2579
  • 10,000 $2.2273
  • 20,000 $2.1687
  • 50,000 $2.1131
  • 100,000 $2.0603
$2.0603 / $2.3215 Buy Now
Component Electronics, Inc SW SMT DIP 1P1T 8SW 16P SLIDE TAPE PICK#166159 1800
  • 1 $2.3100
  • 100 $1.7300
  • 1,000 $1.5000
$1.5000 / $2.3100 Buy Now

US Tariff Estimator: 1-1571983-1 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

1-1571983-1
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 1-1571983-1

1-1571983-1 CAD Models

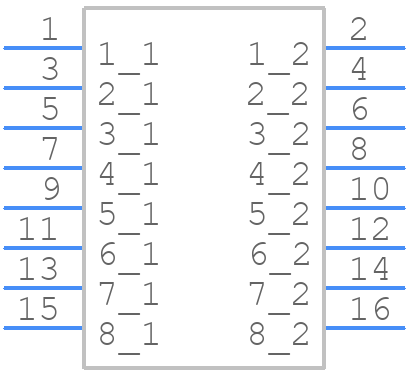

  • Part Symbol

    schematic symbol

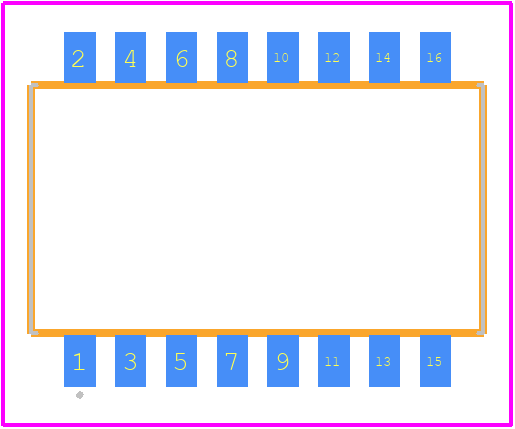

  • Footprint
