1-215309-4 Information
1-215309-4 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 1-215309-4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09H7556
|
Newark | 14P Hv-100 Stecklei Rohs Compliant: Yes |Amp Te Connectivity 1-215309-4 RoHS: Compliant Min Qty: 1152 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.5100 / $2.6600 | Buy Now |
|
DISTI #
1-215309-4
|
Avnet Americas | Conn Socket Strip SKT 28 POS 2.54mm Solder ST Thru-Hole - Bulk (Alt: 1-215309-4) COO: United States of America (the) RoHS: Compliant Min Qty: 1152 Package Multiple: 48 Container: Bulk | 0 |
|
$2.3046 / $2.5849 | Buy Now |
|
DISTI #
72047590
|
RS | CONNECTOR, AMPMODU, 2X14P HV100 REC CON. TE, 8.5MM Min Qty: 48 Package Multiple: 1 Container: Bulk | 0 |
|
$3.1000 / $3.3700 | RFQ |
|
DISTI #
AMP1-215309-4
|
Heilind Electronics | 2X14P HV100 REC CON. TE, 8.5MM | Americas - 0 in Stock |
|
$2.8131 / $2.8551 | Buy Now |
|
DISTI #
AMP1-215309-4
|
Interstate Connecting Components | 2X14P HV100 REC CON. TE, 8.5MM | 0 |
|
$2.8131 / $2.8551 | Buy Now |
|
DISTI #
000000000000917267
|
Sager | Headers & Wire Housings 14P HV-100 STECKLEI Min Qty: 48 | 0 |
|
$3.1900 | Buy Now |
|
DISTI #
1-215309-4
|
Avnet Abacus | Conn Socket Strip SKT 28 POS 254mm Solder ST ThruHole (Alt: 1-215309-4) RoHS: Compliant Min Qty: 1152 Package Multiple: 576 Lead time: 24 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
1-215309-4
|
Avnet Abacus | Conn Socket Strip SKT 28 POS 254mm Solder ST ThruHole (Alt: 1-215309-4) RoHS: Compliant Min Qty: 1152 Package Multiple: 1 Lead time: 26 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: 1-215309-4 by TE Connectivity
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1-215309-4

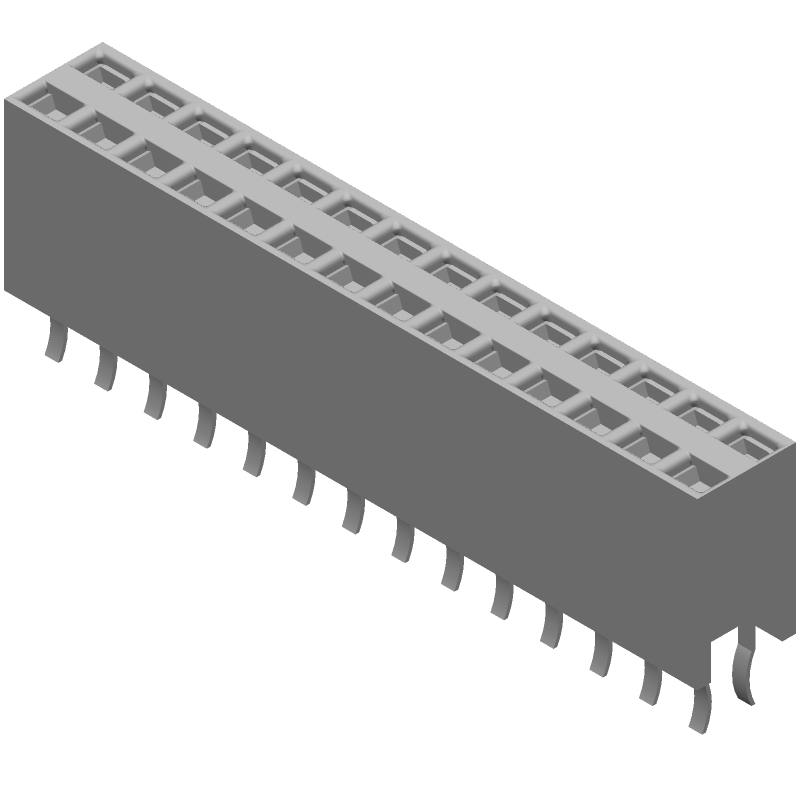

1-215309-4 CAD Models
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1-215309-4 Part Data Attributes
|
|
1-215309-4
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
1-215309-4
TE Connectivity
2X14P HV100 REC CON. TE, 8.5MM
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Additional Feature | Ampmodu | |
| Board Mounting Option | Solderable Retention Clips | |
| Body Breadth | 0.199 Inch | |
| Body Depth | 0.335 Inch | |
| Body Length | 1.4 Inch | |
| Body/Shell Style | Receptacle | |
| Connector Type | Board Connector | |
| Contact Finish Mating | Not Applicable | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | Female | |
| Contact Material | Not Applicable | |
| Contact Pattern | Rectangular | |
| Contact Style | Bellowed Type | |
| DIN Conformance | No | |
| EMI Shielded | No | |
| Empty Shell | Yes | |
| Filter Feature | No | |
| IEC Conformance | No | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Color | Green | |
| Insulator Material | Glass Filled Polyester | |
| JESD-609 Code | e3 | |
| MIL Conformance | No | |
| Mains Connector Rating | 3a | |
| Mating Contact Pitch | 0.1 Inch | |
| Mating Contact Row Spacing | 0.1 Inch | |
| Mixed Contacts | No | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number Of PCB Rows | 2 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | General Purpose | |
| PCB Contact Pattern | Rectangular | |
| PCB Contact Row Spacing | 2.54 Mm | |
| Panel Mount | No | |
| Plating Thickness | 30u Inch | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | Ul | |
| Terminal Length | 0.122 Inch | |
| Terminal Pitch | 2.54 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 14 | |
| UL Flammability Code | 94V-0 |
