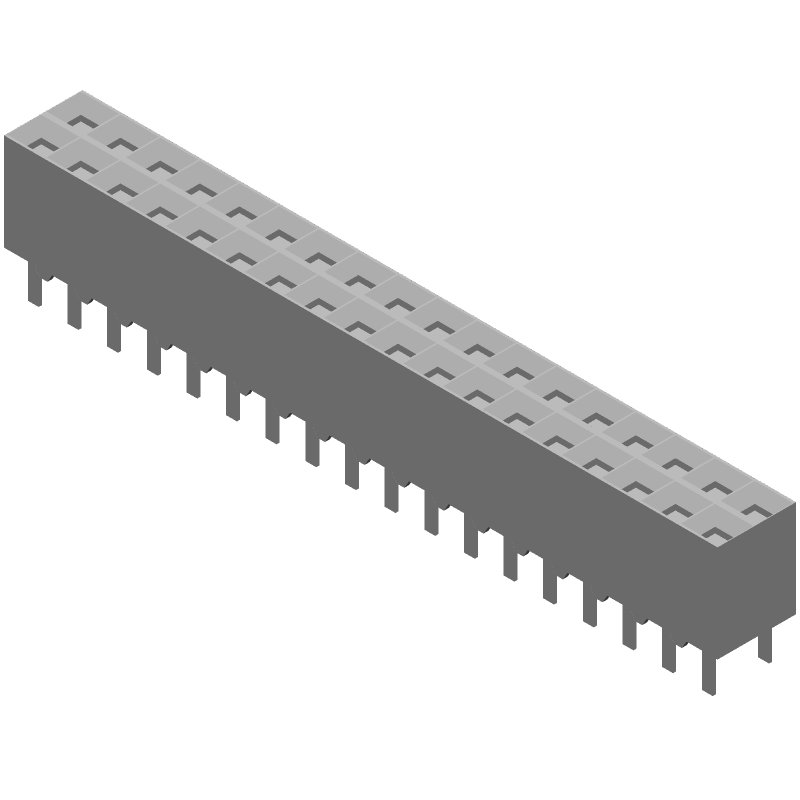

1-535542-8 by: TE Connectivity

36 MODIV VRT DR CE 100/130

Part Details for 1-535542-8 by TE Connectivity

Results Overview of 1-535542-8 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research Environmental Monitoring Industrial Automation Audio and Video Systems Agriculture Technology Medical Imaging Entertainment and Gaming

1-535542-8 Information

1-535542-8 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 1-535542-8

Part # Distributor Description Stock Price Buy
DISTI # 10H0937
Newark 36 Modiv Vrt Dr Ce 100/130 Rohs Compliant: No |Amp Te Connectivity 1-535542-8 RoHS: Not Compliant Min Qty: 720 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $5.7800
  • 1,000 $5.2500
  • 2,500 $5.0100
$5.0100 / $5.7800 Buy Now
DISTI # 1-535542-8
Avnet Americas - Rail/Tube (Alt: 1-535542-8) COO: China RoHS: Not Compliant Min Qty: 720 Package Multiple: 720 Lead time: 15 Weeks, 5 Days Container: Tube 0
  • 720 $4.4414
  • 1,440 $3.8021
  • 2,880 $3.7828
  • 4,320 $3.7635
  • 5,760 $3.7442
$3.7442 / $4.4414 Buy Now
DISTI # 72054284
RS CONNECTOR, AMPMODU, 36 MODIV VRT DR CE 100/130 Min Qty: 720 Package Multiple: 1 Container: Bulk 0
  • 720 $8.7400
  • 14,400 $8.3000
  • 36,000 $8.0400
$8.0400 / $8.7400 RFQ
DISTI # AMP1-535542-8
Heilind Electronics 36 MODIV VRT DR CE 100/130 Americas - 0 in Stock
  • 720 $4.6403
  • 1,620 $4.1876
$4.1876 / $4.6403 Buy Now
DISTI # AMP1-535542-8
Interstate Connecting Components 36 MODIV VRT DR CE 100/130 0
  • 720 $4.6403
  • 1,620 $4.1876
$4.1876 / $4.6403 Buy Now
DISTI # 000000000000858321
Sager Headers & Wire Housings 36 MODIV VRT DR CE 100/130 Min Qty: 720 0
  • 720 $5.1800
$5.1800 Buy Now

US Tariff Estimator: 1-535542-8 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

1-535542-8
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 1-535542-8

1-535542-8 Part Data Attributes

Parametric Data
1-535542-8 TE Connectivity
Buy Now Datasheet
Compare Parts:
1-535542-8 TE Connectivity 36 MODIV VRT DR CE 100/130
Pbfree Code No
Rohs Code No
Part Life Cycle Code Active
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 15 Weeks, 5 Days
Additional Feature Low Profile
Body Depth 0.198 Inch
Body/Shell Style Receptacle
Connector Type Board Connector
Contact Finish Mating Not Applicable
Contact Gender Female
Contact Material Not Applicable
DIN Conformance No
Dielectric Withstanding Voltage 750vac V
EMI Shielded No
Empty Shell Yes
Filter Feature No
IEC Conformance No
Insulation Resistance 5000000000 Ω
Insulator Color Black
Insulator Material Glass Filled Polyester
MIL Conformance No
Mains Connector Rating 3a
Mating Contact Row Spacing 0.15 Inch
Mixed Contacts No
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -65 °C
Option General Purpose
Panel Mount No
Plating Thickness 30u Inch
Rated Current (Signal) 3 A
Reference Standard Csa, Lr, U
Terminal Length 0.13 Inch
Terminal Pitch 2.54 Mm
Termination Type Solder
Total Number of Contacts 36
UL Flammability Code 94V-0

Alternate Parts for 1-535542-8

This table gives cross-reference parts and alternative options found for 1-535542-8. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1-535542-8, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
6-926476-8 TE Connectivity Check for Price 18P MOD4 BUCHSENGEH 1-535542-8 vs 6-926476-8
