1-826634-0 by: TE Connectivity

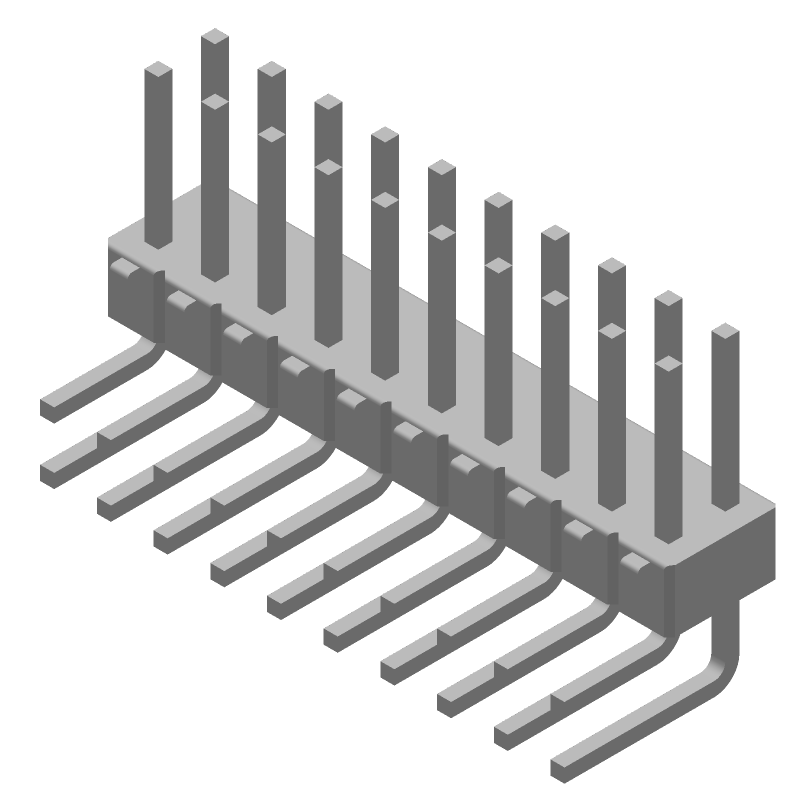

MOD2 PIN HEADER 10P

Part Details for 1-826634-0 by TE Connectivity

Results Overview of 1-826634-0 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

1-826634-0 Information

1-826634-0 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
