Diodes / Transient Suppressors / 1.5KE15A
Datasheets
1.5KE15A by:
Littelfuse Inc

Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-201, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for 1.5KE15A by Littelfuse Inc

Results Overview of 1.5KE15A by Littelfuse Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1.5KE15A Information

1.5KE15A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1.5KE15A

Part # Distributor Description Stock Price Buy
DISTI # 72K7352
Newark Tvs Diode, 1.5Kw, 15V, Do-201, Product Range:1.5Ke Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:12.8V, Clamping Voltage Max:21.2V, Diode Case Style:Do-201, No. Of Pins:2Pins, Minimum Breakdown Voltage:14.3V Rohs Compliant: Yes |Littelfuse 1.5KE15A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1323
  • 1 $0.5100
$0.5100 Buy Now
DISTI # 08R0802
Newark Tvs Diode, 1.5Kw, 15V, Do-201, Full Reel, Product Range:1.5Ke Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:12.8V, Clamping Voltage Max:21.2V, Diode Case Style:Do-201, No. Of Pins:2Pins, Minimum Breakdown Voltage:143Vrohs Compliant: Yes |Littelfuse 1.5KE15A RoHS: Compliant Min Qty: 1200 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,200 $0.3420
  • 2,400 $0.3330
  • 4,800 $0.3040
  • 7,200 $0.2750
  • 12,000 $0.2530
$0.2530 / $0.3420 Buy Now
DISTI # 70184774
RS DIODE, TVS, FOR DATA/COMM, INDUSTRIAL EQUIP, 71.7A, THRU-HOLE, SOLDER TERM Min Qty: 1 Package Multiple: 1 Container: Bulk 78
  • 1 $0.5000
  • 5 $0.4600
  • 10 $0.4250
  • 100 $0.3900
  • 250 $0.3500
$0.3500 / $0.5000 Buy Now
Bristol Electronics   Min Qty: 7 502
  • 7 $0.7500
  • 21 $0.3750
  • 135 $0.2250
$0.2250 / $0.7500 Buy Now
DISTI # 1.5KE15A-LF
TME Diode: TVS, 1.5kW, 15V, 71.7A, unidirectional, ±5%, DO201, reel,tape Min Qty: 1 990
  • 1 $0.4900
  • 10 $0.3850
  • 25 $0.3510
  • 50 $0.3260
  • 100 $0.3020
  • 500 $0.2460
  • 1,000 $0.2220
  • 1,200 $0.2160
  • 2,400 $0.1920
  • 3,600 $0.1780
$0.1780 / $0.4900 Buy Now
DISTI # 1.5KE15A
IBS Electronics 1.5KE SERIES 21.2 V 1.5 KW THROUGH HOLE UNI-DIRECTIONAL TVS DIODE - DO-201 Min Qty: 304 Package Multiple: 1 2400
  • 304 $0.4125
  • 1,200 $0.1792
  • 3,600 $0.1750
  • 6,000 $0.1736
  • 12,000 $0.1722
  • 24,000 $0.1680
$0.1680 / $0.4125 Buy Now
Component Electronics, Inc BULK TAPE 10
  • 1 $0.7700
  • 100 $0.5800
  • 1,000 $0.5000
$0.5000 / $0.7700 Buy Now
LCSC 71.7A 1.5kW 21.2V 14.3V Unidirectional 12.8V DO-201 TVS Diodes RoHS 395
  • 5 $0.3246
  • 50 $0.2540
  • 150 $0.2238
  • 1,200 $0.1861
  • 2,400 $0.1693
  • 4,800 $0.1592
$0.1592 / $0.3246 Buy Now
New Advantage Corporation 1.5KE Series 21.2 V 1.5 kW Through Hole Uni-Directional TVS Diode - DO-201 RoHS: Compliant Min Qty: 1 Package Multiple: 1200 2400
  • 1,200 $0.2833
  • 2,400 $0.2615
$0.2615 / $0.2833 Buy Now

US Tariff Estimator: 1.5KE15A by Littelfuse Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

1.5KE15A
Littelfuse Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 1.5KE15A

1.5KE15A CAD Models

  • Part Symbol

    schematic symbol

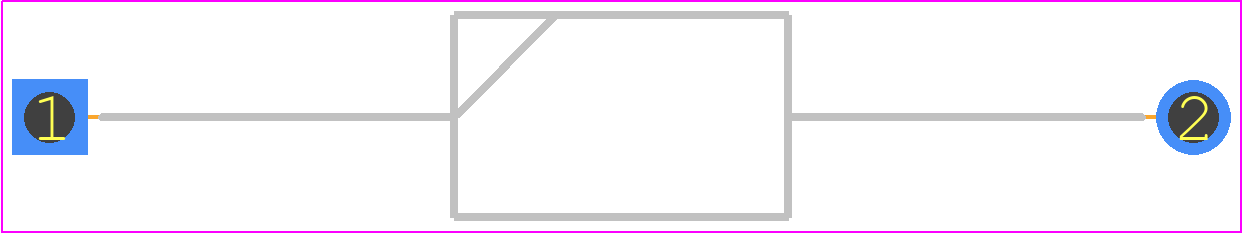

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1.5KE15A Part Data Attributes

Parametric Data
1.5KE15A Littelfuse Inc
Buy Now Datasheet
Compare Parts:
1.5KE15A Littelfuse Inc Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-201, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Pin Count 2
Manufacturer Package Code CASE 8
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Additional Feature Excellent Clamping Capability
Breakdown Voltage-Max 15.8 V
Breakdown Voltage-Min 14.3 V
Breakdown Voltage-Nom 15 V
Case Connection Isolated
Clamping Voltage-Max 21.2 V
Configuration Single
Diode Element Material Silicon
Diode Type Trans Voltage Suppressor Diode
JEDEC-95 Code DO-201
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material Plastic/Epoxy
Package Shape Round
Package Style Long Form
Peak Reflow Temperature (Cel) 265
Polarity Unidirectional
Power Dissipation-Max 6.5 W
Qualification Status Not Qualified
Reference Standard Ul Recognized
Rep Pk Reverse Voltage-Max 12.8 V
Surface Mount No
Technology Avalanche
Terminal Finish Matte Tin
Terminal Form Wire
Terminal Position Axial
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for 1.5KE15A

This table gives cross-reference parts and alternative options found for 1.5KE15A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5KE15A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1.5KE15A-H Formosa Microsemi Co Ltd Check for Price Trans Voltage Suppressor Diode 1.5KE15A vs 1.5KE15A-H
1.5KE15A General Instrument Corp Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-201, 1.5KE15A vs 1.5KE15A
1.5KE15A Semtech Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-201, 1.5KE15A vs 1.5KE15A
1.5KE15A Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 1500W, Unidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2 1.5KE15A vs 1.5KE15A
1.5KE15AE3/TR Microsemi Corporation (now Microchip) Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, CASE 1, 2 PIN 1.5KE15A vs 1.5KE15AE3/TR
1.5KE15 Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 1500W, 12.1V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2 1.5KE15A vs 1.5KE15
1.5KE15AHB0G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-201, 1.5KE15A vs 1.5KE15AHB0G
1.5KE15 Yangzhou Yangjie Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 12.1V V(RWM), Unidirectional 1.5KE15A vs 1.5KE15
1.5KE15AHB0 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-201, 1.5KE15A vs 1.5KE15AHB0
1.5KE15 Daco Semiconductor Co Ltd Check for Price Transient Suppressor 1.5KE15A vs 1.5KE15
Part Number Manufacturer Composite Price Description Compare
1.5KA15A-1 Vishay Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, CASE 1.5KA, 2 PIN 1.5KE15A vs 1.5KA15A-1
1.5KE15A_B0_10001 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AE, ROHS COMPLIANT, PLASTIC PACKAGE-2 1.5KE15A vs 1.5KE15A_B0_10001
1.5KE15-AP Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AE, ROHS COMPLIANT, PLASTIC PACKAGE-2 1.5KE15A vs 1.5KE15-AP
1.5KE15 Motorola Semiconductor Products Check for Price Trans Voltage Suppressor Diode, 1500W, 12.1V V(RWM), Unidirectional, 1 Element, Silicon 1.5KE15A vs 1.5KE15
1.5KE15AG Littelfuse Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, LEAD FREE, PLASTIC, CASE 41A-04, 2 PIN 1.5KE15A vs 1.5KE15AG
1.5KA15AHE3/54 Vishay Semiconductors Check for Price DIODE 1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, ROHS COMPLIANT, PLASTIC, CASE 1.5KA, 2 PIN, Transient Suppressor 1.5KE15A vs 1.5KA15AHE3/54
1.5KE15AD1 Yangzhou Yangjie Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 1.5KE15A vs 1.5KE15AD1
1.5SE15A Semicon Components Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 13V V(RWM), Unidirectional, 1 Element, Silicon 1.5KE15A vs 1.5SE15A
1.5KE15ARL4 onsemi Check for Price 1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, PLASTIC, CASE 41A-04, 2 PIN 1.5KE15A vs 1.5KE15ARL4
1.5KE15T Littelfuse Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-201, ROHS COMPLIANT, PLASTIC PACKAGE-2 1.5KE15A vs 1.5KE15T
