Diodes / Transient Suppressors / 1.5KE300ARL
Datasheets
1.5KE300ARL by: STMicroelectronics

1500 W, TVS in DO-201

Part Details for 1.5KE300ARL by STMicroelectronics

Results Overview of 1.5KE300ARL by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1.5KE300ARL Information

1.5KE300ARL by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1.5KE300ARL

Part # Distributor Description Stock Price Buy
DISTI # 1.5KE300ARL
Avnet Americas Diode TVS Single Uni-Dir 256V 1.5KW 2-Pin DO-201 T/R - Tape and Reel (Alt: 1.5KE300ARL) COO: China RoHS: Compliant Min Qty: 1900 Package Multiple: 1900 Container: Reel 0
  • 1,900 $0.4709
  • 3,800 $0.4586
  • 7,600 $0.4497
  • 15,200 $0.4389
  • 30,400 $0.4287
$0.4287 / $0.4709 Buy Now
STMicroelectronics 1500 W, 256 V TVS in DO-201 COO: France RoHS: Compliant Min Qty: 1 119
  • 1 $1.5600
  • 10 $1.0800
  • 100 $0.7600
  • 500 $0.5400
$0.5400 / $1.5600 Buy Now
DISTI # 1.5KE300ARL-ST
TME Diode: TVS, 1.5kW, 300V, 5A, unidirectional, DO201, reel,tape Min Qty: 1 0
  • 1 $1.6900
  • 10 $1.1620
  • 100 $0.8300
  • 250 $0.7250
  • 500 $0.6550
  • 1,200 $0.5760
  • 1,900 $0.5400
  • 3,800 $0.4870
$0.4870 / $1.6900 RFQ
DISTI # 1.5KE300ARL
IBS Electronics DIODE TVS SINGLE UNI-DIR 256V 1.5KW 2-PIN DO-201 T/R Min Qty: 3800 Package Multiple: 1 0
  • 3,800 $0.4480
  • 3,800 $0.4410
  • 5,700 $0.4410
$0.4410 / $0.4480 Buy Now
DISTI # 1.5KE300ARL
Avnet Silica Diode TVS Single UniDir 256V 15KW 2Pin DO201 TR (Alt: 1.5KE300ARL) RoHS: Compliant Min Qty: 1900 Package Multiple: 1900 Lead time: 17 Weeks, 0 Days Silica - 134900
Buy Now
Chip Stock DiodeTVSSingleUni-Dir256V1.5KW2-PinDO-201T/R 15950
RFQ
DISTI # 1.5KE300ARL
EBV Elektronik Diode TVS Single UniDir 256V 15KW 2Pin DO201 TR (Alt: 1.5KE300ARL) RoHS: Compliant Min Qty: 1900 Package Multiple: 1900 Lead time: 27 Weeks, 0 Days EBV - 0
Buy Now

Part Details for 1.5KE300ARL

1.5KE300ARL CAD Models

  • Part Symbol

    schematic symbol

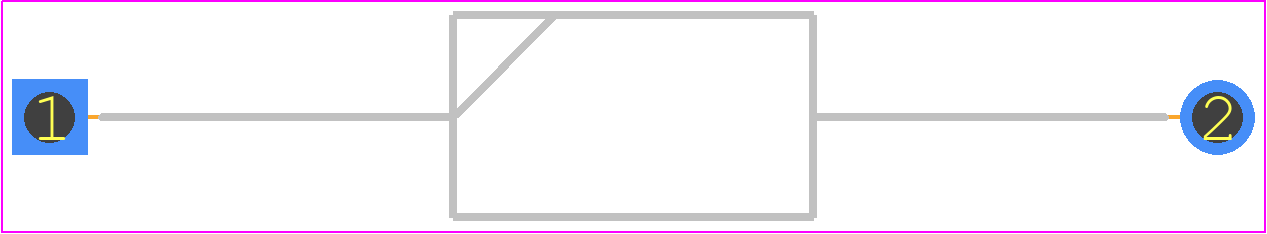

  • Footprint

    pcb footprint

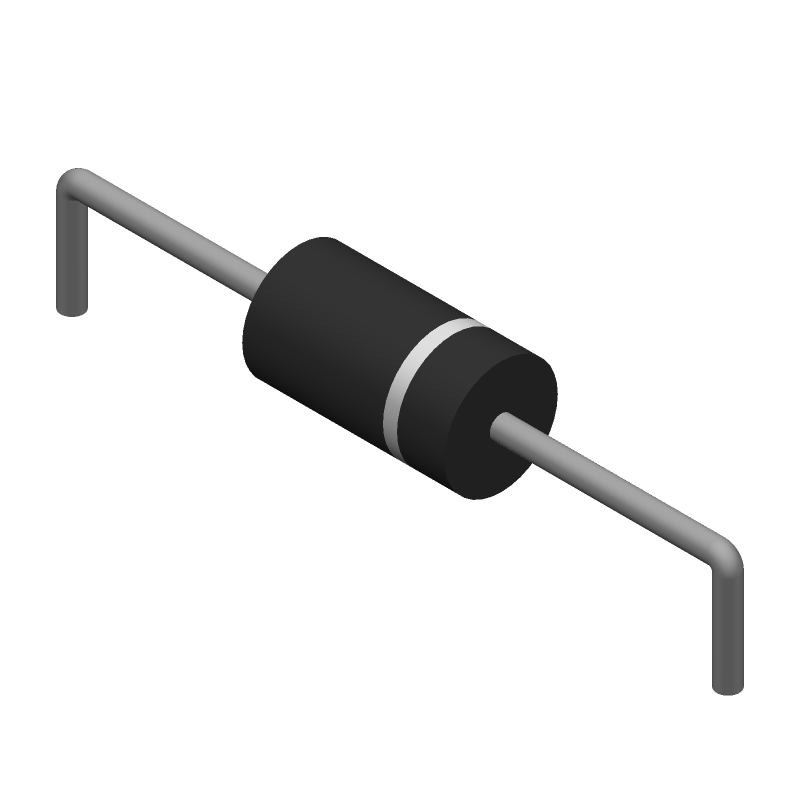

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1.5KE300ARL Part Data Attributes

Parametric Data
1.5KE300ARL STMicroelectronics
Buy Now Datasheet
Compare Parts:
1.5KE300ARL STMicroelectronics 1500 W, TVS in DO-201
Part Life Cycle Code Active
Part Package Code DO-201
Package Description O-Palf-W2
Pin Count 2
Reach Compliance Code Compliant
Factory Lead Time 25 Weeks
Additional Feature Ul Recognized
Breakdown Voltage-Max 315 V
Breakdown Voltage-Min 285 V
Breakdown Voltage-Nom 300 V
Case Connection Isolated
Clamping Voltage-Max 529 V
Configuration Single
Diode Capacitance-Min 500 Pf
Diode Element Material Silicon
Diode Type Trans Voltage Suppressor Diode
JEDEC-95 Code DO-201
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level Not Applicable
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Package Body Material Plastic/Epoxy
Package Shape Round
Package Style Long Form
Peak Reflow Temperature (Cel) Not Specified
Polarity Unidirectional
Power Dissipation-Max 5 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 256 V
Reverse Current-Max 5 µA
Surface Mount No
Technology Avalanche
Terminal Finish Matte Tin
Terminal Form Wire
Terminal Position Axial
Time@Peak Reflow Temperature-Max (s) Not Specified

Alternate Parts for 1.5KE300ARL

This table gives cross-reference parts and alternative options found for 1.5KE300ARL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5KE300ARL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1.5KE300A-GT3 Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, 256V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AE, LEAD FREE, PLASTIC PACKAGE-2 1.5KE300ARL vs 1.5KE300A-GT3
1V5KE300A onsemi Check for Price 1500 Watt Transient Voltage Suppressors, 1250-REEL 1.5KE300ARL vs 1V5KE300A
1V5KE300A Fairchild Semiconductor Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 256V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AE, DO-201AE, 2 PIN 1.5KE300ARL vs 1V5KE300A
Part Number Manufacturer Composite Price Description Compare
1.5KE300A-T3 Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, Unidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2 1.5KE300ARL vs 1.5KE300A-T3
