Part Details for 10090929-S264XLF by Amphenol Communications Solutions
Results Overview of 10090929-S264XLF by Amphenol Communications Solutions
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
10090929-S264XLF Information
10090929-S264XLF by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10090929-S264XLF | Amphenol Communications Solutions | D-Sub High Density Board Mount Connectors, Input Output Connectors, 26-Way Female Straight, 200 Mating cycles | |
| 10090929-S266VLF | Amphenol Communications Solutions | D-Sub High Density Board Mount Connectors, Input Output Connectors, 26-Way Female Straight, >500 Mating cycles | |
| 10090929-S444XLF | Amphenol Communications Solutions | D-Sub High Density Board Mount Connectors, Input Output Connectors, 44-Way Female Straight, 200 Mating cycles |
Price & Stock for 10090929-S264XLF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
30AK5080
|
Newark | Hd-D Sub Conn, Rcpt, 26Pos, Da, Solder Rohs Compliant: Yes |Amphenol Communications Solutions 10090929-S264XLF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1533 |
|
$2.3800 / $2.9600 | Buy Now |
US Tariff Estimator: 10090929-S264XLF by Amphenol Communications Solutions
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 10090929-S264XLF
10090929-S264XLF CAD Models
-

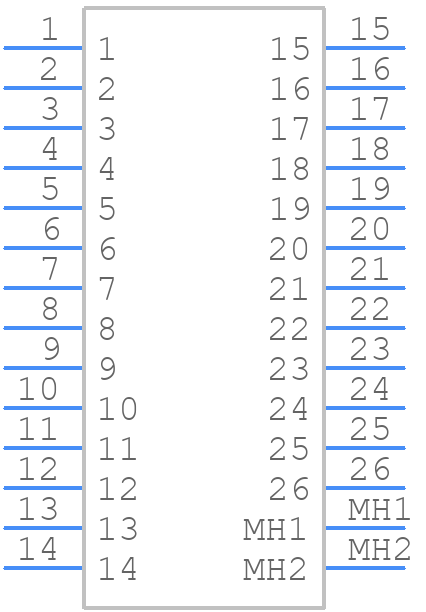

Part Symbol
-

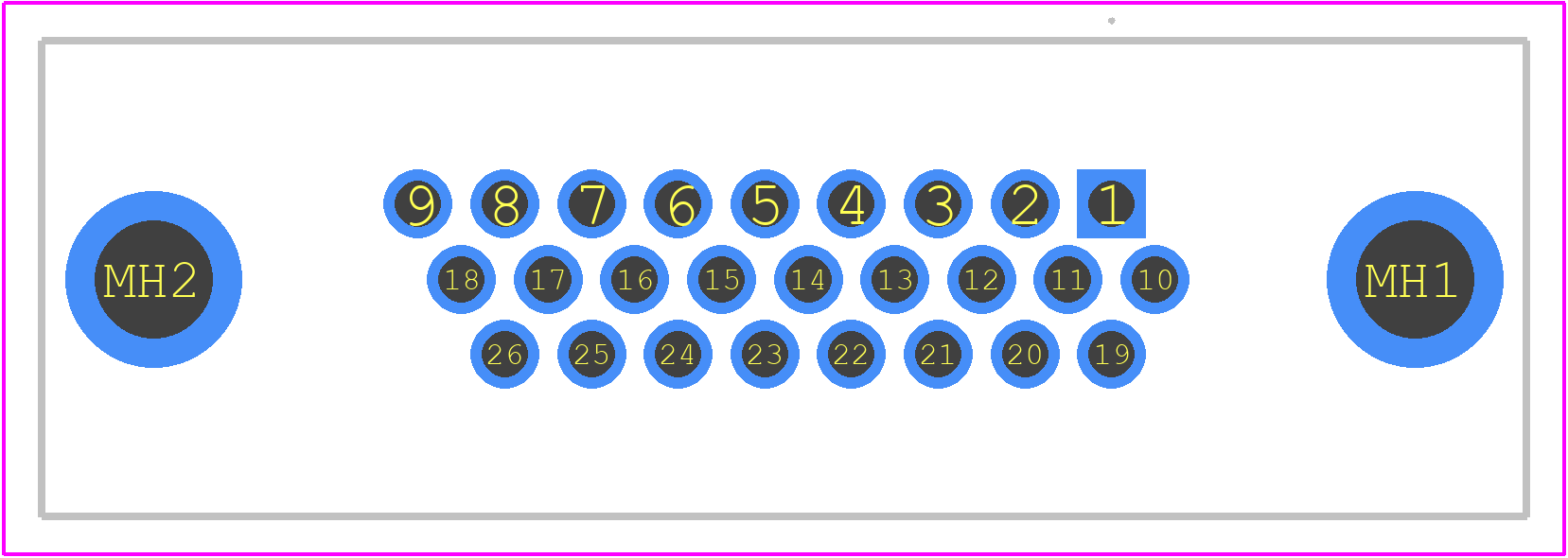

Footprint
-

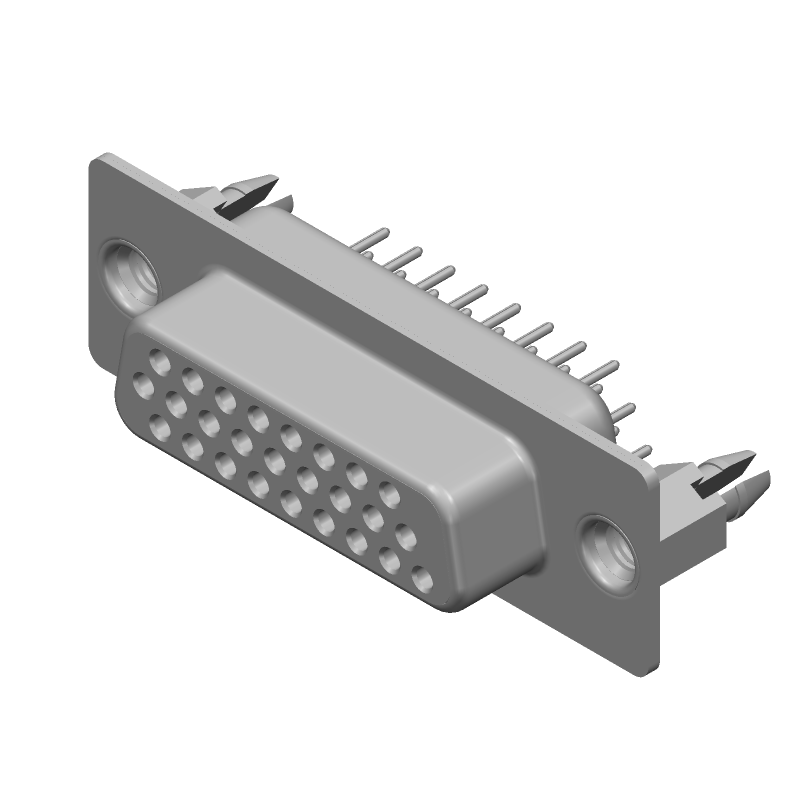

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
10090929-S264XLF Part Data Attributes
|
|
10090929-S264XLF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
10090929-S264XLF
Amphenol Communications Solutions
D-Sub High Density Board Mount Connectors, Input Output Connectors, 26-Way Female Straight, 200 Mating cycles
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Pin Count | 26 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Board Mounting Option | SPLIT BOARD LOCK | |
| Body Breadth | 0.494 inch | |
| Body Depth | 0.24 inch | |
| Body Length | 1.545 inch | |
| Connector Type | D SUBMINIATURE CONNECTOR | |
| Contact Finish Mating | GOLD FLASH OVER NICKEL | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Material | COPPER ALLOY | |
| Contact Pattern | STAGGERED | |
| Contact Resistance | 40 mΩ | |
| Contact Style | RND PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 1100VAC V | |
| Durability | 200 Cycles | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 5 N | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.09 inch | |
| Mating Contact Row Spacing | 0.078 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | #4-40 | |
| Mounting Option 2 | CLINCH NUT | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 3 | |
| Number of Rows Loaded | 3 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | STAGGERED | |
| PCB Contact Row Spacing | 1.98 mm | |
| Plating Thickness | FLASH inch | |
| Rated Current (Signal) | 2.5 A | |
| Reference Standard | UL | |
| Shell Finish | NICKEL | |
| Shell Material | CARBON STEEL | |
| Shell Size | 2/A | |
| Terminal Length | 0.165 inch | |
| Terminal Pitch | 2.29 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 26 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | 0.2 N |
Alternate Parts for 10090929-S264XLF
This table gives cross-reference parts and alternative options found for 10090929-S264XLF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 10090929-S264XLF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| K66XHT-A26S-NVR30 | Kycon Inc | Check for Price | D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT | 10090929-S264XLF vs K66XHT-A26S-NVR30 |
| K66XHT-A26S-NVR15 | Kycon Inc | Check for Price | D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT | 10090929-S264XLF vs K66XHT-A26S-NVR15 |
| K66X-A26S-NV30 | Kycon Inc | Check for Price | D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT | 10090929-S264XLF vs K66X-A26S-NV30 |
| DV11303-H4R6-4F | Foxconn | Check for Price | D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Plug, LEAD FREE | 10090929-S264XLF vs DV11303-H4R6-4F |
| DV11301-H4R6-4F | Foxconn | Check for Price | D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Plug, LEAD FREE | 10090929-S264XLF vs DV11301-H4R6-4F |
| K66XHT-A26S-NR | Kycon Inc | Check for Price | D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT | 10090929-S264XLF vs K66XHT-A26S-NR |
| 1888202-1 | TE Connectivity | Check for Price | 26 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | 10090929-S264XLF vs 1888202-1 |
| K66XHT-A26S-NR30 | Kycon Inc | Check for Price | D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT | 10090929-S264XLF vs K66XHT-A26S-NR30 |
| K66XHT-A26S-NVJ15 | Kycon Inc | Check for Price | D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT | 10090929-S264XLF vs K66XHT-A26S-NVJ15 |
| K66XHT-A26S-NVJ | Kycon Inc | Check for Price | D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT | 10090929-S264XLF vs K66XHT-A26S-NVJ |
10090929-S264XLF Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 10090929-S264XLF is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and military systems.
-
The 10090929-S264XLF is part of Amphenol's S264 series, which is designed to be compatible with other S264 connectors. However, it's essential to verify the specific part number and configuration to ensure compatibility.
-
The 10090929-S264XLF has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, from industrial to military and aerospace.
-
Yes, the 10090929-S264XLF is designed to withstand harsh environments. It meets the IEC 60068-2-52 salt spray test and has a rating of IP67, which means it can withstand immersion in water up to 1 meter for 30 minutes.
