Programmable Logic / Field Programmable Gate Arrays / 10AS048H3F34E2SG
Datasheets
10AS048H3F34E2SG by:

Field Programmable Gate Array, 480000-Cell, CMOS, PBGA1152, 35 X 35 MM, ROHS COMPLIANT, FBGA-1152

Part Details for 10AS048H3F34E2SG by Intel Corporation

Results Overview of 10AS048H3F34E2SG by Intel Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

10AS048H3F34E2SG Information

10AS048H3F34E2SG by Intel Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Part Details for 10AS048H3F34E2SG

10AS048H3F34E2SG CAD Models

  • Part Symbol

    Part Symbol

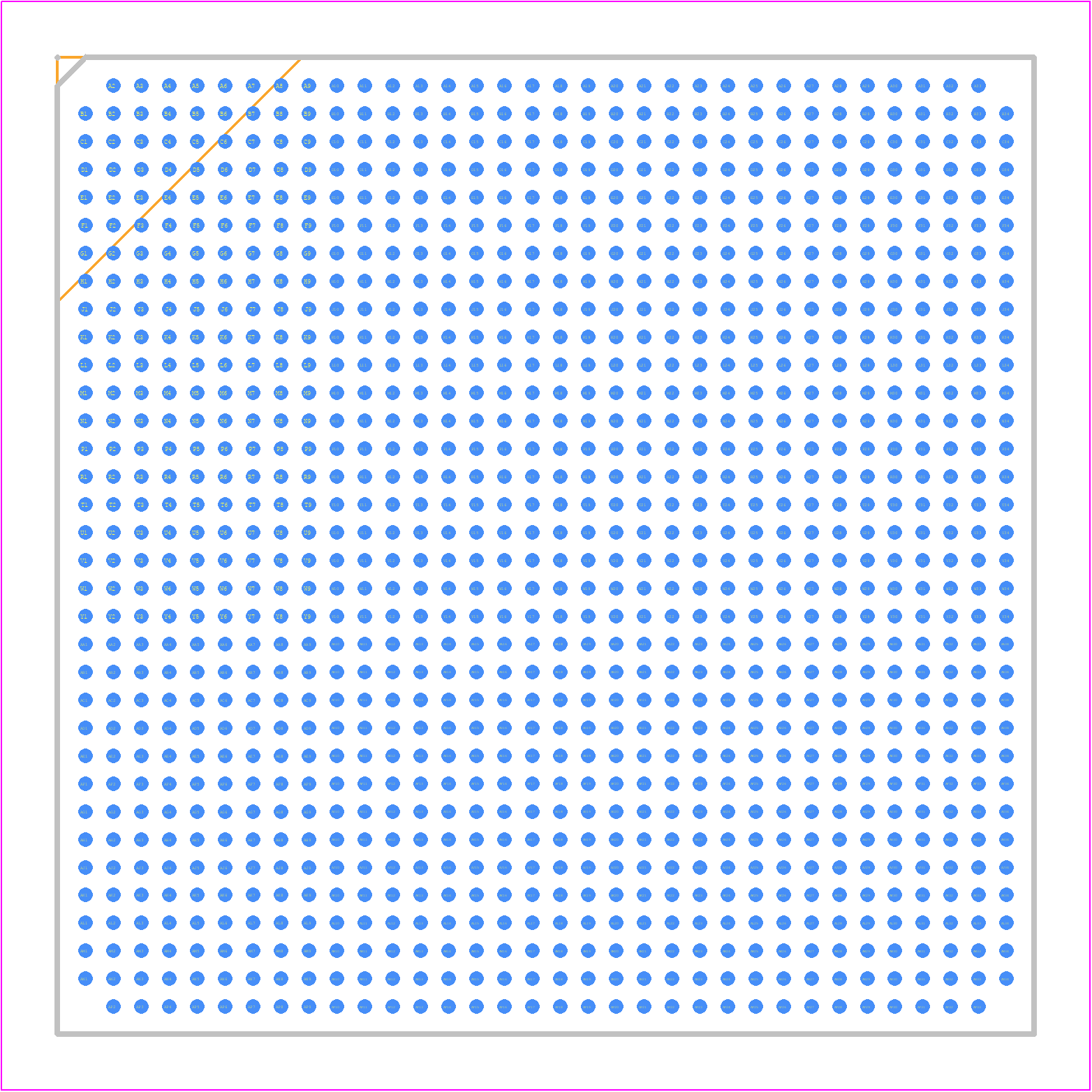

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

10AS048H3F34E2SG Part Data Attributes

Parametric Data
10AS048H3F34E2SG Intel Corporation
Buy Now Datasheet
Compare Parts:
10AS048H3F34E2SG Intel Corporation Field Programmable Gate Array, 480000-Cell, CMOS, PBGA1152, 35 X 35 MM, ROHS COMPLIANT, FBGA-1152
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEL CORP
Package Description FBGA-1152
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer Intel

10AS048H3F34E2SG Related Parts

10AS048H3F34E2SG Frequently Asked Questions (FAQ)

  • The maximum power consumption of the 10AS048H3F34E2SG FPGA is approximately 2.5W, but this can vary depending on the specific design and usage.

  • Intel recommends using a clocking scheme that includes a clock manager tile (CMT) and a phase-locked loop (PLL) to generate a stable clock signal. Additionally, it's essential to follow Intel's guidelines for clock domain crossing and clock gating.

  • To optimize your design for area and speed, use Intel's Quartus Prime software to analyze and optimize your design. This includes using the 'Optimize for Area' and 'Optimize for Speed' options, as well as using the 'Design Space Explorer' to explore different design trade-offs.

  • To ensure reliable data transfer between different clock domains, use Intel's recommended clock domain crossing (CDC) techniques, such as using synchronizers, FIFOs, or asynchronous FIFOs. Additionally, ensure that your design meets Intel's guidelines for CDC.

  • To implement a reliable reset strategy, use a synchronous reset signal, ensure that all registers are reset simultaneously, and use a reset synchronizer to ensure that the reset signal is properly synchronized across clock domains.
