12105C475KAZ2A by: Kyocera AVX Components

Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 50V, ±10%, X7R, 1210 (3225 mm), Flexiterm, -55º ~ +125ºC, 7" Reel

Part Details for 12105C475KAZ2A by Kyocera AVX Components

Results Overview of 12105C475KAZ2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

12105C475KAZ2A Information

12105C475KAZ2A by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 12105C475KAZ2A

Part # Distributor Description Stock Price Buy
DISTI # 79AK5929
Newark Capacitor, 4.7Uf, X7R, 50V, 1210 Rohs Compliant: Yes |Kyocera Avx 12105C475KAZ2A RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 1000
  • 1,000 $0.4390
  • 2,000 $0.4280
$0.4280 / $0.4390 Buy Now
DISTI # 60R6418
Newark Cap, 4.7Uf, 50V, Mlcc, 1210, Capacitance:4.7Μf, Voltage(Dc):50V, Capacitor Case/Package:1210 [3225 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:3.2Mm, Product Width:2.5Mm Rohs Compliant: Yes |Kyocera Avx 12105C475KAZ2A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 448
  • 1 $0.5230
  • 10 $0.5230
  • 25 $0.5230
  • 50 $0.5230
  • 100 $0.5230
$0.5230 Buy Now
DISTI # KGF32LR71H475KU
Avnet Americas - Tape and Reel (Alt: KGF32LR71H475KU) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel 10000
73000 Factory Stock
  • 1,000 $0.2421
  • 2,000 $0.2272
  • 4,000 $0.2260
  • 8,000 $0.2248
  • 16,000 $0.2237
$0.2237 / $0.2421 Buy Now
DISTI # 70001751
RS 1210 4700NF CERAMIC MULTILAYER CAPACITOR, 50 VDC, +125DEGC, X7R DIELEC, +/-10% Min Qty: 1000 Package Multiple: 1 Container: Bulk 0
  • 1,000 $1.1900
  • 5,000 $1.1300
  • 10,000 $1.0700
$1.0700 / $1.1900 RFQ
Bristol Electronics   2439
RFQ
DISTI # 12105C475KAZ2A
TME Capacitor: ceramic, MLCC, 4.7uF, 50V, X7R, ±10%, SMD, 1210, 180mm Min Qty: 1 847
  • 1 $1.0200
  • 50 $0.5260
  • 100 $0.4820
  • 500 $0.3800
  • 1,000 $0.3350
  • 3,000 $0.2650
  • 5,000 $0.2330
  • 6,000 $0.2220
  • 10,000 $0.1890
  • 25,000 $0.1630
$0.1630 / $1.0200 Buy Now
Chip 1 Exchange INSTOCK 21
RFQ
DISTI # KGF32LR71H475KU
Avnet Abacus - Tape and Reel (Alt: KGF32LR71H475KU) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Container: Reel Abacus - 90000
Buy Now
DISTI # 12105C475KAZ2A
Avnet Asia (Alt: 12105C475KAZ2A) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days 0
RFQ
New Advantage Corporation Cap Cer SMD 1210 4.7�F � 10% 50V X7R Flexi T&R RoHS: Compliant Min Qty: 1 Package Multiple: 1000 61000
  • 1,000 $0.1678
  • 61,000 $0.1549
$0.1549 / $0.1678 Buy Now

US Tariff Estimator: 12105C475KAZ2A by Kyocera AVX Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

12105C475KAZ2A
Kyocera AVX Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 12105C475KAZ2A

12105C475KAZ2A CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

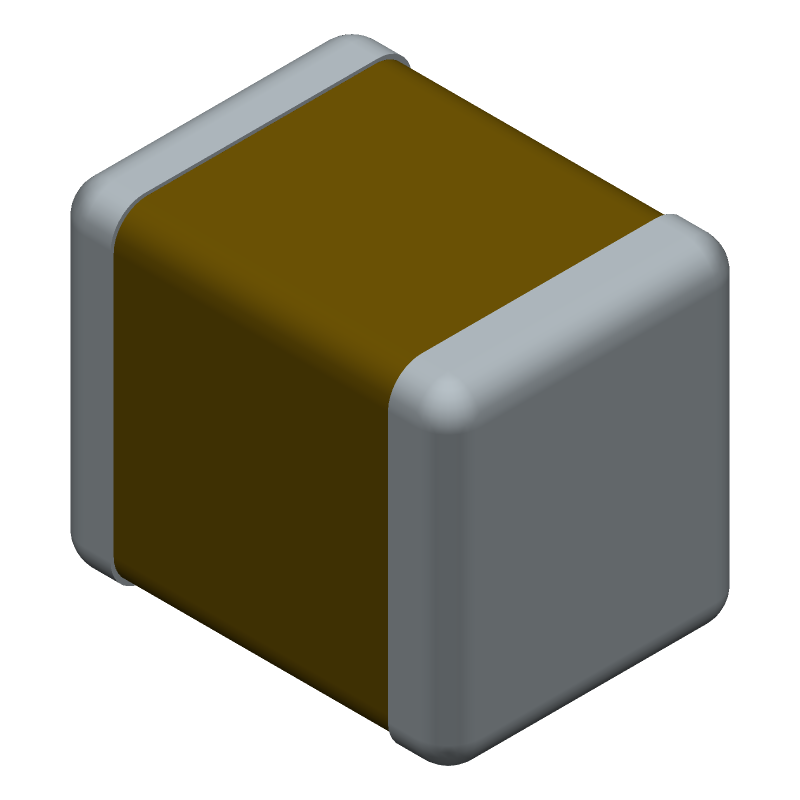

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

12105C475KAZ2A Part Data Attributes

Parametric Data
12105C475KAZ2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
12105C475KAZ2A Kyocera AVX Components Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 50V, ±10%, X7R, 1210 (3225 mm), Flexiterm, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Part Package Code 1210
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 4.7 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 2.79 mm
JESD-609 Code e3
Length 3.3 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 1210
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 2.5 mm

Alternate Parts for 12105C475KAZ2A

This table gives cross-reference parts and alternative options found for 12105C475KAZ2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 12105C475KAZ2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
12105C475KAT4A Kyocera AVX Components $0.1359 Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 50V, ±10%, X7R, 1210 (3225 mm), Sn/NiBar, -55º ~ +125ºC, 13" Reel 12105C475KAZ2A vs 12105C475KAT4A
12105C475K4T4A Kyocera AVX Components $0.2333 Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP 12105C475KAZ2A vs 12105C475K4T4A
12105C475K4Z2A Kyocera AVX Components $0.2876 Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP 12105C475KAZ2A vs 12105C475K4Z2A
AP105C475KQZ4A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT 12105C475KAZ2A vs AP105C475KQZ4A
CMC-050/475KX1210WF Tecate Group Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP 12105C475KAZ2A vs CMC-050/475KX1210WF
KAM32LR71H475KL Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP 12105C475KAZ2A vs KAM32LR71H475KL
12105C475KAT9A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP 12105C475KAZ2A vs 12105C475KAT9A
AP105C475KQZ2A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT 12105C475KAZ2A vs AP105C475KQZ2A
12105C475KAZ4A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP 12105C475KAZ2A vs 12105C475KAZ4A
12105C475K4U2A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1210, CHIP 12105C475KAZ2A vs 12105C475K4U2A
equivalents icon

12105C475KAZ2A Related Parts

12105C475KAZ2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 12105C475KAZ2A is 260°C (500°F) for a maximum of 10 seconds.

  • Yes, the 12105C475KAZ2A capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.

  • The maximum operating voltage for the 12105C475KAZ2A is 50V DC.

  • Yes, the 12105C475KAZ2A is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • No, the 12105C475KAZ2A is a non-polarized capacitor, meaning it can be used in AC or DC circuits without worrying about polarity.
