1532184-3 Information
1532184-3 by TE Connectivity is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 1532184-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73AC9580
|
Newark | M83513/03-F03N, Mcks-N1-B-37P6G9-18.0 |Te Connectivity 1532184-3 RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$159.4500 | Buy Now |
|
DISTI #
1532184-3
|
Avnet Americas | - Bag (Alt: 1532184-3) COO: Mexico RoHS: Compliant Min Qty: 100 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bag | 0 |
|
$183.6864 / $187.5132 | Buy Now |
|
DISTI #
71335890
|
RS | M83513/03-F03N, MCKS-N1-B-37P6G9-18.0 Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$194.2000 | RFQ |
|
DISTI #
AMP1532184-3
|
Heilind Electronics | M83513/03-F03N, MCKS-N1-B-37P6 | Americas - 0 in Stock |
|
Buy Now | |
|
DISTI #
AMP1532184-3
|
Interstate Connecting Components | M83513/03-F03N, MCKS-N1-B-37P6 | 0 |
|
Buy Now | |
|
DISTI #
1532184-3
|
Avnet Abacus | M8351303F03N MCKSN1B37P6G9180 (Alt: 1532184-3) RoHS: Compliant Min Qty: 100 Package Multiple: 1 Lead time: 113 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Active | 963 |
|
RFQ |
US Tariff Estimator: 1532184-3 by TE Connectivity
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1532184-3

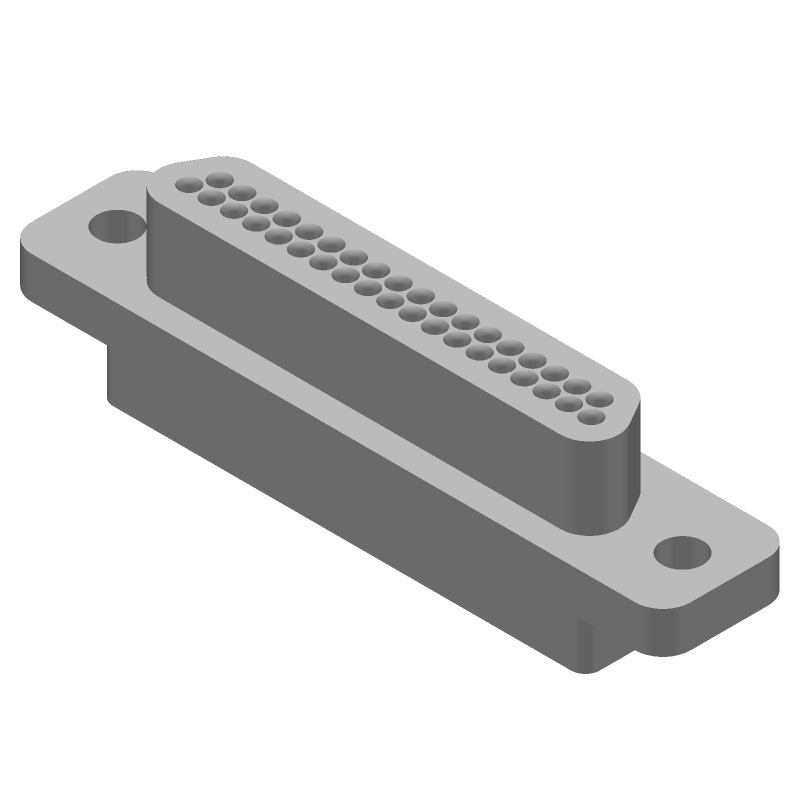

1532184-3 CAD Models
-
