16SEPF560M by:
Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for 16SEPF560M by Panasonic Electronic Components

Results Overview of 16SEPF560M by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research Industrial Automation Audio and Video Systems Electronic Manufacturing Entertainment and Gaming

16SEPF560M Information

16SEPF560M by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 16SEPF560M

Part # Distributor Description Stock Price Buy
DISTI # 86Y9772
Newark Cap, Alu Elec, Polymer, 560Uf, 16V, Rad, Capacitance:560Μf, Voltage(Dc):16V, Capacitor Case/Package:Radial Leaded, Esr:0.014Ohm, Lifetime @ Temperature:5000 Hours @ 105°C, Capacitance Tolerance:± 20%, Capacitor Terminals:Pc Pin Rohs Compliant: Yes |Panasonic 16SEPF560M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 190
  • 1 $1.9200
  • 10 $1.1000
  • 25 $1.0800
  • 50 $1.0500
  • 100 $1.0300
  • 500 $1.0000
  • 1,000 $0.9800
$0.9800 / $1.9200 Buy Now
DISTI # 16SEPF560M
Avnet Americas - Bulk (Alt: 16SEPF560M) COO: Japan RoHS: Compliant Min Qty: 800 Package Multiple: 200 Lead time: 26 Weeks, 0 Days Container: Bulk 0
  • 800 $0.6734
  • 1,600 $0.5421
  • 3,200 $0.5393
  • 6,400 $0.5365
  • 12,800 $0.5338
$0.5338 / $0.6734 Buy Now
DISTI # 70324156
RS CAPACITOR, ALUMINUM ORGANIC POLYMER, 16VDC,560UF,14MOHM,8X12MM, BULK Min Qty: 200 Package Multiple: 1 Container: Bulk 0
  • 200 $1.5900
  • 2,000 $1.5100
  • 10,000 $1.4300
  • 20,000 $1.3600
$1.3600 / $1.5900 RFQ
Bristol Electronics   Min Qty: 3 1200
  • 3 $1.6770
  • 13 $1.0900
  • 47 $0.6289
  • 161 $0.5366
  • 346 $0.4696
  • 821 $0.4360
$0.4360 / $1.6770 Buy Now
DISTI # 16SEPF560M
TME Capacitor: polymer, 560uF, 16VDC, THT, ±20%, Body dim: Ø8x12mm, 14mΩ Min Qty: 200 0
  • 200 $0.7400
$0.7400 RFQ
DISTI # 16SEPF560M
Avnet Abacus (Alt: 16SEPF560M) RoHS: Compliant Min Qty: 600 Package Multiple: 200 Lead time: 51 Weeks, 0 Days Abacus - 0
Buy Now
LCSC 16V 560uF Polymer 20% 4.95A100kHz Through HoleD8xL12mm Aluminum - Polymer Capacitors RoHS 64
  • 1 $1.4650
  • 10 $1.1572
  • 30 $1.0033
  • 100 $0.8510
  • 500 $0.7604
  • 1,000 $0.7122
$0.7122 / $1.4650 Buy Now

US Tariff Estimator: 16SEPF560M by Panasonic Electronic Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

16SEPF560M
Panasonic Electronic Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 16SEPF560M

16SEPF560M CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

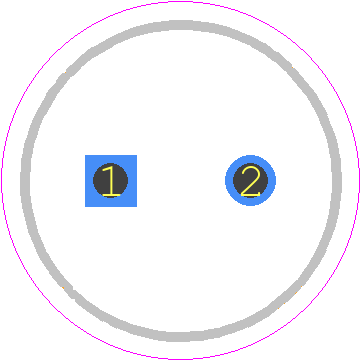

    pcb footprint
