16SVP100M by:
Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT

Part Details for 16SVP100M by Panasonic Electronic Components

Results Overview of 16SVP100M by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

16SVP100M Information

16SVP100M by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 16SVP100M

Part # Distributor Description Stock Price Buy
DISTI # 17AC7271
Newark Cap, Alu Elec, Polymer, 100Uf, 16V, Smd, Capacitance:100Μf, Voltage(Dc):16V, Capacitor Case/Package:Radial Can - Smd, Esr:0.035Ohm, Lifetime @ Temperature:2000 Hours @ 105°C, Capacitance Tolerance:± 20%, Capacitor Terminals:Solder Rohs Compliant: Yes |Panasonic 16SVP100M RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Reel 1000
  • 500 $0.9600
  • 1,000 $0.9360
  • 2,000 $0.9090
  • 3,000 $0.8810
  • 5,000 $0.8460
$0.8460 / $0.9600 Buy Now
DISTI # 79AH8967
Newark Cap Ta Polymer 100Uf 16Vdc 35M Ohm Smd 10 X 8Mm Rohs Compliant: Yes |Panasonic 16SVP100M RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 500
  • 500 $0.8840
$0.8840 Buy Now
DISTI # 99AC4822
Newark Cap, Alu Elec, Polymer, 100Uf, 16V, Smd, Capacitance:100Μf, Voltage(Dc):16V, Capacitor Case/Package:Radial Can - Smd, Esr:0.035Ohm, Lifetime @ Temperature:2000 Hours @ 105°C, Capacitance Tolerance:± 20%, Capacitor Terminals:Solder Rohs Compliant: Yes |Panasonic 16SVP100M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 390
  • 1 $0.8800
  • 10 $0.8070
  • 25 $0.8070
$0.8070 / $0.8800 Buy Now
DISTI # 16SVP100M
Avnet Americas - Tape and Reel (Alt: 16SVP100M) COO: Japan RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 26 Weeks, 0 Days Container: Reel 500
  • 500 $0.4667
  • 1,000 $0.4627
  • 2,000 $0.4548
  • 4,000 $0.4469
  • 8,000 $0.4389
$0.4389 / $0.4667 Buy Now
DISTI # 99AC4822
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 99AC4822) COO: Japan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 420 Partner Stock
  • 1 $1.4800
  • 10 $1.1500
  • 25 $1.1400
  • 500 $0.6460
  • 1,000 $0.6010
$0.6010 / $1.4800 Buy Now
DISTI # 70324200
RS CAPACITOR, ALUMINUM ORGANIC POLYMER, 16VDC,100UF,35MOHM,10X8MM, T&R Min Qty: 500 Package Multiple: 1 Container: Bulk 0
  • 500 $1.5100
  • 5,000 $1.4300
  • 25,000 $1.3600
  • 50,000 $1.2900
$1.2900 / $1.5100 RFQ
Bristol Electronics   Min Qty: 4 1538
  • 4 $1.3125
  • 17 $0.8531
  • 60 $0.4922
  • 205 $0.4200
  • 442 $0.3675
  • 1,049 $0.3412
$0.3412 / $1.3125 Buy Now
DISTI # 16SVP100M
TME Capacitor: polymer, 100uF, 16VDC, SMD, OS-CON SVP, ±20%, Ø10x7.9mm Min Qty: 1 0
  • 1 $1.2000
  • 10 $0.9600
  • 50 $0.8400
  • 100 $0.8000
  • 200 $0.7500
  • 500 $0.7200
$0.7200 / $1.2000 RFQ
DISTI # 16SVP100M
Avnet Abacus - Tape and Reel (Alt: 16SVP100M) RoHS: Compliant Min Qty: 1000 Package Multiple: 500 Lead time: 35 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # 16SVP100M
Avnet Asia (Alt: 16SVP100M) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 22 Weeks, 0 Days 0
RFQ
DISTI # 16SVP100M
Chip One Stop Passives RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 319
  • 1 $1.2400
  • 10 $0.9150
  • 50 $0.8330
  • 250 $0.7780
  • 500 $0.6310
$0.6310 / $1.2400 Buy Now
LCSC 16V 100uF Polymer 20% 35m 133.5mA120Hz SMDD10xL8mm Aluminum - Polymer Capacitors RoHS 244
  • 1 $0.7039
  • 10 $0.5724
  • 30 $0.5059
  • 100 $0.4394
  • 500 $0.3574
  • 1,000 $0.3373
$0.3373 / $0.7039 Buy Now
New Advantage Corporation SVP Series 16 V 100 uF � 10 x 8 mm Surface Mount Polymer Aluminum Capacitor RoHS: Compliant Min Qty: 1 Package Multiple: 500 1000
  • 500 $0.8000
  • 1,000 $0.7385
$0.7385 / $0.8000 Buy Now

US Tariff Estimator: 16SVP100M by Panasonic Electronic Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

16SVP100M
Panasonic Electronic Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 16SVP100M

16SVP100M CAD Models

  • Part Symbol

    schematic symbol

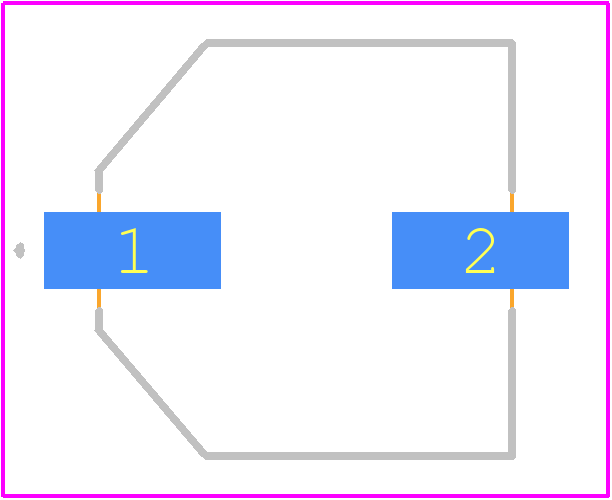

  • Footprint

    pcb footprint

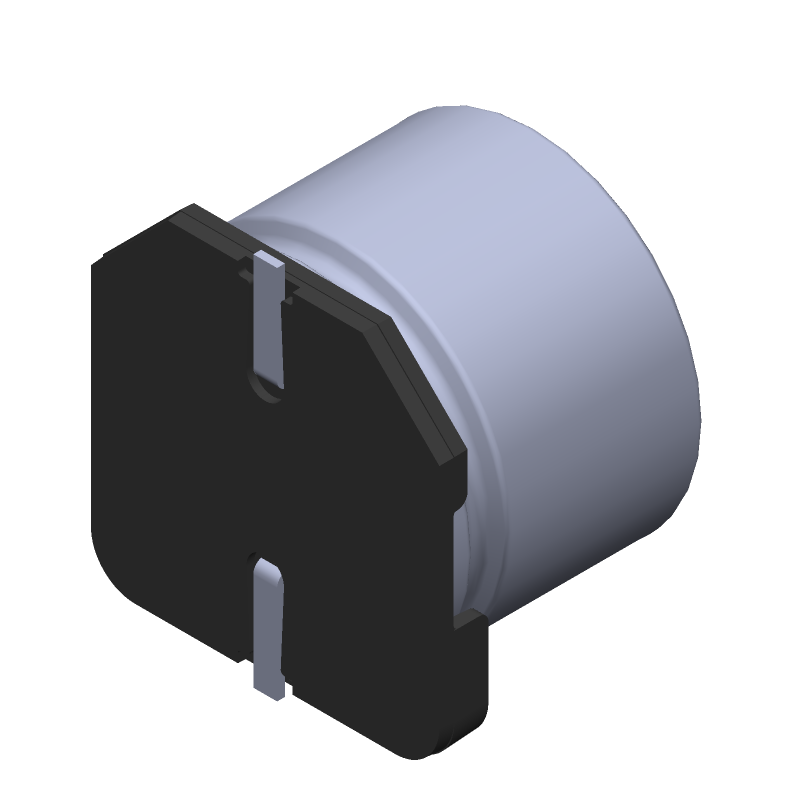

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

16SVP100M Part Data Attributes

Parametric Data
16SVP100M Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
16SVP100M Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Samacsys Manufacturer Panasonic
Additional Feature ESR IS MEASURED AT 100KHZ TO 300KHZ
Capacitance 100 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 10 mm
Dielectric Material ALUMINUM (SOLID POLYMER)
ESR 35 mΩ
Height 7.9 mm
Leakage Current 0.32 mA
Length 10.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED, 15 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 16 V
Ripple Current 133.5 mA
Size Code 4141
Surface Mount YES
Tan Delta 0.12
Terminal Shape FLAT
Width 10.3 mm

Alternate Parts for 16SVP100M

This table gives cross-reference parts and alternative options found for 16SVP100M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 16SVP100M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
16SVPS100M Panasonic Electronic Components $1.0890 Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT 16SVP100M vs 16SVPS100M
16SVPS100M SANYO Electric Co Ltd Check for Price CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 16 V, 100 uF, SURFACE MOUNT, 4141, CHIP, ROHS COMPLIANT 16SVP100M vs 16SVPS100M
16SVP100M SUN Electronic Industries Corporation Check for Price CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 16 V, 100 uF, SURFACE MOUNT, 4141, CHIP, ROHS COMPLIANT 16SVP100M vs 16SVP100M
equivalents icon

16SVP100M Related Parts

16SVP100M Frequently Asked Questions (FAQ)

  • The recommended land pattern for the 16SVP100M is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm.

  • To handle high-frequency noise, use a decoupling capacitor (e.g., 100nF) close to the 16SVP100M, and consider adding a ferrite bead or a common-mode choke to the power lines.

  • The maximum operating temperature range for the 16SVP100M is -40°C to +125°C, but it's recommended to operate within -20°C to +85°C for optimal performance.

  • Yes, the 16SVP100M is designed to withstand vibrations up to 10G, but it's recommended to follow proper mounting and soldering techniques to ensure reliability.

  • To ensure reliability in high-humidity environments, apply a conformal coating to the 16SVP100M and surrounding components, and consider using a moisture-resistant packaging material.
