Part Details for 16SVPF560M by Panasonic Electronic Components

Results Overview of 16SVPF560M by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

16SVPF560M Information

16SVPF560M by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 16SVPF560M

Part # Distributor Description Stock Price Buy
DISTI # 86Y9798
Newark Cap, Alu Elec, Polymer, 560Uf, 16V, Smd, Capacitance:560Μf, Voltage(Dc):16V, Capacitor Case/Package:Radial Can - Smd, Esr:0.014Ohm, Lifetime @ Temperature:5000 Hours @ 105°C, Capacitance Tolerance:± 20%, Capacitor Terminals:Solder Rohs Compliant: Yes |Panasonic 16SVPF560M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 775
  • 1 $1.7000
$1.7000 Buy Now
DISTI # 83AK5040
Newark Capacitor, 560Uf, 16V, 4.95A, Capacitance:560Μf, Voltage(Dc):16V, Capacitor Case/Package:Radial Can - Smd, Esr:0.014Ohm, Lifetime @ Temperature:5000 Hours @ 105°C, Capacitance Tolerance:± 20%, Capacitor Mounting:Surface Mount Rohs Compliant: Yes |Panasonic 16SVPF560M RoHS: Compliant Min Qty: 400 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 400 $0.9920
  • 800 $0.9670
  • 1,600 $0.9420
  • 2,400 $0.9140
  • 4,000 $0.8830
$0.8830 / $0.9920 Buy Now
DISTI # 16SVPF560M
Avnet Americas - Tape and Reel (Alt: 16SVPF560M) COO: Japan RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 26 Weeks, 0 Days Container: Reel 0
  • 800 $0.5605
  • 1,600 $0.5460
  • 3,200 $0.5317
  • 6,400 $0.5223
  • 12,800 $0.5155
$0.5155 / $0.5605 Buy Now
DISTI # 70324304
RS CAPACITOR, ALUMINUM ORGANIC POLYMER, 16VDC,560UF,14MOHM,8X12MM, T&R Min Qty: 400 Package Multiple: 1 Container: Bulk 0
  • 400 $1.4700
  • 4,000 $1.4000
  • 20,000 $1.3300
  • 40,000 $1.2500
$1.2500 / $1.4700 RFQ
DISTI # 16SVPF560M
TME Capacitor: polymer, 560uF, 16VDC, SMD, OS-CON SVPF, ±20%, Ø8x11.9mm Min Qty: 1 0
  • 1 $1.3900
  • 10 $0.7100
  • 50 $0.7000
$0.7000 / $1.3900 RFQ
Ameya Holding Limited SVPF Series 16 V 560 uF 14 mΩ 8 x 12 mm OS-CON Aluminum Polymer Capacitor 800-Authorized Distributor
RFQ
DISTI # 16SVPF560M
IBS Electronics CAP ALUMINUM POLYMER 560UF 16VDC 20%( 8 X 11.9MM) SMD 0.014 OHM 4950MA 5000H 105C T/R Min Qty: 400 Package Multiple: 1 800
  • 400 $0.9450
  • 800 $0.8932
  • 1,200 $0.8736
  • 2,800 $0.8456
  • 5,200 $0.8414
  • 7,600 $0.8372
  • 10,000 $0.8330
  • 15,200 $0.8288
$0.8288 / $0.9450 Buy Now
DISTI # 16SVPF560M
Avnet Abacus - Tape and Reel (Alt: 16SVPF560M) RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 51 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # 16SVPF560M
Avnet Asia (Alt: 16SVPF560M) RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 25 Weeks, 5 Days 0
RFQ
Chip Stock CapAluminum560uF16V20%(8X11.9mm)SMD0.014Ohm4950mA5000h105ŽT/R 14272
RFQ
DISTI # 16SVPF560M
Maritex Polymer Organic Aluminum Capacitors, PANASONIC, 16SVPF560M, 560 �F, 14 mOhm, 20 %, 16 V Min Qty: 1 Package Multiple: 1 950
  • 1 $1.3730
  • 10 $0.6780
  • 100 $0.6560
$0.6560 / $1.3730 Buy Now
Win Source Electronics CAP ALUM POLY 560UF 20% 16V SMD / 560 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 14mOhm 5000 Hrs @ 105°C 10772
  • 50 $1.0909
  • 115 $0.8951
  • 175 $0.8672
  • 240 $0.8392
  • 310 $0.8112
  • 415 $0.7273
$0.7273 / $1.0909 Buy Now

Part Details for 16SVPF560M

16SVPF560M CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

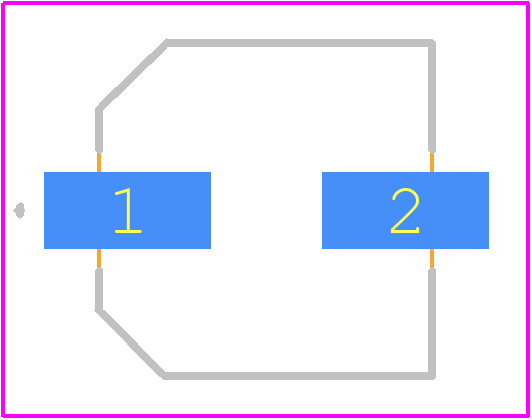

    pcb footprint

  • 3D Model

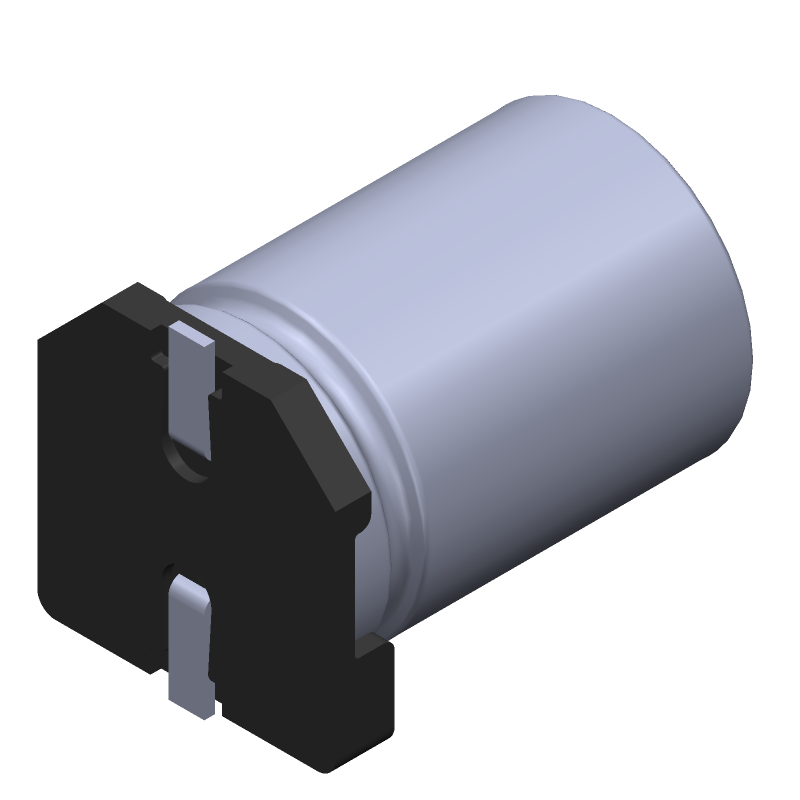

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

16SVPF560M Part Data Attributes

Parametric Data
16SVPF560M Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
16SVPF560M Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 560uF, Surface Mount, 3333, HALOGEN FREE AND ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
Factory Lead Time 26 Weeks
Additional Feature Esr Is Measured At 100khz To 300khz
Capacitance 560 µF
Capacitor Type Aluminum Electrolytic Capacitor
Dielectric Material Aluminum (Solid Polymer)
ESR 14 MΩ
Height 11.9 Mm
JESD-609 Code e3
Leakage Current 1.792 Ma
Length 8.3 Mm
Mounting Feature Surface Mount
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape Cylindrical Package
Package Style Smt
Packing Method Tr, Embossed, 15 Inch
Polarity Polarized
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 16 V
Ripple Current 247.5 Ma
Size Code 3333
Surface Mount Yes
Tan Delta 0.12
Terminal Finish Tin
Terminal Shape Flat
Width 8.3 Mm
