1734592-8 by: TE Connectivity

(1734592-8) FPC CONN. 0.5MM PITCH B/C, 8P

Part Details for 1734592-8 by TE Connectivity

Results Overview of 1734592-8 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Renewable Energy

1734592-8 Information

1734592-8 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 1734592-8

Part # Distributor Description Stock Price Buy
DISTI # 4298671
Farnell FPC CONN, RCPT, 8POS, 1ROW, 0.5MM RoHS: Compliant Min Qty: 2000 Lead time: 1 Weeks, 2 Days Container: Each 34000
  • 2,000 $0.5002
  • 6,000 $0.4712
$0.4712 / $0.5002 Buy Now
DISTI # 2399749
Farnell CONNECTOR, FPC, RCPT, 8POS, 1ROW COO: CN RoHS: Compliant Min Qty: 2000 Lead time: 16 Weeks, 6 Days Container: Reel 0
  • 2,000 $0.2685
  • 6,000 $0.2633
$0.2633 / $0.2685 Buy Now
DISTI # 1816379
Farnell CONNECTOR, FFC / FPC, 0.5MM, 8WAY COO: CN RoHS: Compliant Min Qty: 1 Lead time: 9 Weeks, 4 Days Container: Cut Tape 0
  • 1 $0.4436
  • 50 $0.3975
  • 150 $0.2751
  • 400 $0.2725
  • 1,000 $0.2685
$0.2685 / $0.4436 Buy Now
DISTI # 1734592-8
Avnet Americas Conn FFC/FPC Socket 8 POS 0.5mm Solder RA SMD T/R - Tape and Reel (Alt: 1734592-8) COO: China RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 12 Weeks, 4 Days Container: Reel 0
RFQ
DISTI # 70468571
RS FPC SERIES 0.5MM PITCH 8 WAY RIGHT ANGLE FEMALE FPC CONN, ZIF BOTTOM CONTACT Min Qty: 10 Package Multiple: 1 Container: Bulk 0
  • 10 $0.7200
  • 20 $0.6700
  • 40 $0.5800
$0.5800 / $0.7200 RFQ
DISTI # 17345928-TEC
TME Connector: FFC/FPC Min Qty: 2000 34000
  • 2,000 $0.3141
  • 4,000 $0.3048
  • 6,000 $0.3002
  • 20,000 $0.2939
  • 26,000 $0.2784
$0.2784 / $0.3141 Buy Now
Powell Electronics 0.5MM RA BC FPC CONN Min Qty: 1 22
  • 1 $1.0268
  • 20,000 $0.7187
  • 25,000 $0.6819
  • 50,000 $0.6634
  • 100,000 $0.6266
$0.6266 / $1.0268 Buy Now
DISTI # 1734592-8
Avnet Abacus Conn FFCFPC Socket 8 POS 05mm Solder RA SMD TR (Alt: 1734592-8) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Abacus - 0
Buy Now
DISTI # 1734592-8
Avnet Abacus Conn FFCFPC Socket 8 POS 05mm Solder RA SMD TR (Alt: 1734592-8) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 143 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for 1734592-8

1734592-8 CAD Models

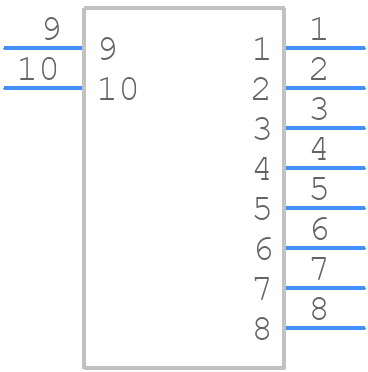

  • Part Symbol

    schematic symbol

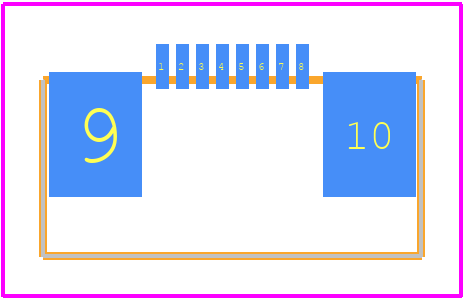

  • Footprint

    pcb footprint

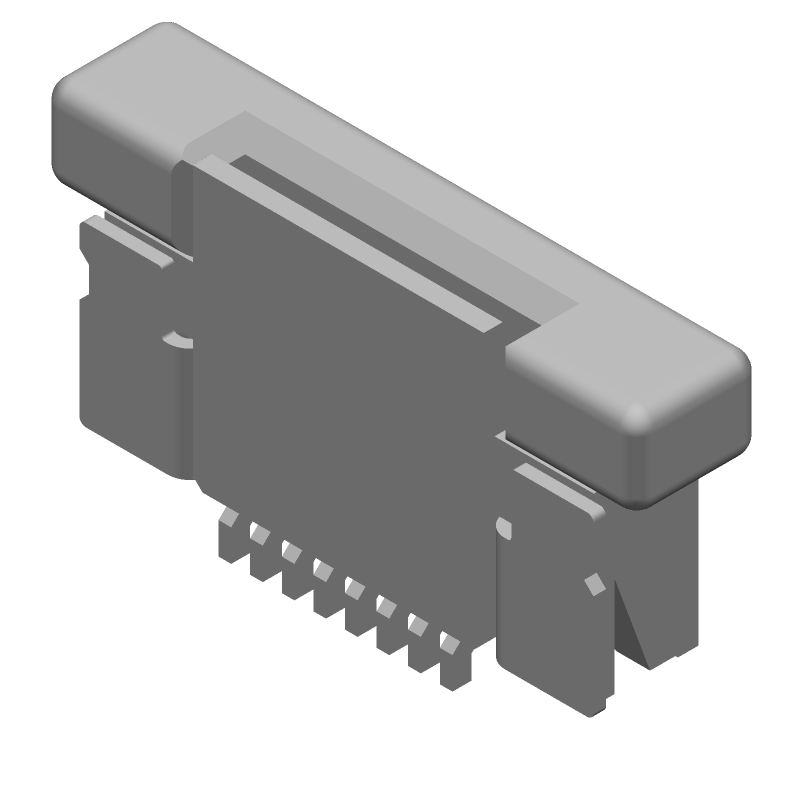

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1734592-8 Part Data Attributes

Parametric Data
1734592-8 TE Connectivity
Buy Now Datasheet
Compare Parts:
1734592-8 TE Connectivity (1734592-8) FPC CONN. 0.5MM PITCH B/C, 8P
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code Compliant
ECCN Code EAR99
Factory Lead Time 12 Weeks, 4 Days
Samacsys Manufacturer TE Connectivity
Board Mounting Option SOLDER HOLD DOWN
Body Breadth 0.2 inch
Body Depth 0.08 inch
Body Length 0.371 inch
Cable Types FFC, FPC
Connector Type FFC/FPC CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance 35 mΩ
Contact Style BELLOWED TYPE
DIN Conformance NO
Durability 15 Cycles
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max ZIF N
Insulation Resistance 50000000 Ω
Insulator Color NATURAL
Insulator Material LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mains Connector Rating .5A
Mating Contact Pitch 0.5 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Panel Mount NO
Plating Thickness 100u inch
Rated Current (Signal) 0.5 A
Reference Standard UL
Terminal Pitch 0.5 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 8
UL Flammability Code 94V-0
Withdrawl Force-Min ZIF N
