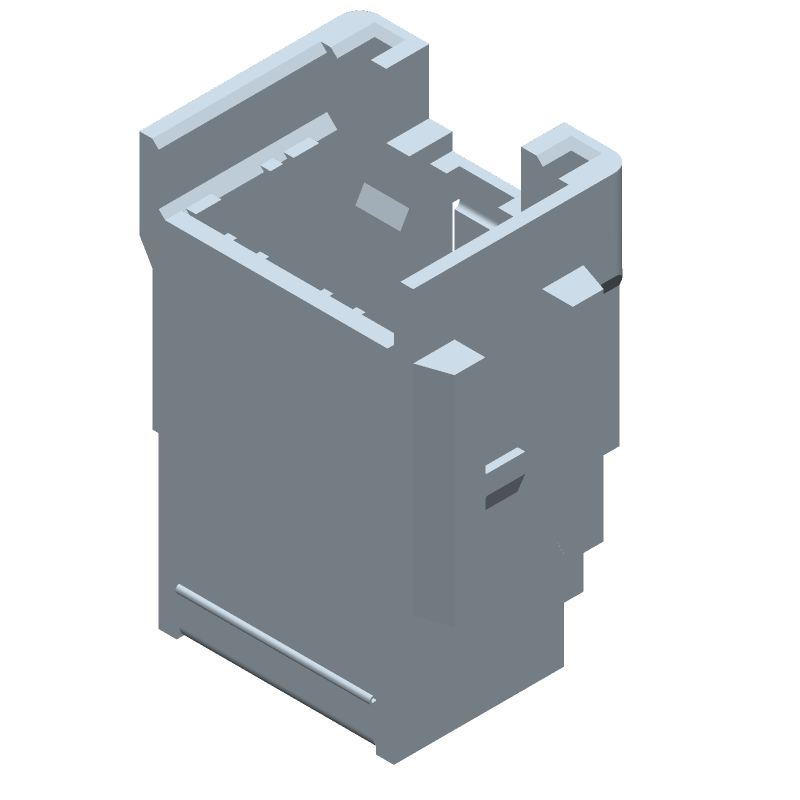

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 174058-2 by TE Connectivity
Results Overview of 174058-2 by TE Connectivity
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Consumer Electronics
Education and Research
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
174058-2 Information
174058-2 by TE Connectivity is a Combination Line Connector.
Combination Line Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 174058-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15AM3077
|
Newark | Automotive Connectors 040 12 Pos Recpt |Amp Te Connectivity 174058-2 RoHS: Not Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk | 6055 |
|
$0.6870 / $0.8390 | Buy Now |
|
DISTI #
11H9189
|
Newark | 040 Multilock Cap 12P Rohs Compliant: Yes |Amp Te Connectivity 174058-2 RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.9030 / $0.9760 | Buy Now |
|
DISTI #
174058-2
|
Avnet Americas | Conn Housing RCP 12 POS 2.5mm Crimp ST - Bulk (Alt: 174058-2) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 11 Weeks, 3 Days Container: Bulk | 0 |
|
$0.6102 / $0.6262 | Buy Now |
|
DISTI #
AMP174058-2
|
Heilind Electronics | 040 MULTILOCK CAP 12P | Americas - 0 in Stock |
|
$0.7627 / $0.7979 | Buy Now |
|
DISTI #
AMP174058-2
|
Interstate Connecting Components | 040 MULTILOCK CAP 12P | 0 |
|
$0.7627 / $0.7979 | Buy Now |
|
DISTI #
174058-2
|
Avnet Abacus | Conn Housing RCP 12 POS 25mm Crimp ST (Alt: 174058-2) RoHS: Compliant Min Qty: 300 Package Multiple: 100 Lead time: 30 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
174058-2
|
Avnet Abacus | Conn Housing RCP 12 POS 25mm Crimp ST (Alt: 174058-2) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 28 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
174058-2
|
Chip One Stop | Interconnects RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Bulk | 742 |
|
$0.5730 / $1.1800 | Buy Now |
Part Details for 174058-2
174058-2 CAD Models
174058-2 Part Data Attributes
|
|
174058-2
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
174058-2
TE Connectivity
040 MULTILOCK CAP 12P
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Factory Lead Time | 11 Weeks, 3 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | MULTI-LOCK | |
| Body Breadth | 0.933 inch | |
| Body Depth | 0.703 inch | |
| Body Length | 1.291 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | COMBINATION LINE CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | MALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| DIN Conformance | NO | |
| Durability | 50 Cycles | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| MIL Conformance | NO | |
| Mains Connector Rating | 115/230VAC | |
| Mating Contact Pitch | 0.098 inch | |
| Mating Contact Row Spacing | 0.118 inch | |
| Mating Information | 174045-2 | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Type | CABLE | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -30 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Polarization Key | POLARIZED | |
| Rated Voltage | 12 V | |
| Reference Standard | UL | |
| Terminal Pitch | 2.5 mm | |
| Total Number of Contacts | 12 | |
| Wire Size-Max | 20 AWG | |
| Wire Size-Min | 22 AWG |
174058-2 Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the 174058-2 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
-
Yes, the 174058-2 connector is designed to be environmentally sealed and can withstand outdoor use, including exposure to moisture and temperature extremes.
-
The maximum operating temperature range for the 174058-2 connector is -40°C to 125°C (-40°F to 257°F).
-
It is not recommended to use the 174058-2 connector with a wire gauge that is not specified in the datasheet, as this may affect the connector's performance and reliability.
