Part Details for 1803604 by Phoenix Contact
Results Overview of 1803604 by Phoenix Contact
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1803604 Information
1803604 by Phoenix Contact is a Terminal and Terminal Block.
Terminals and Terminal Blocks are under the broader part category of Terminal Blocks.
Terminal blocks are connectors used in industrial applications to securely join wires, allowing for easy connection and disconnection without soldering. They come in various designs, including versions for power applications, and ensure reliable contact and current flow for multiple wire connections. Read more about Terminal Blocks on our Terminal Blocks part category page.
Price & Stock for 1803604
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71C4224
|
Newark | Terminal Block Pluggable, 5 Position, 28-16Awg, Pitch Spacing:3.81Mm, No. Of Positions:5Positions, Wire Size Awg Min:28Awg, Wire Size Awg Max:16Awg, Conductor Area Csa:1.5Mm², Wire Connection Method:Screw, Rated Current:8A Rohs Compliant: Yes |Phoenix Contact 1803604 (Alternate Part Number: 4017918045913 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 752 |
|
$6.6400 / $9.3800 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 547 |
|
$3.4899 / $8.5120 | Buy Now |
|
|
Bristol Electronics | 31 |
|
RFQ | ||
|
|
Bristol Electronics | 5 |
|
RFQ | ||
|
DISTI #
MC1.5/5-ST-3.81
|
TME | Connector: pluggable terminal block, plug, female, 8A, 160V, green Min Qty: 1 | 0 |
|
$3.5900 / $5.2000 | RFQ |
|
|
ComSIT USA | AVAILABLE EU | 70 |
|
RFQ | |
|
DISTI #
000000000000033975
|
Sager | Pluggable Terminal Blocks 5 Pos 3.81mm pitch Plug 28-16 AWG Screw Min Qty: 1 | 961 |
|
$4.2300 / $6.5500 | Buy Now |
|
DISTI #
1803604
|
Avnet Abacus | Conn Pluggable Terminal PL 5 POS 381mm Screw ST 8A (Alt: 1803604) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 5 Weeks, 0 Days | Abacus - 750 |
|
Buy Now | |
|
|
Dynamic Solutions GmbH | Printed-circuit board connector | 800 |
|
RFQ | |
|
|
LCSC | 0.141.5 8A 1430 Green 160V 3.81mm Plug 5 1 1x5P P3.81mm Headers Plugs and Sockets RoHS | 333 |
|
$1.2438 / $2.1456 | Buy Now |
US Tariff Estimator: 1803604 by Phoenix Contact
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1803604
1803604 CAD Models
-

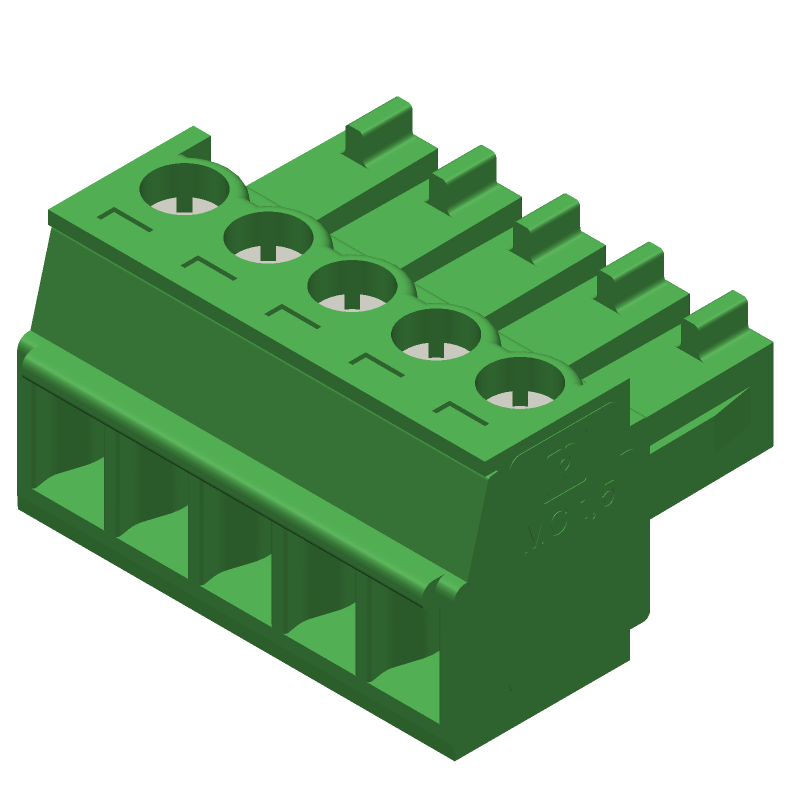

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1803604 Part Data Attributes
|
|
1803604
Phoenix Contact
Buy Now
Datasheet
|
Compare Parts:
1803604
Phoenix Contact
Barrier Strip Terminal Block, 8A, 1.5mm2, 1 Row(s), 1 Deck(s), ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PHOENIX CONTACT GMBH & CO KG | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Phoenix Contact | |
| Additional Feature | PA, 94V-0 | |
| Fastening Method | SCREW | |
| Mounting Type | CABLE | |
| Number of Decks | 1 | |
| Number of Rows | 1 | |
| Number of Ways | 5 | |
| Rated Current | 8 A | |
| Rated Voltage | 160 V | |
| Safety Approval | UL | |
| Terminal and Terminal Block Type | BARRIER STRIP TERMINAL BLOCK | |
| Wire Cross Section | 1.5 mm2 | |
| Wire Gauge | 16 AWG |
1803604 Frequently Asked Questions (FAQ)
-
The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
-
Yes, the 1803604 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific applications.
-
The 1803604 connector has a IP20 rating, which means it's protected against solid objects > 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or additional sealing measures.
-
The 1803604 connector is rated for up to 12 A per pin. For higher current applications, consider using a connector with a higher current rating or consulting with a Phoenix Contact representative for custom solutions.
-
Yes, ensure the PCB layout provides sufficient clearance around the connector (at least 2 mm) and follows the recommended footprint and pad layout provided in the datasheet.
