1N4001-TP Information
1N4001-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4001-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1N4001-TP
|
TME | Diode: rectifying, THT, 50V, 1A, reel,tape, Ifsm: 30A, DO41, Ufmax: 1V Min Qty: 1 | 5955 |
|
$0.0270 / $0.1901 | Buy Now |
|
DISTI #
SMC-1N4001-TP
|
Sensible Micro Corporation | Rectifiers 1A 50Vr 35Vrms 50V 30A 1.0Vf 5.0Ua 15Pf RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1110 Container: Tape & Reel | 4958 |
|
RFQ | |
|
|
Component Electronics, Inc | DIODE 5K/TR | 5000 |
|
$0.5000 / $0.7700 | Buy Now |
US Tariff Estimator: 1N4001-TP by Micro Commercial Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1N4001-TP
1N4001-TP CAD Models
-
Part Symbol
-

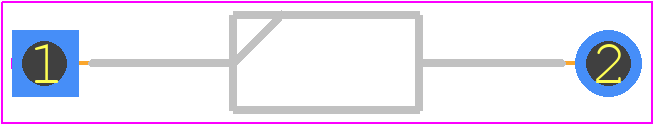

Footprint
-

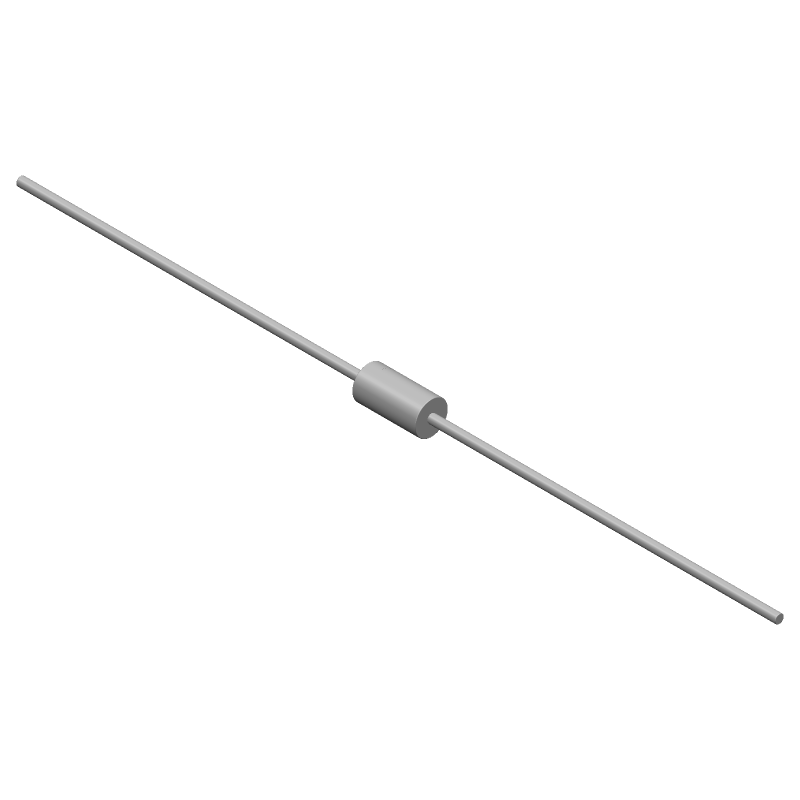

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1N4001-TP Part Data Attributes
|
|
1N4001-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
1N4001-TP
Micro Commercial Components
Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-41 | |
| Package Description | PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | METALLURGICALLY BONDED | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JEDEC-95 Code | DO-41 | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 50 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 2 µs | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for 1N4001-TP
This table gives cross-reference parts and alternative options found for 1N4001-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4001-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBR150 | PanJit Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Element, 1A, 50V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 | 1N4001-TP vs MBR150 |
| 1N4001_NL | Fairchild Semiconductor Corporation | Check for Price | Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-41, DO-41, 2 PIN | 1N4001-TP vs 1N4001_NL |
| PG4001S | PanJit Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, A-405, 2 PIN | 1N4001-TP vs PG4001S |
| 1N4001 | Promax-Johnton Electronic Corporation | Check for Price | Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 | 1N4001-TP vs 1N4001 |
| 1N4001FF | onsemi | Check for Price | 1A, 50V, SILICON, SIGNAL DIODE, DO-41, PLASTIC, CASE 59-10, 2 PIN | 1N4001-TP vs 1N4001FF |
| RL101V23 | Diodes Incorporated | Check for Price | Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon | 1N4001-TP vs RL101V23 |
| RL101GP-B | Micro Commercial Components | Check for Price | Rectifier Diode, | 1N4001-TP vs RL101GP-B |
| RL101GP | Microsemi Corporation (now Microchip) | Check for Price | Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, A-405, 2 PIN | 1N4001-TP vs RL101GP |
| JANTX1N3657 | Microsemi Corporation (now Microchip) | Check for Price | Rectifier Diode, 1 Element, 1A, Silicon, HERMETIC SEALED, GLASS PACKAGE-2 | 1N4001-TP vs JANTX1N3657 |
| 1A1 | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, MINIATURE, PLASTIC, R-1, 2 PIN | 1N4001-TP vs 1A1 |
1N4001-TP Frequently Asked Questions (FAQ)
-
The maximum surge current rating of the 1N4001-TP is 30A for a single cycle, and 10A²s for repetitive surges.
-
No, the 1N4001-TP is a standard recovery diode, not suitable for high-frequency switching applications. It's recommended for general-purpose rectification and low-frequency switching applications.
-
The thermal resistance of the 1N4001-TP is typically around 10°C/W, but this can vary depending on the specific application and mounting conditions.
-
The 1N4001-TP is rated for operation up to 150°C, but its performance may degrade at high temperatures. It's recommended to derate the diode's current rating at high temperatures.
-
The 1N4001-TP is not AEC-Q101 qualified, so it's not recommended for use in automotive applications. Instead, consider using an AEC-Q101 qualified diode.
