1N4007 Information
1N4007 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4007
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | Diode: rectifying, THT, 1kV, 1A, Ammo Pack, Ifsm: 27A, DO41, 1.5us | 18 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 900 |
|
RFQ |
US Tariff Estimator: 1N4007 by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1N4007
1N4007 CAD Models
-
Part Symbol
-

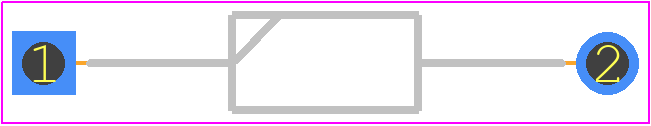

Footprint
-

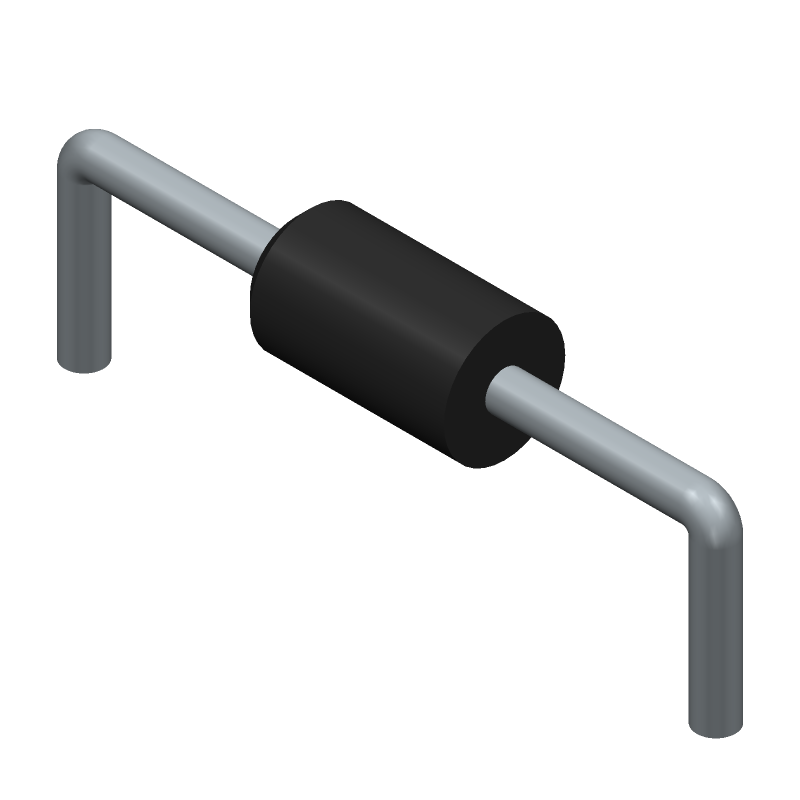

3D Model
