Part Details for 1N4007B-G by Comchip Technology Corporation Ltd
Results Overview of 1N4007B-G by Comchip Technology Corporation Ltd
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
1N4007B-G Information
1N4007B-G by Comchip Technology Corporation Ltd is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4007B-G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Karl Kruse GmbH & Co KG | 39000 |
|
RFQ | ||
|
|
NAC | DIODE GEN PURP 1KV 1A DO41 RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 49000 |
|
$0.0220 / $0.0500 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 39000 |
|
RFQ |
US Tariff Estimator: 1N4007B-G by Comchip Technology Corporation Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1N4007B-G
1N4007B-G CAD Models
-
Part Symbol
-

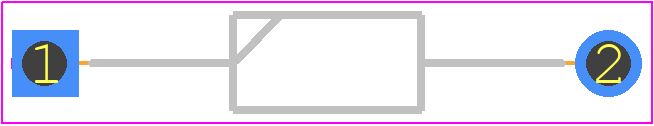

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1N4007B-G Part Data Attributes
|
|
1N4007B-G
Comchip Technology Corporation Ltd
Buy Now
Datasheet
|
Compare Parts:
1N4007B-G
Comchip Technology Corporation Ltd
DIODE GEN PURP 1KV 1A DO41
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Application | General Purpose | |
| Case Connection | Isolated | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| JEDEC-95 Code | DO-41 | |
| JESD-30 Code | O-PALF-W2 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Round | |
| Package Style | Long Form | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Surface Mount | No | |
| Terminal Form | Wire | |
| Terminal Position | Axial | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified |
Alternate Parts for 1N4007B-G
This table gives cross-reference parts and alternative options found for 1N4007B-G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4007B-G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HER108H02-4 | Rectron Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007B-G vs HER108H02-4 |
| 1N4007H-TP | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, DO-41, 2 PIN | 1N4007B-G vs 1N4007H-TP |
| FR107PH09 | Rectron Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007B-G vs FR107PH09 |
| 1N4007N24-XX-AR | Taitron Components Inc | Check for Price | Rectifier Diode, | 1N4007B-G vs 1N4007N24-XX-AR |
| 1N4007-AQT&A | Continental Device India Ltd | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, | 1N4007B-G vs 1N4007-AQT&A |
| HER108H02-3 | Rectron Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 | 1N4007B-G vs HER108H02-3 |
| HER107G | WEITRON INTERNATIONAL CO., LTD. | Check for Price | Rectifier Diode | 1N4007B-G vs HER107G |
| 1N4007H-T-TP | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, DO-41, 2 PIN | 1N4007B-G vs 1N4007H-T-TP |
| 1N4007GL-Z41-R | Unisonic Technologies Co Ltd | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, LEAD FREE PACKAGE-2 | 1N4007B-G vs 1N4007GL-Z41-R |
| 1N4007-G | Comchip Technology Corporation Ltd | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 | 1N4007B-G vs 1N4007-G |
1N4007B-G Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1N4007B-G is between 250°C to 260°C for a maximum of 10 seconds.
-
No, the 1N4007B-G is a standard rectifier diode and is not suitable for high-frequency applications. It is recommended for general-purpose rectification and switching applications.
-
The maximum surge current rating for the 1N4007B-G is 150A for a single cycle, non-repetitive, 10ms pulse width.
-
Yes, the 1N4007B-G diode is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The storage temperature range for the 1N4007B-G is -40°C to 100°C.
