Part Details for 1N4448WT by onsemi
Results Overview of 1N4448WT by onsemi
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (7 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
1N4448WT Information
1N4448WT by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4448WT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y5522
|
Newark | Diode, Small Signal, 75V, Sod-523F, Diode Configuration:Single, Repetitive Peak Reverse Voltage:75V, Average Forward Current:300Ma, Forward Voltage Max:1V, Reverse Recovery Time:4Ns, Forward Surge Current:-, Diode Case Style:Sod-523Frohs Compliant: Yes |Onsemi 1N4448WT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 20890 |
|
$0.0410 / $0.1260 | Buy Now |
|
DISTI #
09N9939
|
Newark | Small Signal Diode, Single, 75 V, 300 Ma, 1 V, 4 Ns, 4 A |Onsemi 1N4448WT RoHS: Not Compliant Min Qty: 16000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0290 / $0.0380 | Buy Now |
|
DISTI #
31Y5522
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 31Y5522) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 250 Partner Stock |
|
$0.0490 / $0.1260 | Buy Now |
|
DISTI #
1N4448WT
|
Avnet Americas | - Tape and Reel (Alt: 1N4448WT) COO: Japan RoHS: Compliant Min Qty: 40000 Package Multiple: 8000 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$0.0181 / $0.0189 | Buy Now |
|
DISTI #
1N4448WT
|
TME | Diode: switching, SMD, 75V, 0.3A, 4ns, SOD523F, Ufmax: 1V, Ir: 5uA Min Qty: 1 | 5342 |
|
$0.0279 / $0.1200 | Buy Now |
|
DISTI #
1N4448WT
|
IBS Electronics | RECTIFIER DIODE 1 PHASE 1 ELEMENT 0.125A 75V V(RRM) SILICON Min Qty: 8000 Package Multiple: 1 | 24000 |
|
$0.0239 / $0.0263 | Buy Now |
|
DISTI #
1N4448WT
|
Avnet Silica | (Alt: 1N4448WT) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 21 Weeks, 0 Days | Silica - 32000 |
|
Buy Now | |
|
|
Chip Stock | RectifierDiode,1Phase,1Element,0.125A,75VV(RRM),Silicon | 35500 |
|
RFQ | |
|
DISTI #
1N4448WT
|
EBV Elektronik | (Alt: 1N4448WT) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 22 Weeks, 0 Days | EBV - 8000 |
|
Buy Now | |
|
|
Flip Electronics | Stock, Ship Today | 7910 |
|
RFQ |
US Tariff Estimator: 1N4448WT by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1N4448WT
1N4448WT CAD Models
-
Part Symbol
-
Footprint
-

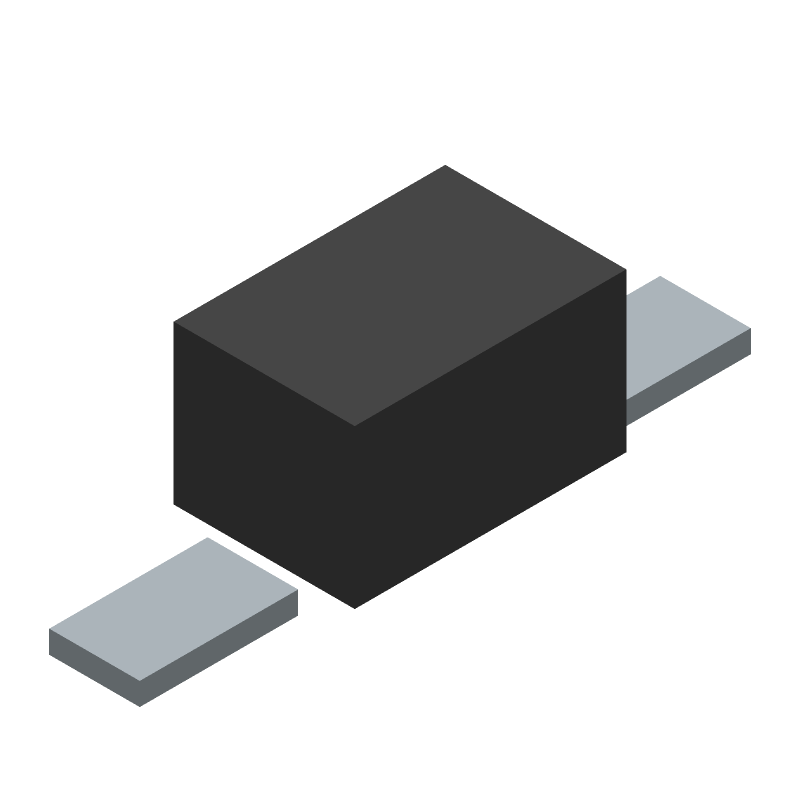

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1N4448WT Part Data Attributes
|
|
1N4448WT
onsemi
Buy Now
Datasheet
|
Compare Parts:
1N4448WT
onsemi
Small Signal Diode, SOD-523-2, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOD-523-2 | |
| Package Description | Sc-79, 2 Pin | |
| Manufacturer Package Code | 502-01 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 0.72 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.3 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 75 V | |
| Reverse Recovery Time-Max | 0.004 µS | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Flat | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for 1N4448WT
This table gives cross-reference parts and alternative options found for 1N4448WT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4448WT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N4448WT | Continental Device India Ltd | Check for Price | Rectifier Diode, | 1N4448WT vs 1N4448WT |
1N4448WT Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1N4448WT is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the 1N4448WT is suitable for high-frequency switching applications due to its low capacitance and fast switching time.
-
Yes, the 1N4448WT can operate in high-temperature environments up to 150°C, making it suitable for automotive and industrial applications.
-
Yes, the 1N4448WT is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The typical reverse recovery time of the 1N4448WT is around 5-10 ns, making it suitable for high-frequency switching applications.
