1N4947GP-E3/54 Information
1N4947GP-E3/54 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4947GP-E3/54
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1N4947GP-E3/54
|
Avnet Americas | 1A,800V,250NS,SUPERET,NOT FOR NEW DESIG - Tape and Reel (Alt: 1N4947GP-E3/54) COO: China RoHS: Compliant Min Qty: 11000 Package Multiple: 5500 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.1517 / $0.1548 | Buy Now |
|
DISTI #
1N4947GP-E3/54
|
EBV Elektronik | 1A800V250NSSUPERETNOT FOR NEW DESIG (Alt: 1N4947GP-E3/54) RoHS: Compliant Min Qty: 11000 Package Multiple: 5500 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: 1N4947GP-E3/54 by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1N4947GP-E3/54
1N4947GP-E3/54 CAD Models
-
Part Symbol
-

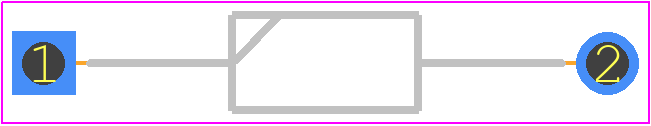

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1N4947GP-E3/54 Part Data Attributes
|
|
1N4947GP-E3/54
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
1N4947GP-E3/54
Vishay Intertechnologies
Rectifier Diode, 1 Phase, 1 Element, 1A, 800V V(RRM), Silicon, DO-204AL,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.3 V | |
| JEDEC-95 Code | DO-204AL | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 25 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 800 V | |
| Reverse Recovery Time-Max | 0.25 µs | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
Alternate Parts for 1N4947GP-E3/54
This table gives cross-reference parts and alternative options found for 1N4947GP-E3/54. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4947GP-E3/54, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N4947GP-E3/73 | Vishay Semiconductors | Check for Price | FAST RECOVERY RECTFR 800V 1A 2PIN DO-204AL - Ammo Pack | 1N4947GP-E3/54 vs 1N4947GP-E3/73 |
| 1N4947GP | Vishay Semiconductors | Check for Price | Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN | 1N4947GP-E3/54 vs 1N4947GP |
| 1N4947GP | Vishay Intertechnologies | Check for Price | Rectifier Diode, 1 Element, 1A, 800V V(RRM) | 1N4947GP-E3/54 vs 1N4947GP |
| 1N4947GPHE3/54 | Vishay Semiconductors | Check for Price | SWITING 800V 1A 2PIN DO-41 - Tape and Reel | 1N4947GP-E3/54 vs 1N4947GPHE3/54 |
1N4947GP-E3/54 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1N4947GP-E3/54 is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the 1N4947GP-E3/54 is a high-speed switching diode with a fast recovery time of 50 ns, making it suitable for high-frequency applications up to 100 kHz.
-
The maximum allowable voltage for the 1N4947GP-E3/54 is 1000 V, but it's recommended to operate within the rated voltage of 800 V to ensure reliable operation.
-
Yes, the 1N4947GP-E3/54 can be used in parallel to increase current handling, but it's essential to ensure that the diodes are matched and connected in a way that minimizes current imbalance and thermal mismatch.
-
Yes, the 1N4947GP-E3/54 diode is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
