1N5364BG by: onsemi

5 Watt Surmetic 40 Zener Voltage Regulators 33 V, Surmetic 40, Axial Lead, 1000-BLKBX

Part Details for 1N5364BG by onsemi

Results Overview of 1N5364BG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

1N5364BG Information

1N5364BG by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N5364BG

Part # Distributor Description Stock Price Buy
DISTI # 42K2902
Newark Zener Diode, 5W, 33V, 017Aa, Zener Voltage Nom:33V, Power Dissipation:5W, Diode Case Style:017Aa, No. Of Pins:2Pins, Operating Temperature Max:200°C, Diode Mounting:Through Hole, Product Range:1N53 Series, Qualification:- Rohs Compliant: Yes |Onsemi 1N5364BG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 1892
  • 1 $0.4560
  • 10 $0.3520
  • 100 $0.2640
  • 500 $0.2240
  • 1,000 $0.1950
  • 3,000 $0.1940
  • 10,000 $0.1920
$0.1920 / $0.4560 Buy Now
DISTI # 42K2902
Avnet Americas - Bulk (Alt: 42K2902) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 1892 Partner Stock
  • 1 $0.4560
  • 10 $0.3550
  • 100 $0.2660
  • 500 $0.2240
  • 1,000 $0.1920
$0.1920 / $0.4560 Buy Now
DISTI # 1N5364BG
Avnet Americas - Bulk (Alt: 1N5364BG) COO: China RoHS: Compliant Min Qty: 5000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Bulk 4000 Factory Stock
  • 5,000 $0.1378
  • 7,000 $0.1342
  • 12,000 $0.1325
  • 25,000 $0.1308
  • 50,000 $0.1259
$0.1259 / $0.1378 Buy Now
Rochester Electronics Zener Diode, 33V V(Z), 5%, 5W, Silicon, Unidirectional RoHS: Not Compliant Status: Active Min Qty: 1 938
  • 100 $0.1732
  • 500 $0.1559
  • 1,000 $0.1438
  • 10,000 $0.1282
  • 100,000 $0.1074
$0.1074 / $0.1732 Buy Now
DISTI # 1N5364BG
TME Diode: Zener, 5W, 33V, bulk, CASE017AA, single diode, 0.5uA, 1N53xxB Min Qty: 1 685
  • 1 $0.3800
  • 5 $0.3320
  • 10 $0.3030
  • 50 $0.2380
  • 100 $0.2140
  • 250 $0.1850
  • 500 $0.1770
$0.1770 / $0.3800 Buy Now
DISTI # 1N5364BG
Avnet Asia (Alt: 1N5364BG) RoHS: Compliant Min Qty: 5000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days 0
RFQ
DISTI # 1N5364BG
Avnet Silica (Alt: 1N5364BG) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days Silica - 4000
Buy Now
DISTI # 1N5364BG
EBV Elektronik (Alt: 1N5364BG) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock, ship today 4000
RFQ
LCSC 31.35V34.65V 5W 33V Through HoleD3.3xL8.4mm Single Zener Diodes RoHS 165
  • 5 $0.3935
  • 50 $0.3175
  • 150 $0.2850
  • 1,000 $0.2247
  • 2,000 $0.2066
  • 5,000 $0.1957
$0.1957 / $0.3935 Buy Now
New Advantage Corporation 1N5364B Series 5 W 1 A 33 V Axial Zener Voltage Regulator Diode - CASE-017AA RoHS: Compliant Min Qty: 1 Package Multiple: 1000 2000
  • 1,000 $0.2383
  • 2,000 $0.2200
$0.2200 / $0.2383 Buy Now

US Tariff Estimator: 1N5364BG by onsemi

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

1N5364BG
onsemi
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 1N5364BG

1N5364BG CAD Models

  • Part Symbol

    schematic symbol

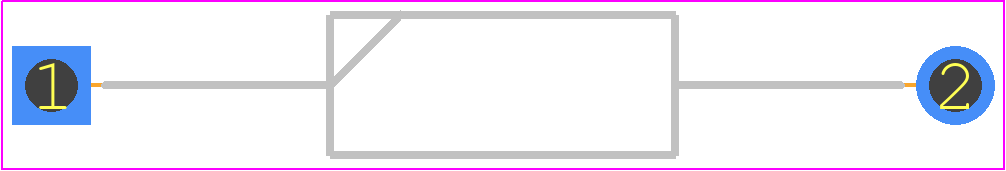

  • Footprint

    pcb footprint

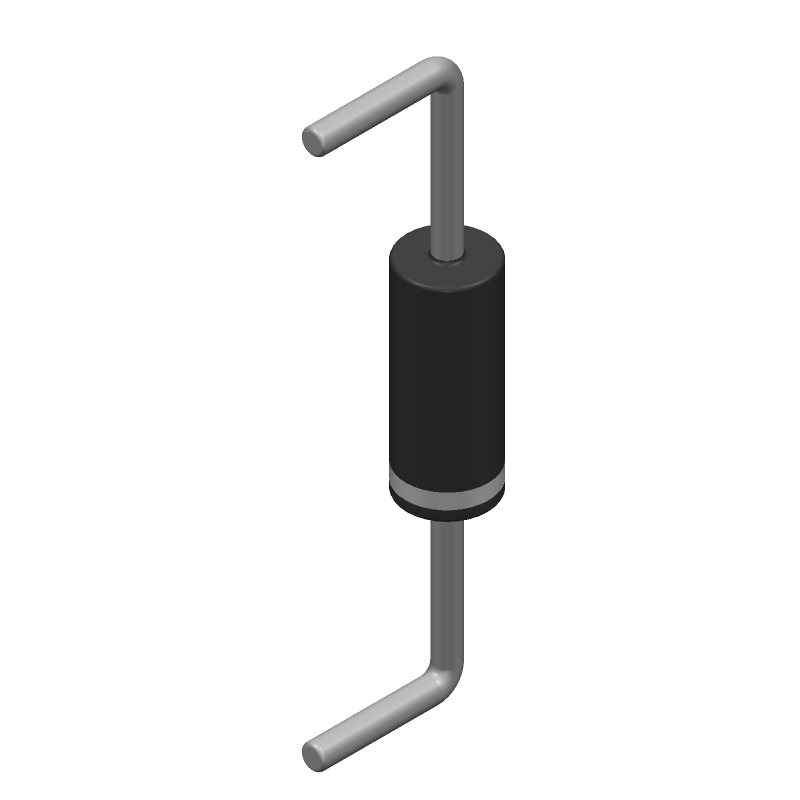

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N5364BG Part Data Attributes

Parametric Data
1N5364BG onsemi
Buy Now Datasheet
Compare Parts:
1N5364BG onsemi 5 Watt Surmetic 40 Zener Voltage Regulators 33 V, Surmetic 40, Axial Lead, 1000-BLKBX
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code Surmetic 40, Axial Lead
Pin Count 0
Manufacturer Package Code 017AA
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer onsemi
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 10 Ω
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 200 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5 W
Qualification Status Not Qualified
Reference Voltage-Nom 33 V
Surface Mount NO
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Voltage Tol-Max 5%
Working Test Current 40 mA

Alternate Parts for 1N5364BG
