1SMA5914BT3G Information
1SMA5914BT3G by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1SMA5914BT3G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55T4070
|
Newark | Zener Single Diode, 3.6 V, 1.5 W, Do-214Ac, 5 %, 2, 150 C Rohs Compliant: Yes |Onsemi 1SMA5914BT3G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1278 |
|
$0.0970 / $0.1150 | Buy Now |
|
DISTI #
29X6255
|
Newark | Diode, Zener, 3.6V, 1.5W, Do-214Ac, Zener Voltage Nom:3.6V, Power Dissipation:1.5W, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:1Sma59Xxbt3G Series Rohs Compliant: Yes |Onsemi 1SMA5914BT3G RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0820 / $0.1100 | Buy Now |
|
DISTI #
1SMA5914BT3G
|
Avnet Americas | - Tape and Reel (Alt: 1SMA5914BT3G) COO: Malaysia RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel | 10000 |
|
$0.0647 / $0.0701 | Buy Now |
|
DISTI #
55T4070
|
Avnet Americas | (Alt: 55T4070) RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 0 |
|
$0.1610 / $0.3980 | Buy Now |
|
|
Bristol Electronics | 1937 |
|
RFQ | ||
|
|
Rochester Electronics | 3.6 V, 1.5.0 W Zener Diode Voltage Regulator RoHS: Not Compliant Status: Active Min Qty: 1 | 551 |
|
$0.0669 / $0.1079 | Buy Now |
|
DISTI #
1SMA5914BT3G
|
TME | Diode: Zener, 1.5W, 3.6V, SMD, reel,tape, SMA, single diode Min Qty: 1 | 0 |
|
$0.0980 / $0.3700 | RFQ |
|
|
Chip 1 Exchange | INSTOCK | 5216 |
|
RFQ | |
|
DISTI #
1SMA5914BT3G
|
Avnet Silica | (Alt: 1SMA5914BT3G) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | ZenerDiodeSingle3.6V5%9Ohm1500mWAutomotive2-PinSMAT/R/DIODEZENER3.6V1.5WSMA | 141204 |
|
RFQ |
US Tariff Estimator: 1SMA5914BT3G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1SMA5914BT3G
1SMA5914BT3G CAD Models
-
Part Symbol
-
Footprint
-

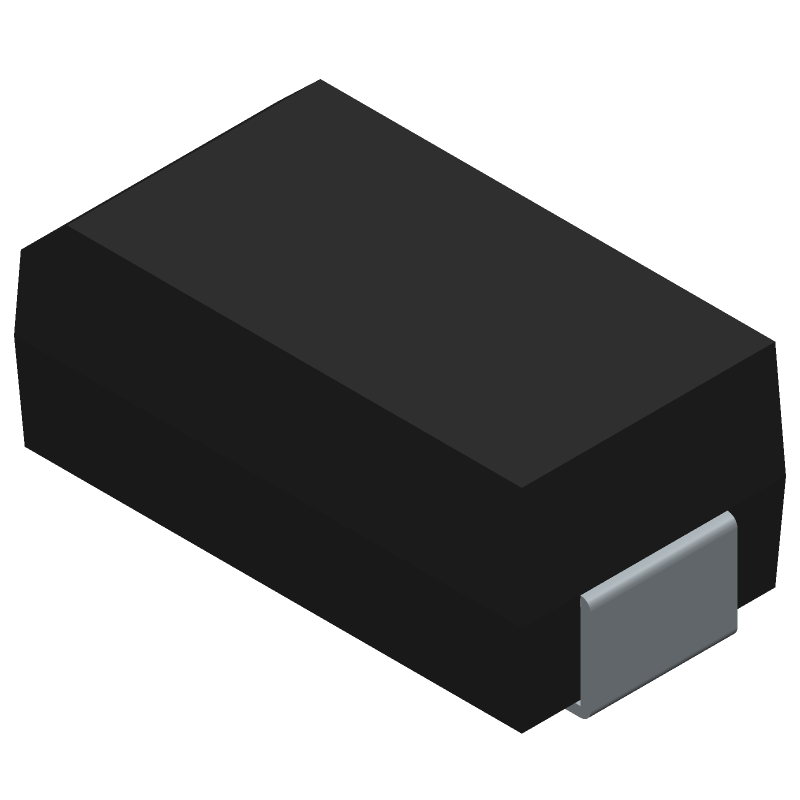

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1SMA5914BT3G Part Data Attributes
|
|
1SMA5914BT3G
onsemi
Buy Now
Datasheet
|
Compare Parts:
1SMA5914BT3G
onsemi
1.5 W Zener Diode Voltage Regulator 3.6 V, SMA, 5000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SMA | |
| Package Description | Lead Free, Plastic, Case 403d-02, Sma, 2 Pin | |
| Pin Count | 2 | |
| Manufacturer Package Code | 403D-02 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 8 Weeks | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Zener Diode | |
| Dynamic Impedance-Max | 9 Ω | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Knee Impedance-Max | 500 Ω | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | Unidirectional | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 3.6 V | |
| Reverse Current-Max | 35.5 µA | |
| Reverse Test Voltage | 1 V | |
| Surface Mount | Yes | |
| Technology | Zener | |
| Terminal Finish | Matte Tin | |
| Terminal Form | C Bend | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 104.2 Ma |
Alternate Parts for 1SMA5914BT3G
This table gives cross-reference parts and alternative options found for 1SMA5914BT3G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1SMA5914BT3G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1SMA5914BT3 | onsemi | Check for Price | 3.6V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, PLASTIC, CASE 403D-02, SMA, 2 PIN | 1SMA5914BT3G vs 1SMA5914BT3 |
| SMAZ3V6-13 | Diodes Incorporated | Check for Price | Zener Diode, 3.6V V(Z), 5%, 1W, Silicon, Unidirectional, PLASTIC, SMA, 2 PIN | 1SMA5914BT3G vs SMAZ3V6-13 |
| SMAZ3V6 | Lite-On Semiconductor Corporation | Check for Price | Zener Diode, 3.6V V(Z), 5%, 1W, Silicon, Unidirectional, PLASTIC PACKAGE-2 | 1SMA5914BT3G vs SMAZ3V6 |
1SMA5914BT3G Frequently Asked Questions (FAQ)
-
A good PCB layout for the 1SMA5914BT3G involves keeping the leads as short as possible, using a ground plane, and minimizing the distance between the device and the circuit's 0V reference point. Additionally, it's recommended to use a 10nF capacitor between the cathode and anode to reduce noise and oscillations.
-
To ensure proper biasing, the 1SMA5914BT3G requires a stable voltage supply, and the recommended operating voltage is between 5V and 24V. The device should be biased with a resistor divider network to set the voltage reference, and the bias voltage should be decoupled with a capacitor to reduce noise.
-
The maximum allowable power dissipation for the 1SMA5914BT3G is 500mW. It's essential to ensure that the device does not exceed this power rating to prevent overheating and potential damage.
-
Yes, the 1SMA5914BT3G is suitable for high-reliability applications due to its rugged design and construction. It has a high surge current capability and is designed to withstand high temperatures and voltage transients.
-
To protect the 1SMA5914BT3G from EOS, it's essential to follow proper handling and storage procedures, avoid exceeding the maximum ratings, and use proper PCB design and layout techniques. Additionally, consider using protective devices such as TVS diodes or zener diodes to absorb voltage transients.
