1SMB5913BT3G by: onsemi

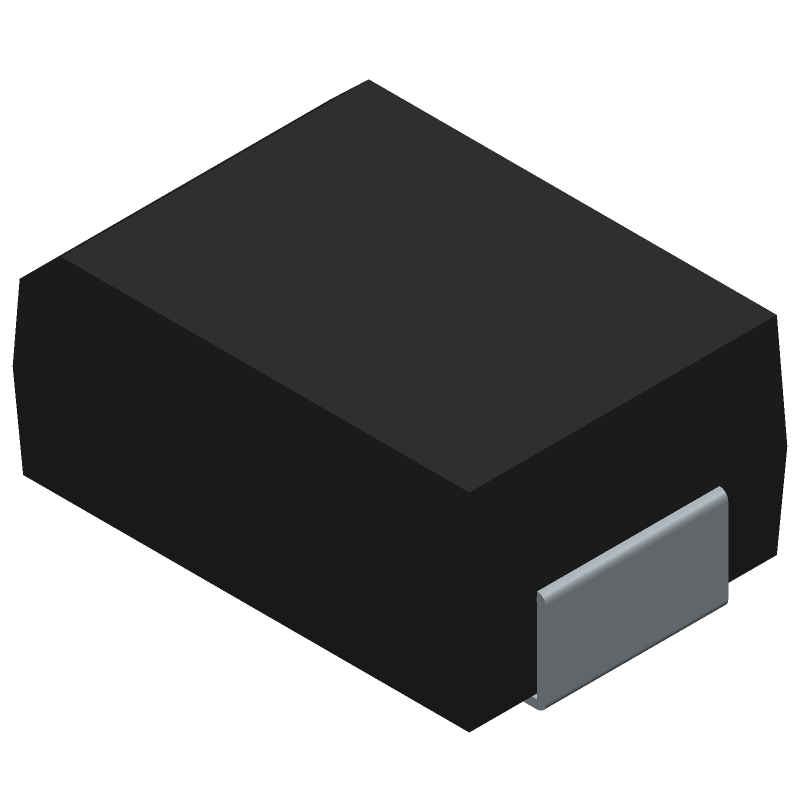

3.0 W Zener Diode Voltage Regulator 3.3 V, SMB, 2500-REEL

Part Details for 1SMB5913BT3G by onsemi

Results Overview of 1SMB5913BT3G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1SMB5913BT3G Information

1SMB5913BT3G by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
