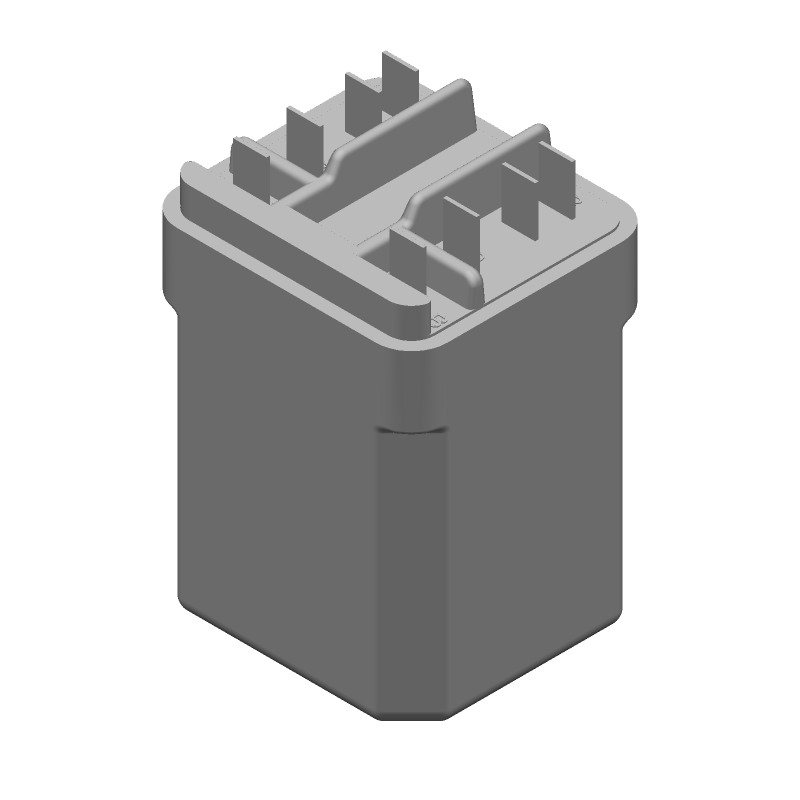

2-1393117-4 by: TE Connectivity

Power/Signal Relay, 2 Form C, DPDT, Momentary, 2000mW (Coil), 10A (Contact), AC Input, AC/DC Output, Panel Mount

Part Details for 2-1393117-4 by TE Connectivity

Results Overview of 2-1393117-4 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Aerospace and Defense

2-1393117-4 Information

2-1393117-4 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for 2-1393117-4

Part # Distributor Description Stock Price Buy
DISTI # 36AC0706
Newark General Purpose Relays Dp Tst Qc/Sldr 120Ac |Amp Te Connectivity 2-1393117-4 RoHS: Not Compliant Min Qty: 150 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $24.1500
$24.1500 Buy Now
DISTI # 2-1393117-4
Avnet Americas - Bag (Alt: 2-1393117-4) COO: China RoHS: Compliant Min Qty: 150 Package Multiple: 150 Lead time: 20 Weeks, 2 Days Container: Bag 0
  • 150 $21.9719
  • 300 $20.2232
  • 600 $19.2375
  • 1,050 $17.5016
  • 2,100 $17.1289
$17.1289 / $21.9719 Buy Now
DISTI # 71996605
RS RELAY, KUP-11A25-120=KU Min Qty: 150 Package Multiple: 1 Container: Bulk 0
  • 150 $30.9800
  • 750 $30.0500
  • 1,500 $29.1200
$29.1200 / $30.9800 RFQ
DISTI # AMP2-1393117-4
Heilind Electronics KUP-11A25-120=KU Americas - 0 in Stock
  • 1 $25.5545
  • 10 $24.7916
  • 25 $23.7291
$23.7291 / $25.5545 Buy Now
DISTI # AMP2-1393117-4
Interstate Connecting Components KUP-11A25-120=KU 0
  • 1 $25.5545
  • 10 $24.7916
  • 25 $23.7291
$23.7291 / $25.5545 Buy Now
Powell Electronics Relays Min Qty: 150 40
  • 150 $24.1200
  • 250 $22.8500
  • 500 $22.3500
  • 1,000 $20.9600
$20.9600 / $24.1200 Buy Now

Part Details for 2-1393117-4

2-1393117-4 Part Data Attributes

Parametric Data
2-1393117-4 TE Connectivity
Buy Now Datasheet
Compare Parts:
2-1393117-4 TE Connectivity Power/Signal Relay, 2 Form C, DPDT, Momentary, 2000mW (Coil), 10A (Contact), AC Input, AC/DC Output, Panel Mount
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Not Compliant
ECCN Code EAR99
Factory Lead Time 20 Weeks, 2 Days
Body Breadth 35.7 Mm
Body Height 50 Mm
Body Length or Diameter 38.9 Mm
Coil Current(AC)-Max 0.017 A
Coil Power 2000 Mw
Coil Resistance 2250 Ω
Coil Voltage(AC)-Max 120 V
Coil/Input Supply Type Ac
Contact Current(AC)-Max 10 A
Contact Current(DC)-Max 10 A
Contact Voltage(AC)-Max 240 V
Contact/Output Supply Type Ac/Dc
Dielectric Strength Between Coil and Contacts 2200 Vrms
Dielectric Strength Between Open Contacts 1200 Vrms
End Contact Material Silver Cadmium Oxide
Insulation Resistance 100000000 Ω
Mounting Feature Panel Mount
Operating Temperature-Max 55 °C
Operating Temperature-Min -45 °C
Physical Dimension 38.9mm X 35.7mm X 48.4mm
Reference Standard Csa; Ul
Relay Action Momentary
Relay Form 2 Form C
Relay Function Dpdt
Relay Type Power/Signal Relay
Surface Mount No
Termination Type Solder/Quick Connect
Weight 85 G

Alternate Parts for 2-1393117-4

This table gives cross-reference parts and alternative options found for 2-1393117-4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2-1393117-4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1393117-9 TE Connectivity $19.8570 Power/Signal Relay, 2 Form C, DPDT, Momentary, 2000mW (Coil), 10A (Contact), AC Input, AC/DC Output, Panel Mount 2-1393117-4 vs 1393117-9
KU-11A35-120 TE Connectivity $24.6367 POWER/SIGNAL RELAY, DPDT, MOMENTARY, 2000mW (COIL), 10A (CONTACT), PANEL MOUNT, ROHS COMPLIANT 2-1393117-4 vs KU-11A35-120
KUP-11A45-120 TE Connectivity $44.4320 Power/Signal Relay, 2 Form C, DPDT, Momentary, 2000mW (Coil), 10A (Contact), AC Input, AC/DC Output, Panel Mount 2-1393117-4 vs KUP-11A45-120
KUP-11AE5-120 TE Connectivity Check for Price Power/Signal Relay, 2 Form C, DPDT, Momentary, 2000mW (Coil), 10A (Contact), AC Input, AC/DC Output, Panel Mount 2-1393117-4 vs KUP-11AE5-120
1-1393117-2 TE Connectivity Check for Price Power/Signal Relay, 2 Form C, DPDT, Momentary, 2000mW (Coil), 10A (Contact), AC Input, AC/DC Output, Panel Mount 2-1393117-4 vs 1-1393117-2
KUP-11AA5-120 TE Connectivity Check for Price Power/Signal Relay, 2 Form C, DPDT, Momentary, 2000mW (Coil), 10A (Contact), AC Input, AC/DC Output, Panel Mount 2-1393117-4 vs KUP-11AA5-120
