Connectors / Headers and Edge Type Connectors / 20021112-00046T8LF
Datasheets
20021112-00046T8LF by:
Amphenol Communications Solutions

Minitek127®, Board to Board connector, Unshrouded Right Angled Header, Through Hole, Double Row, 46 Positions, 1.27 mm (.050in) Pitch.

Part Details for 20021112-00046T8LF by Amphenol Communications Solutions

Results Overview of 20021112-00046T8LF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

20021112-00046T8LF Information

20021112-00046T8LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
20021112-00046T8LF Amphenol Communications Solutions Minitek127®, Board to Board connector, Unshrouded Right Angled Header, Through Hole, Double Row, 46 Positions, 1.27 mm (.050in) Pitch.
20021112-00098T1LF Amphenol Communications Solutions Minitek127®, Board to Board connector, Unshrouded Right Angled Header, Through Hole, Double Row, 98 Positions, 1.27 mm (.050in) Pitch.
20021112-00094T1LF Amphenol Communications Solutions Minitek127®, Board to Board connector, Unshrouded Right Angled Header, Through Hole, Double Row, 94 Positions, 1.27 mm (.050in) Pitch.

Price & Stock for 20021112-00046T8LF

Part # Distributor Description Stock Price Buy
DISTI # 82R7783
Newark Hd Ra Th-20021112-00046T8Lf Rohs Compliant: Yes |Amphenol Communications Solutions 20021112-00046T8LF RoHS: Compliant Min Qty: 8580 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $2.8500
$2.8500 Buy Now

US Tariff Estimator: 20021112-00046T8LF by Amphenol Communications Solutions

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

20021112-00046T8LF
Amphenol Communications Solutions
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 20021112-00046T8LF

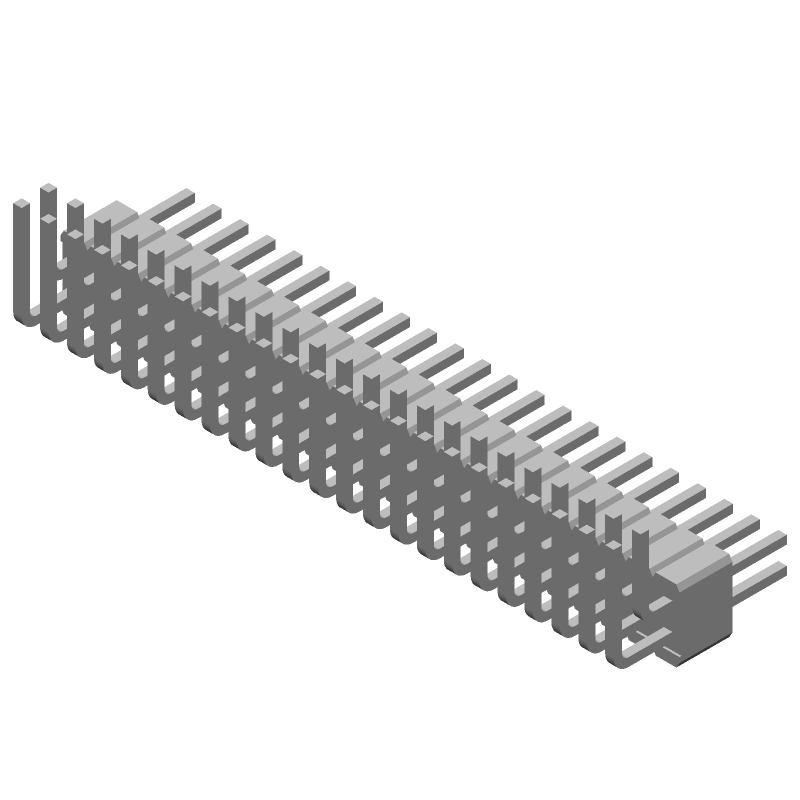

20021112-00046T8LF CAD Models
