22-05-7028 Information
22-05-7028 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 70282-001LF | Amphenol Communications Solutions | Metral® Accessories, Backplane Connectors, Cover Assembly, Crimp-to-Wire, LF. | |
| 70289-001LF | Amphenol Communications Solutions | METRAL LATCH | |
| 66987-028LF | Amphenol Communications Solutions | Berg Duflex Housing, single row, 2x28 Position. |
Price & Stock for 22-05-7028
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
9731601
|
Farnell | CONNECTOR, HEADER, 2POS, 1ROW, 2.54MM COO: IN RoHS: Compliant Min Qty: 10 Lead time: 5 Weeks, 1 Days Container: Each | 23163 |
|
$0.4941 / $0.6706 | Buy Now |
|
DISTI #
4232303
|
Farnell | CONN, HEADER, 2POS, 1ROW, 2.54MM RoHS: Compliant Min Qty: 800 Lead time: 1 Weeks, 2 Days Container: Each | 13926 |
|
$0.5375 / $0.5481 | Buy Now |
|
DISTI #
0022057028
|
Avnet Americas | Pin Header, Right Angle, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 2 Contacts - Bulk (Alt: 0022057028) COO: India RoHS: Compliant Min Qty: 17100 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk | 14820 |
|
$0.0834 / $0.0882 | Buy Now |
|
DISTI #
MOL22-05-7028
|
Heilind Electronics | 2.54MM KK HDR RA FRICLK 5SN 2 KT | Americas - 19450 in Stock |
|
$0.4267 / $0.5390 | Buy Now |
|
|
Bristol Electronics | Min Qty: 4 | 31 |
|
$0.9506 / $1.4625 | Buy Now |
|
DISTI #
MX-7395-02B
|
TME | Connector: wire-board, socket, male, PIN: 2, KK 254, angled 90°, THT Min Qty: 5 | 6572 |
|
$0.1050 / $0.1720 | Buy Now |
|
DISTI #
22-05-7028
|
IBS Electronics | 2.54MM (.100) PITCH KK®, WIRE-TO-BOARD HEADER RIGHT ANGLE WITH FRICTION LOCK 2 CIRCUITS Min Qty: 1500 Package Multiple: 1 | 15218 |
|
$0.0725 / $0.0963 | Buy Now |
|
|
Powell Electronics | Connector Min Qty: 700 | 10211 |
|
$0.0960 / $0.1027 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 16578 |
|
RFQ |
US Tariff Estimator: 22-05-7028 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 22-05-7028
22-05-7028 CAD Models
-
Part Symbol
-

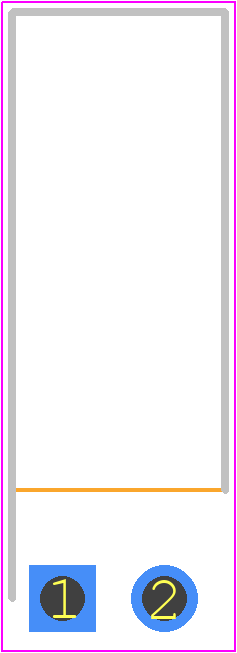

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
22-05-7028 Part Data Attributes
|
|
22-05-7028
Molex
Buy Now
Datasheet
|
Compare Parts:
22-05-7028
Molex
Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 20 Weeks | |
| Body Breadth | 0.228 Inch | |
| Body Depth | 0.581 Inch | |
| Body Length | 0.2 Inch | |
| Body/Shell Style | Receptacle | |
| Connector Type | Board Connector | |
| Contact Finish Mating | Not Specified | |
| Contact Finish Termination | Matte Tin (Sn) - Reflowed Over Nickel (Ni) Barrier | |
| Contact Gender | Male | |
| Contact Material | Brass | |
| Contact Pattern | Rectangular | |
| Contact Resistance | 10 MΩ | |
| Contact Style | Sq Pin-Skt | |
| DIN Conformance | No | |
| Durability | 50 Cycles | |
| Filter Feature | No | |
| IEC Conformance | No | |
| Insertion Force-Max | 1.946 N | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | Natural | |
| Insulator Material | Polyamide | |
| JESD-609 Code | e3 | |
| MIL Conformance | No | |
| Mating Contact Pitch | 0.1 Inch | |
| Mating Information | Multiple Mating Parts Available | |
| Mixed Contacts | No | |
| Mounting Option 1 | Locking | |
| Mounting Style | Right Angle | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | General Purpose | |
| PCB Contact Pattern | Rectangular | |
| Plating Thickness | 60u Inch | |
| Polarization Key | Polarized Housing | |
| Rated Current (Signal) | 4 A | |
| Reference Standard | Ul, Csa | |
| Terminal Length | 0.15 Inch | |
| Terminal Pitch | 2.54 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 2 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | .556 N |
Alternate Parts for 22-05-7028
This table gives cross-reference parts and alternative options found for 22-05-7028. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 22-05-7028, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 22-12-4022 | Molex | $0.3311 | Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle, | 22-05-7028 vs 22-12-4022 |
22-05-7028 Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
-
Yes, the 22-05-7028 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
-
The operating temperature range for the 22-05-7028 is -40°C to 105°C (-40°F to 221°F).
-
Yes, the 22-05-7028 is designed for outdoor use and can withstand exposure to moisture and humidity.
-
No, the 22-05-7028 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.
