Part Details for 22-23-2041 by Molex

Results Overview of 22-23-2041 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Space Technology Aerospace and Defense Energy and Power Systems Renewable Energy

22-23-2041 Information

22-23-2041 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 22-23-2041

Part # Distributor Description Stock Price Buy
DISTI # 79AH9446
Newark Kk 100 Hdr Frlk Vert 04 Ckt Tin Rohs Compliant: Yes |Molex 22-23-2041 (Alternate Part Number: 800753752146 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 237908
  • 1 $0.2810
  • 10 $0.2390
  • 25 $0.1920
  • 50 $0.1760
  • 100 $0.1640
  • 250 $0.1490
  • 500 $0.1460
  • 1,000 $0.1440
$0.1440 / $0.2810 Buy Now
DISTI # 59M4896
Newark Wire-To-Board Connector, Kk 6373 Series, Through Hole, Header, 4, 2.54 Mm, Tin Plated Contacts Rohs Compliant: Yes |Molex 22-23-2041 (Alternate Part Number: 800753752146 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk 23329
  • 10 $0.0730
  • 25 $0.0730
  • 50 $0.0730
  • 100 $0.0730
  • 250 $0.0730
  • 500 $0.0730
  • 1,000 $0.0730
$0.0730 Buy Now
DISTI # 38C0355
Newark Connector, Header, 4Pos, 1Row, 2.54Mm, Connector Systems:Signal, Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:1Rows, No. Of Contacts:4Contacts, Contact Termination Type:Through Hole Straight, Product Range:Kk 254 6373 Series Rohs Compliant: Yes |Molex 22-23-2041 (Alternate Part Number: 800753752146 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 5002
  • 1 $0.2860
  • 10 $0.2390
  • 25 $0.1980
  • 50 $0.1860
  • 100 $0.1740
  • 250 $0.1560
  • 500 $0.1500
  • 1,000 $0.1450
$0.1450 / $0.2860 Buy Now
DISTI # 0022232041
Avnet Americas Conn Partial Shrouded Header 4 POS 2.54mm Solder ST Through Hole - Bulk (Alt: 0022232041) COO: India RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk 237908
182400 Factory Stock
  • 1 $0.1094
  • 30,000 $0.0939
  • 75,000 $0.0898
  • 150,000 $0.0834
  • 375,000 $0.0788
$0.0788 / $0.1094 Buy Now
DISTI # 38C0355
Avnet Americas Conn Partial Shrouded Header 4 POS 2.54mm Solder ST Through Hole - Bulk (Alt: 38C0355) COO: India RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 6134 Partner Stock
  • 1 $0.2860
  • 10 $0.2390
  • 25 $0.1980
  • 50 $0.1860
  • 100 $0.1740
  • 250 $0.1560
  • 500 $0.1500
$0.1500 / $0.2860 Buy Now
DISTI # 59M4896
Avnet Americas Conn Partial Shrouded Header 4 POS 2.54mm Solder ST Through Hole - Bulk (Alt: 59M4896) COO: India RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 0
RFQ
Bisco Industries   67
  • 10 $0.5252
  • 500 $0.2125
  • 1,000 $0.1530
$0.1530 / $0.5252 Buy Now
DISTI # MOL22-23-2041
Heilind Electronics KK 100 HDR FRLK VERT 04 CKT TI Americas - 182115 in Stock
188100 On Order
  • 1 $0.1080
  • 1,700 $0.0947
  • 4,100 $0.0905
  • 8,200 $0.0879
  • 16,300 $0.0855
$0.0855 / $0.1080 Buy Now
Bristol Electronics   5351
RFQ
Bristol Electronics   Min Qty: 7 20
  • 7 $0.7500
$0.7500 Buy Now
Bristol Electronics   3
RFQ
DISTI # MX-22-23-2041
TME Connector: wire-board, socket, male, PIN: 4, KK 254, straight, THT Min Qty: 1 43568
  • 1 $0.2600
  • 10 $0.2090
  • 50 $0.1770
  • 100 $0.1630
  • 200 $0.1510
  • 500 $0.1350
  • 1,000 $0.1240
  • 1,900 $0.1180
$0.1180 / $0.2600 Buy Now
Chip 1 Exchange INSTOCK 100072
RFQ
Chip Stock KK254SolidHeader,Vertical,withFrictionLock,4Circuits,Tin(Sn)Plating 9135
RFQ
Component Electronics, Inc IN STOCK SHIP TODAY 1987
  • 1 $0.2300
  • 100 $0.1700
  • 1,000 $0.1500
$0.1500 / $0.2300 Buy Now
New Advantage Corporation RED COLOR RoHS: Compliant Min Qty: 1 Package Multiple: 1 2738
  • 1 $0.1026
$0.1026 Buy Now

US Tariff Estimator: 22-23-2041 by Molex

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

22-23-2041
Molex
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 22-23-2041

22-23-2041 CAD Models

  • Part Symbol

    schematic symbol

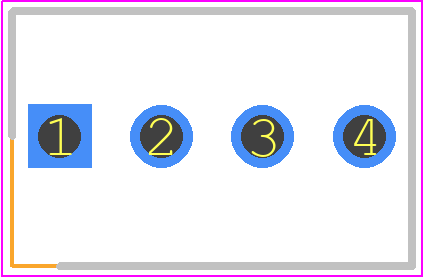

  • Footprint

    pcb footprint

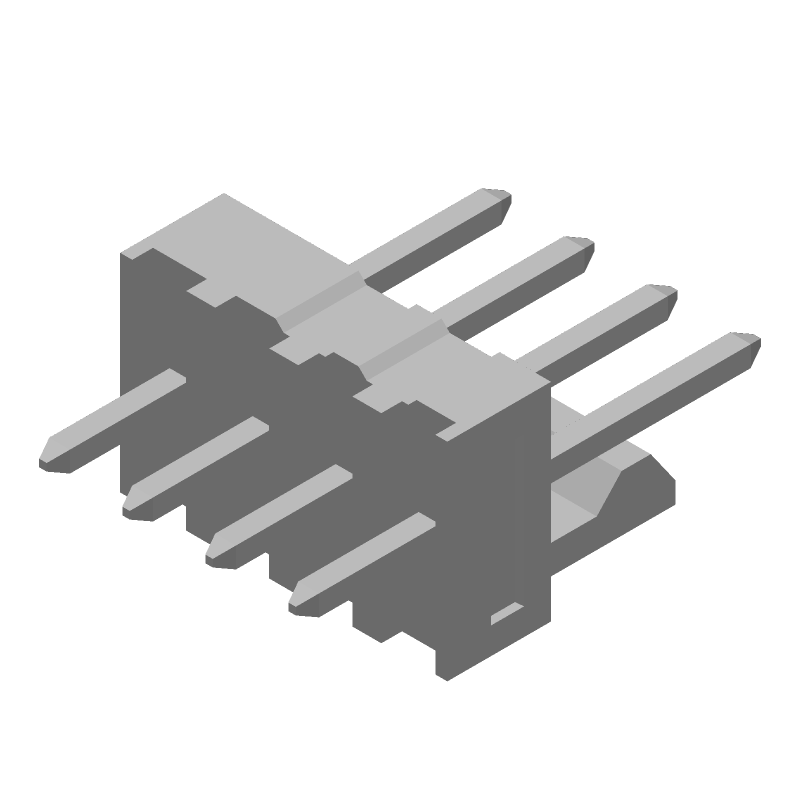

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

22-23-2041 Part Data Attributes

Parametric Data
22-23-2041 Molex
Buy Now Datasheet
Compare Parts:
22-23-2041 Molex Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Friction Lock, White Insulator, Receptacle, LEAD FREE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lead Free
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Additional Feature Kk
Body Breadth 0.25 Inch
Body Depth 0.322 Inch
Body Length 0.394 Inch
Body/Shell Style Receptacle
Connector Type Board Connector
Contact Finish Mating Not Specified
Contact Finish Termination Matte Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender Male
Contact Material Brass
Contact Pattern Rectangular
Contact Resistance 10 MΩ
Contact Style Sq Pin-Skt
DIN Conformance No
Filter Feature No
IEC Conformance No
Insertion Force-Max 4.8928 N
Insulation Resistance 1000000000 Ω
Insulator Color White
Insulator Material Polyamide
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.1 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Friction Lock
Mounting Option 2 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 1
Number of Rows Loaded 1
Option General Purpose
PCB Contact Pattern Rectangular
Plating Thickness 100u Inch
Reference Standard Ul
Terminal Length 0.14 Inch
Terminal Pitch 2.54 Mm
Termination Type Solder
Total Number of Contacts 4
UL Flammability Code 94V-0
