Capacitors / Ceramic Capacitors / 251R14S1R5BV4T
Datasheets
251R14S1R5BV4T by:

Ceramic Capacitor, Multilayer, Ceramic, 250V, 6.67% +Tol, 6.67% -Tol, C0G, 30ppm/Cel TC, 0.0000015uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

Part Details for 251R14S1R5BV4T by Johanson Technology Inc

Results Overview of 251R14S1R5BV4T by Johanson Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

251R14S1R5BV4T Information

251R14S1R5BV4T by Johanson Technology Inc is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 251R14S1R5BV4T

Part # Distributor Description Stock Price Buy
DISTI # 30K5247
Newark Capacitor Rf Ceramic 1.5Pf 250V 0.1Pf, C0G, Capacitance:1.5Pf, Voltage Rating:250V, Product Range:S Series, Capacitance Tolerance:± 0.1Pf, Operating Temperature Max:125°C, Capacitor Case Style:0603 [1608 Metric], Filter Terminals:Smdrohs Compliant: Yes |Johanson Technology 251R14S1R5BV4T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 397
  • 1 $0.0460
  • 25 $0.0460
  • 50 $0.0460
$0.0460 Buy Now
DISTI # 56P3832
Newark Hi-Q Mlcc 0603,1.5Pf,±0.1 /7 Inch Reel Rohs Compliant: Yes |Johanson Technology 251R14S1R5BV4T RoHS: Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.0570
  • 10,000 $0.0470
  • 20,000 $0.0400
  • 30,000 $0.0380
  • 50,000 $0.0330
$0.0330 / $0.0570 Buy Now

Part Details for 251R14S1R5BV4T

251R14S1R5BV4T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

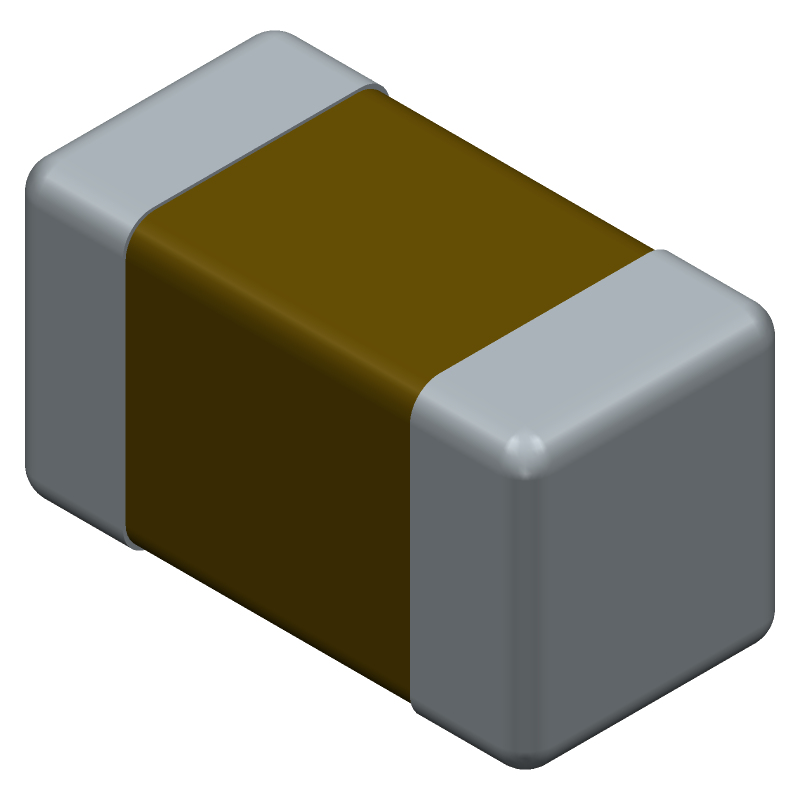

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

251R14S1R5BV4T Part Data Attributes

Parametric Data
251R14S1R5BV4T Johanson Technology Inc
Buy Now Datasheet
Compare Parts:
251R14S1R5BV4T Johanson Technology Inc Ceramic Capacitor, Multilayer, Ceramic, 250V, 6.67% +Tol, 6.67% -Tol, C0G, 30ppm/Cel TC, 0.0000015uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer JOHANSON TECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer JOHANSON TECHNOLOGY
Capacitance 0.0000015 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.76 mm
JESD-609 Code e3
Length 1.57 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 6.6667%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 6.6667%
Rated (DC) Voltage (URdc) 250 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.81 mm

Alternate Parts for 251R14S1R5BV4T

This table gives cross-reference parts and alternative options found for 251R14S1R5BV4T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 251R14S1R5BV4T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0603N1R5B251CT Walsin Technology Corporation Check for Price Ceramic Capacitor, Ceramic, 251R14S1R5BV4T vs 0603N1R5B251CT
C0603X159BAGACAUTO KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 251R14S1R5BV4T vs C0603X159BAGACAUTO
MG18N1R5B251CT Walsin Technology Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 250V, 6.67% +Tol, 6.67% -Tol, C0G, 30ppm/Cel TC, 0.0000015uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT 251R14S1R5BV4T vs MG18N1R5B251CT
C0603T159BAGAL7411 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 250V, 6.6667% +Tol, 6.6667% -Tol, C0G, -/+30ppm/Cel TC, 0.0000015uF, 0603, 251R14S1R5BV4T vs C0603T159BAGAL7411
C0603X159BAGAL KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 251R14S1R5BV4T vs C0603X159BAGAL
C0603X159BAGACAUTO7411 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 251R14S1R5BV4T vs C0603X159BAGACAUTO7411
SQCSVA1R5BA11A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 250V, 6.67% +Tol, 6.67% -Tol, C0G, 30ppm/Cel TC, 0.0000015uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT 251R14S1R5BV4T vs SQCSVA1R5BA11A
0603Y2501P50BQT Syfer Technology Check for Price CAPACITOR, CERAMIC, MULTILAYER, 250V, C0G, 0.0000015uF, SURFACE MOUNT, 0603, CHIP, ROHS COMPLIANT 251R14S1R5BV4T vs 0603Y2501P50BQT
251R14S1R5BG4S Johanson Technology Inc Check for Price CAPACITOR, CERAMIC, MULTILAYER, 250V, C0G, 0.0000015uF, SURFACE MOUNT, 0603, CHIP, ROHS COMPLIANT 251R14S1R5BV4T vs 251R14S1R5BG4S
C0603C159BAGAL7081 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 251R14S1R5BV4T vs C0603C159BAGAL7081

251R14S1R5BV4T Related Parts

251R14S1R5BV4T Frequently Asked Questions (FAQ)

  • The recommended land pattern for the 251R14S1R5BV4T can be found in the Johanson Technology Inc. application note AN-1301, which provides guidelines for PCB layout and assembly.

  • To handle the high frequency characteristics of the 251R14S1R5BV4T, it's recommended to use a 4-layer PCB stack-up with a solid ground plane, and to keep the signal traces as short as possible. Additionally, using a 50-ohm impedance-controlled trace can help minimize signal reflections.

  • The maximum operating temperature range for the 251R14S1R5BV4T is -40°C to +125°C, as specified in the datasheet. However, it's recommended to derate the component's performance at temperatures above 85°C to ensure reliable operation.

  • Yes, the 251R14S1R5BV4T is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent mechanical stress.

  • To troubleshoot issues with the 251R14S1R5BV4T, start by checking the component's soldering and PCB assembly for any defects or damage. Then, use a signal generator and oscilloscope to verify the component's frequency response and impedance matching. If the issue persists, consult the manufacturer's application notes and technical support resources.
