25AA160A-I/SN by:
Microchip Technology Inc

16K SPI 2K X 8, 16B PAGE, 1.8V SER EE

Part Details for 25AA160A-I/SN by Microchip Technology Inc

Results Overview of 25AA160A-I/SN by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

25AA160A-I/SN Information

25AA160A-I/SN by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 25AA160A-I/SN

Part # Distributor Description Stock Price Buy
DISTI # 35M0813
Newark Serial Eeprom, 16Kbit, 10Mhz, Soic-8, Memory Size:16Kbit, Eeprom Memory Configuration:2K X 8Bit, Memory Interface Type:Serial Spi, Clock Frequency:10Mhz, Memory Case Style:Soic, No. Of Pins:8Pins, Supply Voltage Min:1.8V, Supply Rohs Compliant: Yes |Microchip 25AA160A-I/SN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 499
  • 1 $0.7100
  • 10 $0.6950
  • 25 $0.6800
  • 50 $0.6650
  • 100 $0.6500
$0.6500 / $0.7100 Buy Now
DISTI # 25AA160A-I/SN
Avnet Americas EEPROM Serial-SPI 16K-bit 2K x 8 2.5V/3.3V/5V 8-Pin SOIC N Tube - Rail/Tube (Alt: 25AA160A-I/SN) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 100 Lead time: 8 Weeks, 0 Days Container: Tube 0
  • 500 $0.6076
  • 1,000 $0.6045
  • 2,000 $0.5723
  • 4,000 $0.5694
  • 8,000 $0.5664
$0.5664 / $0.6076 Buy Now
DISTI # 25AA160A-I/SN
Microchip Technology Inc 16K SPI 2K X 8, 16B PAGE, 1.8V SER EE, SOIC, Projected EOL: 2035-10-13 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 3558 and Alternates Available
  • 1 $0.7100
  • 25 $0.6800
  • 100 $0.6500
  • 1,000 $0.6200
  • 5,000 $0.5900
$0.5900 / $0.7100 Buy Now
DISTI # 70045899
RS MICROCHIP 25AA160A-I/SN SERIAL EEPROM MEMORY,16KBIT,160NS,1.8 TO 5.5V 8-PIN SOIC Min Qty: 500 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk 0
  • 500 $0.7500
  • 5,000 $0.7100
  • 25,000 $0.6800
  • 50,000 $0.6400
$0.6400 / $0.7500 RFQ
NAC 16K, 2K X 8, 16B PAGE, 1.8V SER EE IND. Package: 8 SOIC 3.90mm(.150in) TUBE - MID-DENSITY SERIAL EE Product Line RoHS: Compliant Min Qty: 500 Package Multiple: 100 Container: Tube 0
  • 1 $0.7700
  • 100 $0.6900
  • 500 $0.6400
  • 1,000 $0.6300
$0.6300 / $0.7700 Buy Now
DISTI # 25AA160A-I/SN
Avnet Silica EEPROM SerialSPI 16Kbit 2K x 8 25V33V5V 8Pin SOIC N Tube (Alt: 25AA160A-I/SN) RoHS: Compliant Min Qty: 500 Package Multiple: 100 Lead time: 11 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock 25AA160ASeries16Kbit(2Kx8)5.5VSMTSPIBusSerialEEPROM-SOIC-8 10350
RFQ
DISTI # 25AA160A-I/SN
EBV Elektronik EEPROM SerialSPI 16Kbit 2K x 8 25V33V5V 8Pin SOIC N Tube (Alt: 25AA160A-I/SN) RoHS: Compliant Min Qty: 500 Package Multiple: 100 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: 25AA160A-I/SN by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

25AA160A-I/SN
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 25AA160A-I/SN

25AA160A-I/SN CAD Models

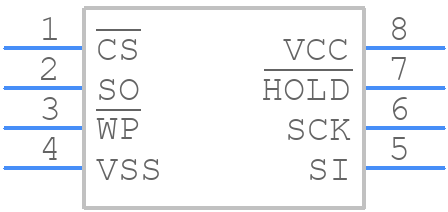

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

25AA160A-I/SN Part Data Attributes

Parametric Data
25AA160A-I/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
25AA160A-I/SN Microchip Technology Inc 16K SPI 2K X 8, 16B PAGE, 1.8V SER EE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SOIC
Package Description 3.90 Mm, Rohs Compliant, Plastic, Soic-8
Pin Count 8
Manufacturer Package Code SOIC-8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 6 Weeks
Clock Frequency-Max (fCLK) 10 Mhz
Data Retention Time-Min 200
Endurance 1000000 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 Mm
Memory Density 16384 Bit
Memory IC Type Eeprom
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 2048 Words
Number of Words Code 2000
Operating Mode Synchronous
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 2kx8
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP8,.23
Package Shape Rectangular
Package Style Small Outline
Parallel/Serial Serial
Peak Reflow Temperature (Cel) 260
Programming Voltage 2.5 V
Qualification Status Not Qualified
Screening Level Ts 16949
Seated Height-Max 1.75 Mm
Serial Bus Type Spi
Standby Current-Max 0.000001 A
Supply Current-Max 0.006 Ma
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.8 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Width 3.9 Mm
Write Cycle Time-Max (tWC) 5 Ms
Write Protection Hardware

Alternate Parts for 25AA160A-I/SN

This table gives cross-reference parts and alternative options found for 25AA160A-I/SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 25AA160A-I/SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
25AA160D-I/SN Microchip Technology Inc $0.7735 16K, 32B PAGE, 1.8V, SER EE 25AA160A-I/SN vs 25AA160D-I/SN
25AA160AT-I/SN Microchip Technology Inc $0.8235 16K SPI, 2K X 8, 16B PAGE, 1.8V SER EE 25AA160A-I/SN vs 25AA160AT-I/SN
25AA160C-I/P Microchip Technology Inc $0.9170 16K, 16B PAGE, 1.8V SER EE 25AA160A-I/SN vs 25AA160C-I/P
25AA160DT-E/MS Microchip Technology Inc $0.9630 16Kbit AA - ETEMP SPI EEPROM 25AA160A-I/SN vs 25AA160DT-E/MS
25AA160D-E/MS Microchip Technology Inc $0.9630 16Kbit AA - ETEMP SPI EEPROM 25AA160A-I/SN vs 25AA160D-E/MS
25AA160DT-E/SN Microchip Technology Inc Check for Price 16Kbit AA - ETEMP SPI EEPROM 25AA160A-I/SN vs 25AA160DT-E/SN
25AA160B-I/W15K Microchip Technology Inc Check for Price 16K, SPI 2K X 8, 32B PAGE, 1.8V SER EE 25AA160A-I/SN vs 25AA160B-I/W15K
25AA160AT-I/MS Microchip Technology Inc Check for Price 16K SPI, 2K X 8, 16B PAGE, 1.8V SER EE 25AA160A-I/SN vs 25AA160AT-I/MS
25AA160D-I/MNY Microchip Technology Inc Check for Price 16K, 32B PAGE, 1.8V, SER EE 25AA160A-I/SN vs 25AA160D-I/MNY
25AA160C-I/MNY Microchip Technology Inc Check for Price 16K, 16B PAGE, 1.8V SER EE 25AA160A-I/SN vs 25AA160C-I/MNY
equivalents icon

25AA160A-I/SN Related Parts

25AA160A-I/SN Frequently Asked Questions (FAQ)

  • The 25AA160A-I/SN has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.

  • The 25AA160A-I/SN uses a page write buffer to handle page writes. The device can write up to 16 bytes of data in a single page write operation.

  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in a write-protected state, and any attempt to write to the device will be ignored.

  • Yes, the 25AA160A-I/SN can be used in a multi-master SPI bus system. The device has a built-in arbitration mechanism that allows it to operate in a multi-master environment.

  • The maximum clock frequency for the 25AA160A-I/SN is 20 MHz.
