Capacitors / Fixed Capacitors / 2R5TPE470M9
Datasheets
2R5TPE470M9 by:
Panasonic Electronic Components

Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT

Part Details for 2R5TPE470M9 by Panasonic Electronic Components

Results Overview of 2R5TPE470M9 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

2R5TPE470M9 Information

2R5TPE470M9 by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 2R5TPE470M9

Part # Distributor Description Stock Price Buy
DISTI # 87Y6060
Newark Cap, 470Μf, 2.5V, 20%, 2917, Capacitance:470Μf, Voltage Rating:2.5V, Product Range:Poscap Tpe Series, Capacitance Tolerance:± 20%, Manufacturer Size Code:D, Esr:0.009Ohm, Operating Temperature Min:-55°C, Operating Temperature Rohs Compliant: Yes |Panasonic 2R5TPE470M9 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1252
  • 1 $2.2500
  • 10 $1.8800
$1.8800 / $2.2500 Buy Now
DISTI # 98W0359
Newark Tantalum Capacitor, 470Uf, 2.5V, 20%, 2917, Full Reel, Capacitance:470Μf, Capacitance Tolerance:± 20%, Voltage(Dc):2.5V, Manufacturer Size Code:D2E, Esr:0.009Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Length:7.3Mm Rohs Compliant: Yes |Panasonic 2R5TPE470M9 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $1.4700
  • 4,000 $1.3300
  • 6,000 $1.2900
  • 10,000 $1.2700
$1.2700 / $1.4700 Buy Now
DISTI # 2R5TPE470M9
Avnet Americas - Tape and Reel (Alt: 2R5TPE470M9) COO: Indonesia RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 27 Weeks, 0 Days Container: Reel 15000
  • 3,000 $0.8526
  • 6,000 $0.8482
  • 12,000 $0.8439
  • 24,000 $0.8396
  • 48,000 $0.8352
$0.8352 / $0.8526 Buy Now
DISTI # 70323865
RS 470UF SMD SOLID POLYMER TANTALUM CAPACITOR, 2.5 V DC +/-20%, POSCAP SERIES Min Qty: 3000 Package Multiple: 1 Container: Bulk 0
  • 3,000 $2.7800
  • 30,000 $2.6400
  • 150,000 $2.5000
  • 300,000 $2.3600
$2.3600 / $2.7800 RFQ
DISTI # 2R5TPE470M9
TME Capacitor: tantalum-polymer, low ESR, 470uF, 2.5VDC, 3900mA, SMD Min Qty: 1500 0
  • 1,500 $1.3500
$1.3500 RFQ
DISTI # 2R5TPE470M9
Avnet Abacus - Tape and Reel (Alt: 2R5TPE470M9) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 36 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # 2R5TPE470M9
Avnet Asia (Alt: 2R5TPE470M9) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days 0
RFQ
Chip Stock ConductivePolymerTantalumSolidCapacitor,470µF,-55to105¡C 38500
RFQ
LCSC 470uF 2.5V 9m100kHz 20% Tantalum - Polymer Capacitors RoHS 4893
  • 1 $1.2869
  • 10 $1.0166
  • 30 $0.8822
  • 100 $0.7478
  • 500 $0.6674
  • 1,000 $0.6257
$0.6257 / $1.2869 Buy Now
Win Source Electronics Cap Tant Polymer 470uF 2.5VDC D2E CASE 20% (7.3 X 4.3 X 1.8mm) SMD 7343 0.009 Ohm 105°C T/R / Polymer Tantalum Capacitors 470UF 2.5V 2917 35000
  • 125 $0.4010
  • 270 $0.3752
  • 415 $0.3622
  • 595 $0.3364
  • 775 $0.3234
  • 970 $0.3105
$0.3105 / $0.4010 Buy Now

US Tariff Estimator: 2R5TPE470M9 by Panasonic Electronic Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

2R5TPE470M9
Panasonic Electronic Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 2R5TPE470M9

2R5TPE470M9 CAD Models

  • Part Symbol

    schematic symbol

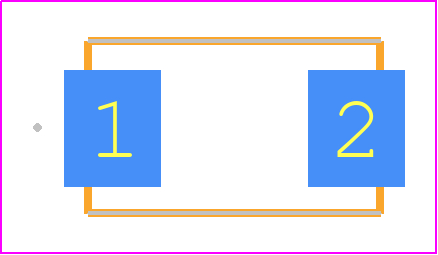

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2R5TPE470M9 Part Data Attributes

Parametric Data
2R5TPE470M9 Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
2R5TPE470M9 Panasonic Electronic Components Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 27 Weeks
Samacsys Manufacturer Panasonic
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 470 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (SOLID POLYMER)
ESR 9 mΩ
Height 1.8 mm
JESD-609 Code e4
Leakage Current 0.1175 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED, 13 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 2.5 V
Ripple Current 3900 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.10
Terminal Finish Palladium/Gold (Pd/Au)
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for 2R5TPE470M9

This table gives cross-reference parts and alternative options found for 2R5TPE470M9. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2R5TPE470M9, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T55Z477M2R5C0025 Vishay Intertechnologies $0.9567 Tantalum Capacitor, Tantalum (solid Polymer), 2R5TPE470M9 vs T55Z477M2R5C0025
T520V477M2R5AHE009 KEMET Corporation $1.0000 Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP 2R5TPE470M9 vs T520V477M2R5AHE009
2R5TPE470M7 Panasonic Electronic Components $2.5886 Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT 2R5TPE470M9 vs 2R5TPE470M7
T520V477M2R5AGE0077280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 2R5TPE470M9 vs T520V477M2R5AGE0077280
T520V477M2R5ANE0097280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 2R5TPE470M9 vs T520V477M2R5ANE0097280
T520V477M2R5AGE006 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 2R5TPE470M9 vs T520V477M2R5AGE006
2R5TPE470M7 SANYO Electric Co Ltd Check for Price CAPACITOR, TANTALUM, SOLID POLYMER, CHIP, ROHS COMPLIANT 2R5TPE470M9 vs 2R5TPE470M7
2R5TPE470MC Panasonic Electronic Components Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT 2R5TPE470M9 vs 2R5TPE470MC
T520V477M2R5ATE0077280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP 2R5TPE470M9 vs T520V477M2R5ATE0077280
T520V477M2R5AHE0077280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP 2R5TPE470M9 vs T520V477M2R5AHE0077280
equivalents icon

2R5TPE470M9 Related Parts

2R5TPE470M9 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 2R5TPE470M9 is 260°C for 10 seconds or less.

  • Yes, the 2R5TPE470M9 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.

  • The derating curve for the 2R5TPE470M9 capacitor can be found in the Panasonic application notes or by contacting their technical support team. It provides guidance on reducing the capacitor's voltage rating based on operating temperature.

  • Yes, the 2R5TPE470M9 capacitor is designed to withstand high-vibration environments, making it suitable for use in automotive, industrial, and other applications where vibration is a concern.

  • The ESR of the 2R5TPE470M9 capacitor is typically around 10-20 mohms, depending on the frequency of operation. This information can be found in the capacitor's datasheet or by contacting Panasonic's technical support team.
