Part Details for 2SB1203S-TL-E by onsemi
Results Overview of 2SB1203S-TL-E by onsemi
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (7 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
2SB1203S-TL-E Information
2SB1203S-TL-E by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2SB1203S-TL-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70465714
|
RS | ON SEMI 2SB1203S-TL-E PNP BIPOLAR TRANSISTOR, 5 A, 50 V, 3-PIN TP-FA Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$1.1200 | RFQ |
|
|
Rochester Electronics | Power Bipolar Transistor, 5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin RoHS: Compliant Status: Obsolete Min Qty: 1 | 13659 |
|
$0.2977 / $0.4802 | Buy Now |
|
|
Flip Electronics | Stock, ship today | 590 |
|
RFQ |
US Tariff Estimator: 2SB1203S-TL-E by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 2SB1203S-TL-E
2SB1203S-TL-E CAD Models
-
Part Symbol
-

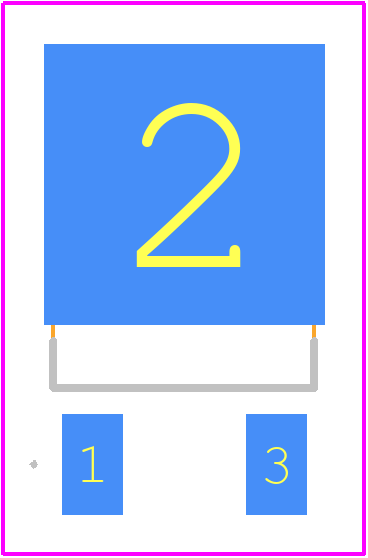

Footprint
-

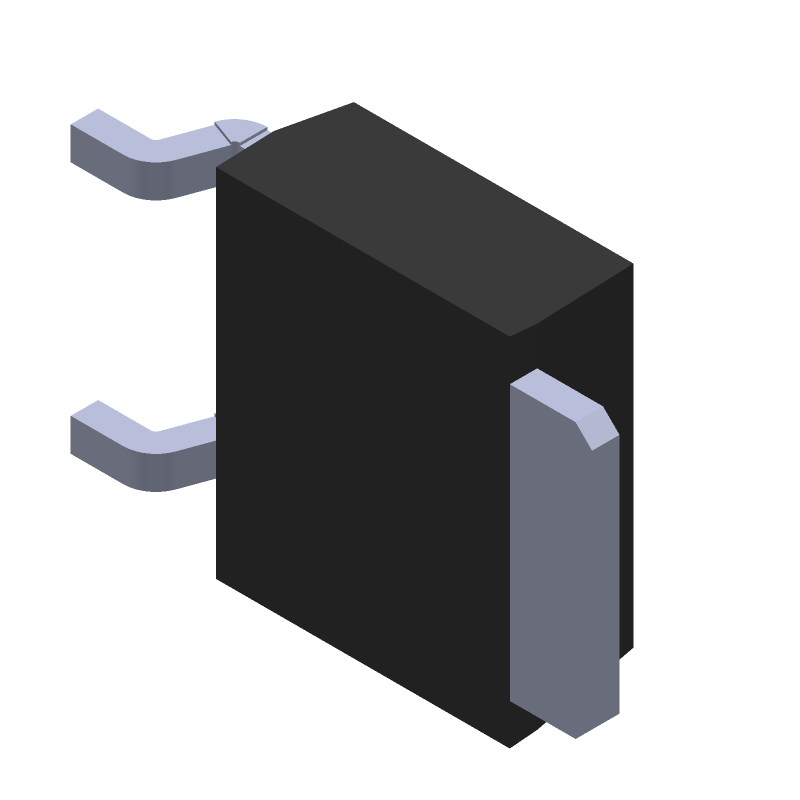

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
2SB1203S-TL-E Part Data Attributes
|
|
2SB1203S-TL-E
onsemi
Buy Now
Datasheet
|
Compare Parts:
2SB1203S-TL-E
onsemi
Bipolar Transistor, -50V, -5A, Low VCE(sat), (PNP)NPN Single TP/TP-FA, DPAK / TP-FA, 700-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DPAK / TP-FA | |
| Package Description | DPAK-3/2 | |
| Pin Count | 3 | |
| Manufacturer Package Code | 369AH | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.75 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 5 A | |
| Collector-Base Capacitance-Max | 40 pF | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 35 | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e6 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 1 W | |
| Power Dissipation-Max (Abs) | 20 W | |
| Surface Mount | YES | |
| Terminal Finish | TIN BISMUTH | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 180 MHz | |
| VCEsat-Max | 0.4 V |
Alternate Parts for 2SB1203S-TL-E
This table gives cross-reference parts and alternative options found for 2SB1203S-TL-E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2SB1203S-TL-E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 2SB1203S-H | onsemi | Check for Price | Bipolar Transistor, -50V, -5A, Low VCE(sat), (PNP)NPN Single TP/TP-FA, DPAK / TP-FA, 500-BLKBG | 2SB1203S-TL-E vs 2SB1203S-H |
| 2SB1203S | SANYO Electric Co Ltd | Check for Price | Small Signal Bipolar Transistor, 5A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon | 2SB1203S-TL-E vs 2SB1203S |
| 2SB1203S | onsemi | Check for Price | TRANSISTOR 5000 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TP, 3 PIN, BIP General Purpose Small Signal | 2SB1203S-TL-E vs 2SB1203S |
| 2SB1203S-TL | SANYO Semiconductor Co Ltd | Check for Price | Small Signal Bipolar Transistor, 5A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TP-FA, 3 PIN | 2SB1203S-TL-E vs 2SB1203S-TL |
| 2SB1203S-E | onsemi | Check for Price | Bipolar Transistor, -50V, -5A, Low VCE(sat), (PNP)NPN Single TP/TP-FA, DPAK / TP-FA, 500-BLKBG | 2SB1203S-TL-E vs 2SB1203S-E |
| 2SB1203S-TL-H | onsemi | Check for Price | Bipolar Transistor, -50V, -5A, Low VCE(sat), (PNP)NPN Single TP/TP-FA, DPAK / TP-FA, 700-REEL | 2SB1203S-TL-E vs 2SB1203S-TL-H |
| 2SB1203-TL-S | onsemi | Check for Price | TRANSISTOR 5000 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TP-FA, 3 PIN, BIP General Purpose Small Signal | 2SB1203S-TL-E vs 2SB1203-TL-S |
2SB1203S-TL-E Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 2SB1203S-TL-E is -40°C to 150°C.
-
To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and minimizing thermal resistance.
-
The maximum allowed voltage for the 2SB1203S-TL-E is 30V, and it's essential to ensure that the voltage rating is not exceeded to prevent damage or failure.
-
To prevent electrostatic discharge (ESD) damage, it's recommended to follow proper handling and storage procedures, such as using ESD-safe materials, grounding straps, and ionizers.
-
The recommended storage conditions for the 2SB1203S-TL-E include a dry, cool environment with minimal humidity, away from direct sunlight and moisture.
