Overview of 2SD1815S-E by onsemi

Distributor Offerings:

Number of FFF Equivalents:

CAD Models:

Number of Functional Equivalents:

Part Data Attributes

Reference Designs:

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Distributor	Stock	Package	QTY Break / Prices
View 2SD1815S-E on Digi-Key	0 Bulk	Bulk
View 2SD1815S-E on Avnet Americas	60165 Partner Stock	Bulk	1,143 $0.3240 1,200 $0.3152 2,300 $0.3065 5,800 $0.2977 12,000 $0.2889 58,000 $0.2802 120,000 $0.2714
View 2SD1815S-E on Newark	0	Bulk
View 2SD1815S-E on Newark	0	Bulk	1,000 $0.3650 2,500 $0.2970 10,000 $0.2870
View 2SD1815S-E on Rochester Electronics	60165		1 $0.3193 25 $0.3129 100 $0.3001 500 $0.2874 1,000 $0.2714
View 2SD1815S-E on Farnell	60165	Each	1,150 $0.3900

Part Details for 2SD1815S-E

2SD1815S-E CAD Models

Part Symbol
Footprint

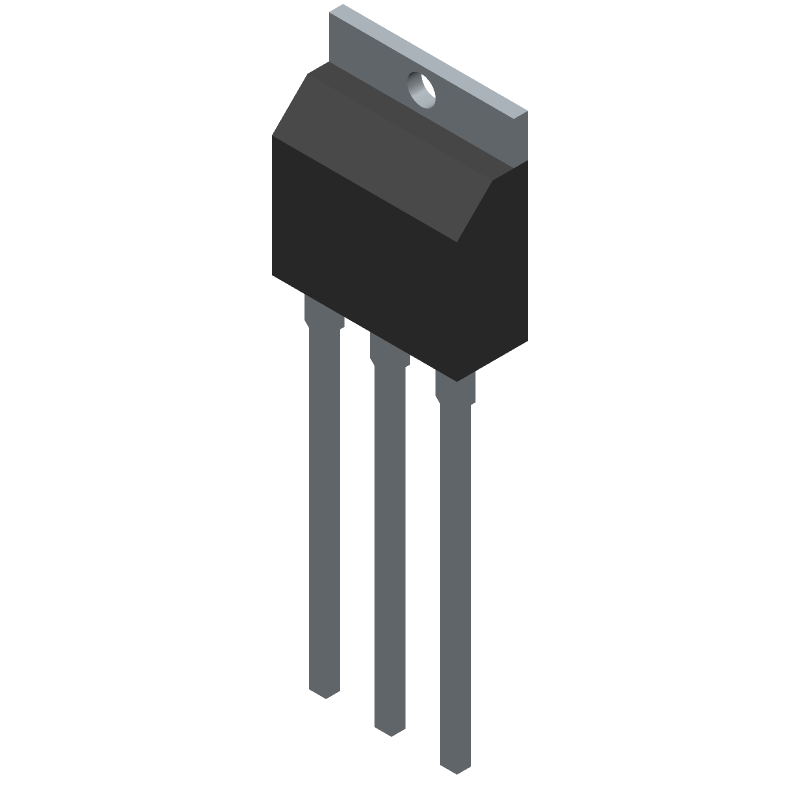

3D Model

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2SD1815S-E Part Data Attributes

Parametric Data

Show differences only	2SD1815S-E onsemi Buy Now Datasheet	Buy Now	Compare Parts: 2SD1815S-E onsemi Bipolar Transistor, 100V, 3A, Low VCE(sat), NPN Single, TP/TP-FA, IPAK / TP, 500-BLKBG

Source Content uid	2SD1815S-E
Pbfree Code	Yes
Part Life Cycle Code	Obsolete
Ihs Manufacturer	ON SEMICONDUCTOR
Pin Count	3
Manufacturer Package Code	369AJ
Reach Compliance Code	not_compliant
ECCN Code	EAR99
Factory Lead Time	4 Weeks
Samacsys Manufacturer	onsemi
Collector Current-Max (IC)	3 A
Configuration	SINGLE
DC Current Gain-Min (hFE)	140
JESD-609 Code	e6
Number of Elements	1
Operating Temperature-Max	150 °C
Polarity/Channel Type	NPN
Power Dissipation-Max (Abs)	20 W
Surface Mount	NO
Terminal Finish	TIN BISMUTH

Alternate Parts for 2SD1815S-E

This table gives cross-reference parts and alternative options found for 2SD1815S-E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2SD1815S-E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number	Description	Manufacturer	Compare
2SD1815S-TL-H Transistors	Bipolar Transistor, 100V, 3A, Low VCE(sat), NPN Single, TP/TP-FA, DPAK / TP-FA, 700-REEL	onsemi	2SD1815S-E vs 2SD1815S-TL-H
2SD1815S-H Transistors	Bipolar Transistor, 100V, 3A, Low VCE(sat), NPN Single, TP/TP-FA, IPAK / TP, 500-BLKBG	onsemi	2SD1815S-E vs 2SD1815S-H
