Connectors / Combination Line Connectors / 3-1437290-7
Datasheets
3-1437290-7 by: TE Connectivity

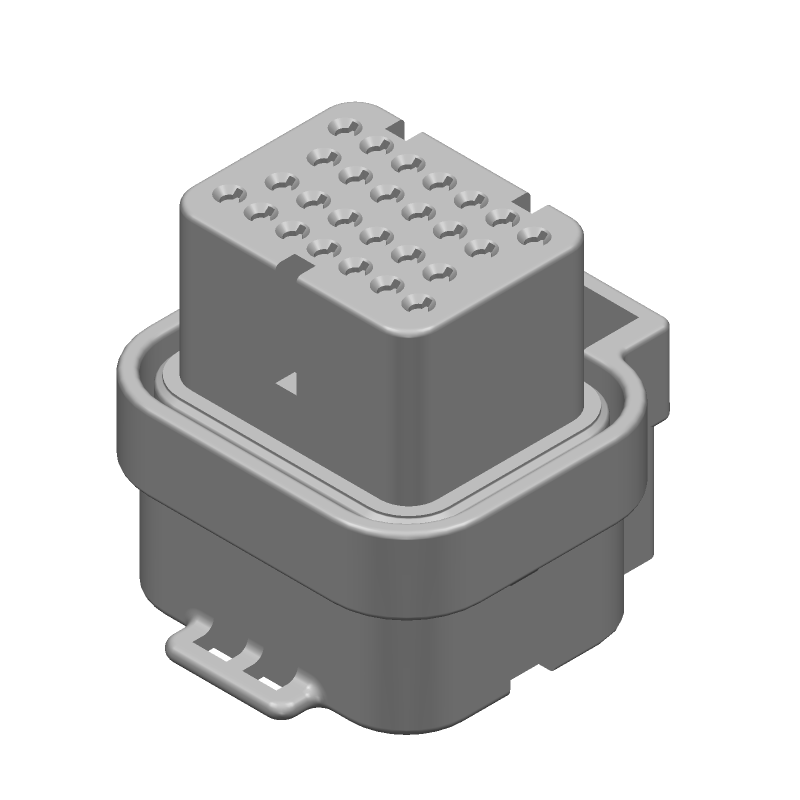

3900113-2621=PLUG HOUSING ASSY

Part Details for 3-1437290-7 by TE Connectivity

Results Overview of 3-1437290-7 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare

3-1437290-7 Information

3-1437290-7 by TE Connectivity is a Combination Line Connector.
Combination Line Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 3-1437290-7

Part # Distributor Description Stock Price Buy
DISTI # 20X0730
Newark Plug Hsg, 4 Rows, 26Way, Skt, Product Range:Super Seal 1.0 Series, Gender:Plug, No. Of Positions:26Ways, Pitch Spacing:1.5Mm, For Use With:Super Seal 1.0Mm Socket Contacts, Svhc:No Svhc (07-Jul-2017), Connector Mounting:Cable Mount, Rohs Compliant: Yes |Te Connectivity 3-1437290-7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 599
  • 1 $12.4300
  • 10 $9.8500
  • 25 $9.4200
  • 50 $9.2800
  • 100 $9.1300
$9.1300 / $12.4300 Buy Now
DISTI # 20X0730
Avnet Americas Conn Housing Sealed Plug 26 POS 3mm Straight Cable Mount Tube - Bulk (Alt: 20X0730) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Bulk 80 Partner Stock
  • 1 $11.5900
  • 10 $9.5200
  • 25 $7.9600
  • 50 $7.8200
  • 100 $7.6800
$7.6800 / $11.5900 Buy Now
DISTI # 3-1437290-7
Avnet Americas Conn Housing Sealed Plug 26 POS 3mm Straight Cable Mount Tube - Rail/Tube (Alt: 3-1437290-7) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 16 Weeks, 2 Days Container: Tube 8248 Factory Stock
  • 500 $6.2163
  • 1,000 $5.5604
  • 2,000 $5.5253
  • 3,000 $5.4906
  • 4,000 $5.4512
$5.4512 / $6.2163 Buy Now
DISTI # AMP3-1437290-7
Heilind Electronics 3900113-2621=PLUG HOUSING ASSY Americas - 22299 in Stock
15000 On Order
  • 20 $7.1882
  • 40 $6.0472
  • 80 $5.8612
  • 140 $5.7724
  • 280 $5.6862
$5.6862 / $7.1882 Buy Now
Bristol Electronics   1330
RFQ
DISTI # 3-1437290-7
TME connector 3900113-2621=PLUG HOUSING ASSY Min Qty: 1 345
  • 1 $7.8100
  • 10 $6.4900
  • 20 $6.2700
  • 500 $6.2000
$6.2000 / $7.8100 Buy Now
DISTI # AMP3-1437290-7
Interstate Connecting Components 3900113-2621=PLUG HOUSING ASSY 3716
2500 On Order
  • 20 $7.1882
  • 40 $6.0472
  • 80 $5.8612
  • 140 $5.7724
  • 280 $5.6862
$5.6862 / $7.1882 Buy Now
Powell Electronics Connectors Min Qty: 1 28
  • 1 $25.7416
  • 500 $18.0191
  • 1,000 $16.2172
  • 5,000 $14.4153
  • 10,000 $13.3342
$13.3342 / $25.7416 Buy Now
DISTI # 3-1437290-7
Richardson RFPD INTERCONNECT ACCESSORY RoHS: Compliant Min Qty: 1 0
RFQ
Chip 1 Exchange INSTOCK 9059
RFQ
DISTI # 3-1437290-7
Avnet Abacus Conn Housing Sealed Plug 26 POS 3mm Straight Cable Mount Tube (Alt: 3-1437290-7) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 9 Weeks, 0 Days Abacus - 13080
Buy Now
DISTI # 3-1437290-7
Avnet Abacus Conn Housing Sealed Plug 26 POS 3mm Straight Cable Mount Tube (Alt: 3-1437290-7) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 11 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 3-1437290-7
Chip One Stop Interconnects RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 562
  • 1 $9.7100
  • 10 $8.3800
  • 50 $4.2000
  • 100 $3.9400
  • 200 $3.9000
  • 500 $3.8800
$3.8800 / $9.7100 Buy Now
LCSC 3mm 4 Without a buckle P3mm Housings (Wire To Board / Wire To Wire ) ROHS 96
  • 1 $7.2445
  • 10 $6.2470
  • 40 $5.4731
  • 100 $4.8749
  • 500 $4.5974
  • 1,000 $4.4741
$4.4741 / $7.2445 Buy Now
Neutron USA AMP SUPERSEAL Series 3mm Pitch 26 Way 4Row Male Straight PCB Housing 50
  • 1 $41.4800
$41.4800 Buy Now
New Advantage Corporation AMP SUPERSEAL 26 Position 4 Row Single Latch Lock Plug Housing Assembly RoHS: Compliant Min Qty: 1 Package Multiple: 20 740
  • 20 $7.4800
$7.4800 Buy Now
Vyrian Connectors 6298
RFQ

Part Details for 3-1437290-7

3-1437290-7 Part Data Attributes

Parametric Data
3-1437290-7 TE Connectivity
Buy Now Datasheet
Compare Parts:
3-1437290-7 TE Connectivity 3900113-2621=PLUG HOUSING ASSY
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Factory Lead Time 16 Weeks, 3 Days
Samacsys Manufacturer TE Connectivity
Body Breadth 1.268 inch
Body Depth 1.36 inch
Body Length 1.266 inch
Body/Shell Style PLUG
Connector Type COMBINATION LINE CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance NO
Mains Connector Rating 115/230VAC
Mating Contact Row Spacing 0.118 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Type CABLE
Number of Ports 1
Number of Rows Loaded 4
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
Panel Mount NO
Polarization Key POLARIZED
Rated Voltage 250 V
Reference Standard UL
Terminal Pitch 3 mm
Termination Type IDC
Total Number of Contacts 26
UL Flammability Code 94V-2

3-1437290-7 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).

  • Yes, the 3-1437290-7 connector is designed to withstand high-vibration environments and meets the IEC 61373 Category 1 standard for vibration resistance.

  • Yes, the 3-1437290-7 connector is rated for outdoor use and meets the IP67 standard for ingress protection against dust and water.

  • The maximum operating temperature for the 3-1437290-7 connector is 125°C (257°F).

  • No, the 3-1437290-7 connector is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may not provide a reliable connection.
